|Place of Origin:||Guangdong, China (Mainland)|
|Certification:||CE, PSE, ROHS, MSDS, FCC etc|
|Model Number:||518Wh portable lithium battery|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Standard export carton, wooden case, pallet etc.|
|Delivery Time:||5-7 days for samples, 20-30 days for bulk order|
|Payment Terms:||T/T, Western Union, Paypal|
|Supply Ability:||60,000kWh per month|
|Features:||500w Output, Customized Color, Powerful||Weight:||6.8kgs|
|Battery Application:||Emergency Backup, Electricity Shut-down||Battery Voltage:||14.8V|
|Battery Capacity:||35Ah||Warranty:||1 Year|
35Ah Portable Lithium Battery,
500W Portable Lithium Battery,
518Wh Rechargeable Lithium Battery

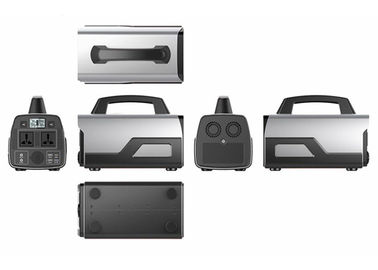

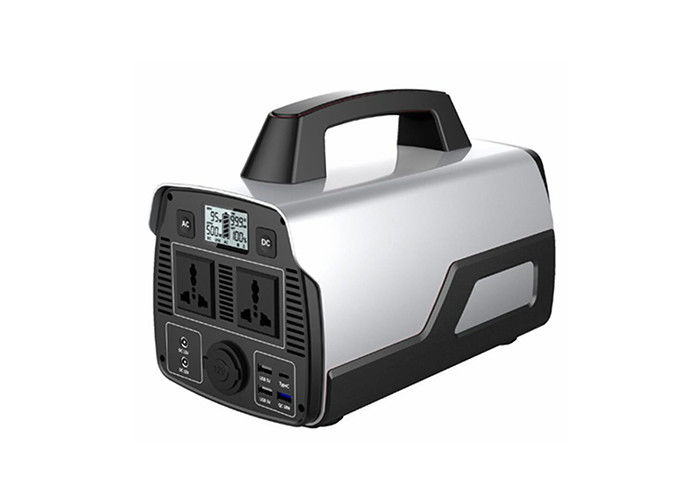

Emergency backup Portable lithium battery 518Wh customized color 500W output
1. Description of 518wh portable lithium battery
This unit will provide portable power with a range of AC / DC / USB outputs, to keep your smart phones, tablets, lights, fans&TV or other electrical devices charged & operating. Built with 518Wh lithium ion battery and 500w inverter, it is powerful for emergency backup and daily appliances.
On the LCD displayer, customer can realtime monitor the input power, output power, battery capacity, left working time. It indicates the DC mode, AD mode, USB mode, fan mode and even error mode.
2. Error Indication Description:
E1/E2:DC Output Over-Current
E3:DC Output Short-Circuit
E5:AC Inverter Board Disconnected
E6:AC Output Over-load Protection
E7:AC Output Short-Circuit Protection
E8/ E9:AC Inverter Board Over-Temperature
E10:AC Inverter Board Input Voltage Too Low
E11:AC Inverter Board Input Voltage Too High
E12:AC Output Voltage Too High
E13:AC Inverter Board Error
3. Corresponding Solutions When Errors Occur:
E1/E2: The total current of the using appliances exceeds the allowed maximum current, please remove some of the appliances to restart.
E3: DC output is short circuit, please restart the output after troubleshooting.
E5: When this error message appears, please contact the factory for processing.
E6: The power of the current appliances exceeds the maximum available power of this unit, please use the appliances within the allowed power range.
E7: AC output is short-circuited, please restart AC output after troubleshooting.
E8/E9: Please wait for the temperature to drop or reduce the use of load power.
E10: Please charge the unit to avoid over-discharging of the battery.
E11: Detected battery voltage is too high, please contact the factory for processing.
E12: Detected AC output voltage is too high, please contact the factory for processing.
E13: When this error appears, please contact the factory for processing.
4. PRODUCT NOTES
1. This unit has built-in lithium batteries with no memory effect. Therefore there is no need to activate the batteries by charging and discharging.
2. In order to extend the life of the unit (lithium battery), please charge it regularly and avoid deep discharge.
3. In a low-temperature environment, the battery activity is reduced, and discharge capacity is reduced exponentially, please use the unit in an appropriate environment. Charging and discharging can increase the temperature of the unit to keep battery capacity at its highest.
4. Use this unit in the range of +5℃～+30℃, to obtain the optimal charging capacity.
5. Solar panel is compatible with 18V-22V voltage, and to achieve ideal charging efficiency, we recommend you to use 20V-22V solar panels.
6. The life-cycle of battery charging and discharging is >500 times. After 500 times, the capacity will be significantly reduced, and will wear out eventually.
5. Specification of 518Wh portable lithium battery(@Battery initial Temp25±5℃)
|Battery||Rechargeable lithium ion Battery|
|Battery Capacity||14.8V 35Ah|
|Product Weight||about 6.8Kg|
|Battery Pack Input Recharging||
AC Adapter: DC19V/5A
Solar Panel: MPPT, 18V-24V/5A (Max)
|Fully Charged Time for battery||DC19V/5A: 7-8 hours|
|DC Output||2 x DC5521: 12-16.8V/10A (14.5A Max)|
1×USB-A: QC3.0, 5-12V/18W
1×TYPE-C: QC3.0, 5-12V/18W
Pure Sine Wave Output:
AC Voltage: 100/110/120/220/230/240V
Output Frequency: 50/60Hz
☆For actual voltage and frequency, please refer to the sticker at the bottom of the unit.
|Cigarette Lighter Output||1*Cigarette Lighter Output: 12~16.8V/10A (14.5A Max)|
|Power Indicator||LED Display|
|Operating Temperature for li ion battery||-10℃～ +40℃|
|Battery cycle life||＞500 times|
1×Portable Power Supply 1×AC Adapter
