|Place of Origin:||Guangdong, China (Mainland)|
|Certification:||FCC, ROHS, UN38.3, MSDS etc|
|Model Number:||PAC battery 48v 100Ah|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Standard export carton, wooden case, pallet etc.|
|Delivery Time:||15-20 days for samples, 20-30 days for bulk order|
|Payment Terms:||T/T, Western Union, Paypal|
|Supply Ability:||60,000kWh per month|
|Typical Energy:||4800Wh||Connector Type:||M8|
|Typical Capacity:||100Ah||Battery Application:||Data Center, Base Station, Server Center|
|Battery Protection:||Smart BMS With Communication||Capacity Display:||LCD Displayer|
|Second Protection:||Air Switch||Cell Type:||Softpack 100Ah LiFePO4 Cell|
4800Wh Rechargeable LiFePO4 Battery,
100Ah Rechargeable LiFePO4 Battery,
0.2C Lifepo4 Lithium Battery

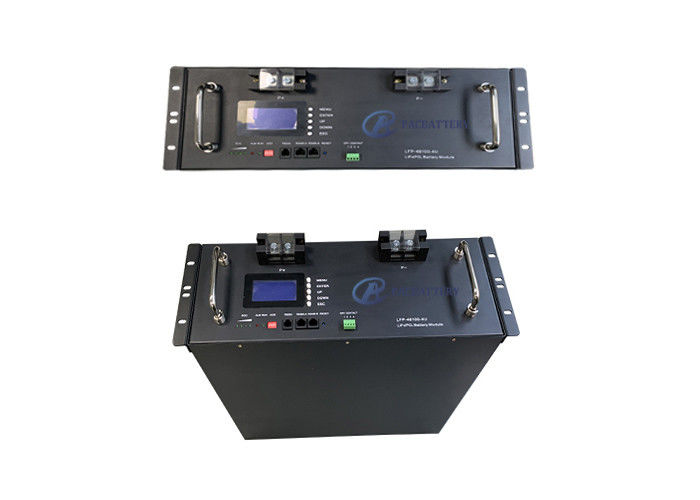

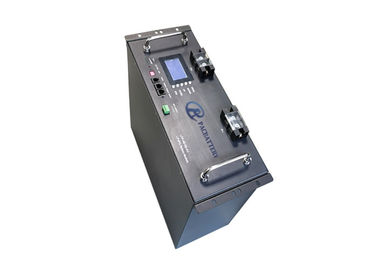

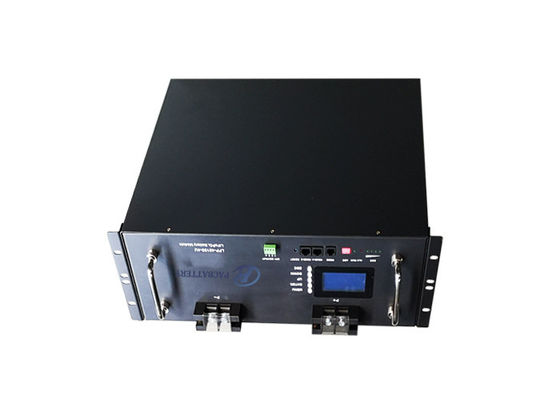

48V LiFePO4 rechargeable battery 100Ah with LCD display for data center
1. 48V 100Ah LiFePO4 rechargeable battery Instruction
The 48v 100Ah lithium battery is supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single softpack cell during battery charge & discharge, to prevent the 48V 100Ah battery pack from overcharge, over discharge, short circuit, over current. The BMS helps to ensure safe and accurate running of the lithium battery pack. Except BMS, the battery has dual protection of Air switch in case of short circuit. The LCD displayer on battery case indicate the battery capacity, running status and the battery also has alarm functions.
Besides, this 4800Wh battery pack is using softpack cell, which has higher energy density and the battery pack is in 4U size.
2. Features of 48V 100Ah LiFePO4 battery:
3. 15S2P 48V 100Ah data center battery Specification(@Battery initial Temp25±5℃)
|1.1||Description||48V LiFePO4 rechargeable battery 100Ah with LCD display for data center|
|1.2||Cell Type||softpack 50Ah LiFePO4 cell||15S2P|
|1.5||End of Charge Voltage||54V|
|1.7||Charging time||5-6 Hours|
|1.8||Over-Charge Voltage Protection cell||3.6V|
|1.9||Max continuous charge current||50A|
|2.0||Maximum Continuous Discharging Current||100A|
|2.1||Over-discharge Voltage Protection cell||2.5V|
|2.2||Over-Current Discharge Protection||200A|
|2.3||Protection functions||overcharge, overdischarge, over current, short circuit, over temperature, over load|
|2.4||Dual protection||Air switch|
|2.6||Operation Temperature Range||Charge 0~60 C, Discharge -20~60 C|
|2.7||Storage Temperature & Humidity Range||Less than 1 month:-20℃～45℃,45%RH～75％RH|
|Less than 3 months:-10℃～35℃,45%RH～75％RH|
Recommended storage environment:
Long time storage:
If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months.
4. Advantage of PAC Technology company:
We offer quick response to your inquiry and reliable battery quality based on your requirements.
We provide not only professional solutions for your product, but also full technical support after sales.
So if you have any inquiries, please feel free to contact us.
5. 48V 100Ah rechargeable battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
6. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
Contact Person: Ada Wang
Tel: 0086 13652343280
