|Place of Origin:||Guangdong, China (Mainland)|
|Certification:||IEC62619, MSDS, UN38.3 etc|
|Model Number:||Tesla Powerwall Replacement 5KWH, 7KWH, 10KWH|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Standard export carton, wooden case, pallet etc.|
|Delivery Time:||15-20 days for samples, 20-30 days for bulk order|
|Payment Terms:||T/T, Western Union, Paypal|
|Supply Ability:||60,000kWh per month|
|Features:||Wall Type||Energy:||5KWH, 7KWH, 10KWH|
|Housing Material:||Metal Case||Battery Application:||Tesla Powerwall Replacement|
|Battery Increase:||15pcs In Parallel||Nominal Voltage:||48V/51.2V|
|Design:||With LCD And LED Indicators||Warranty:||10 Years|
7KWH PAC Solar Wall Battery,
48V PAC Solar Wall Battery,
Tesla Powerwall Lithium Battery

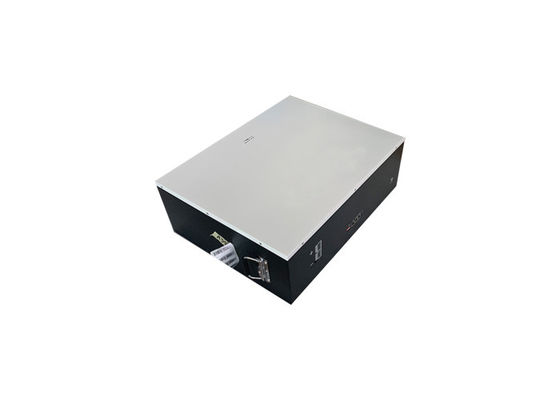

Tesla Powerwall Replacement PAC Solar wall 48V 5KWH, 7KWH, 10KWH
Tesla Powerwall Replacement : it Voltronic, Sol-Ark, Schneider, outback
2. Specification of 10kwh Power Wall
|Electrical Characteristics||Nominal Voltage||48V/51.2V|
|Cycle Life||>6000 Cycles @ 0.2C Charge/Discharge|
|Months Self Discharge||≤3% per month at 25℃|
|Standard Charge||Charge Voltage||58.4±0.2V|
|Charge Mode(CC/CV)||At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then, changed continuously with constant voltage of 58.4V until the current was not more than 0.02C.|
|Standard Discharge||Discharge Current||20A|
|Max. Continuous Current||100A|
|Disxcharge Cut-off Voltage||40-42.6V|
|Environmental||Charge Temperature||0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity|
|Disxcharge Temperature||-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity|
|Storage Temperature||0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity|
|Water Dust Resistance||IP54|
|Mechanical||Cell & Method||16S4P|
|Communication interface||RS485, RS232|
3. Before connecting of Tesla Powerwall Replacement
4. Parallel use of 48V Solar Battery Storage
When the battery needs to be used in parallel, the maximum connection is 10units, but we recommend to use 2-4 units according to application. The application needs power and communication connections as below, choose suitable accessories.
5. Tesla Solar Battery Storage Replacement connection
Let’s take 2 batteries for example, use an additional junction box (not included in the standard pack) to combine the power flow of both batteries:
6. Communication connection of 10kWh wall type lithium battery
There needs to be cascade communication with master level and slave level settings. The master level and slave level has different address.
7. Power Wall Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
8. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
