|Place of Origin:||Guangdong, China (Mainland)|
|Certification:||IEC62619, MSDS, UN38.3 etc|
|Model Number:||5KWH, 7KWH, 10KWH|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Standard export carton, wooden case, pallet etc.|
|Delivery Time:||1 days for samples, 20-30 days for bulk order|
|Payment Terms:||T/T, Western Union, Paypal|
|Supply Ability:||60,000kWh per month|
|Features:||Wall Type/Wheels||Energy:||5KWH, 7KWH, 10KWH|
|Housing Material:||Metal Case||Battery Application:||Solar Power Battery Storage|
|Nominal Voltage:||48V/51.2V||Design:||With LCD And LED Indicators|
10KWH Solar Battery Power Wall,
51.2V Solar Battery Power Wall,
UL1973 Metal Power Wall

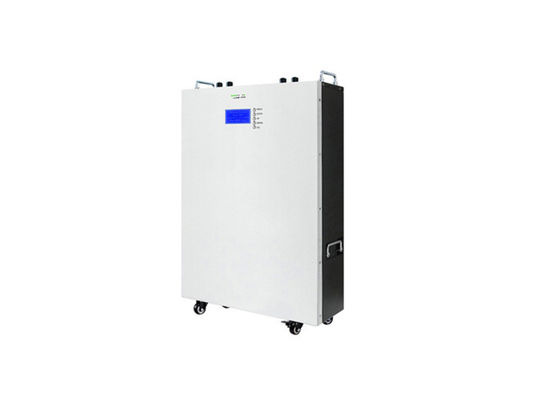

10KWH Power Wall with Wheels
Our main advantages are as follows:
1. Quick delivery lead time: Production is very fast, the fastest lead time can be 5 days.
2. The highest level quality of cell: We use electric vehicle grade cells with the best performance and stability.
3. The most advanced welding technology: We use the advanced laser welding technology, which is the same level as the automobile assembly technology, so the battery performance is more stable.
Please refer to our cell assembly process video attached. You can compare it with the technology of your current battery.
4. UL applied: Our battery cell has passed the UL safety standard of electric vehicle level: UL1973/UL2480
5. Can communicate with most inverters: our batteries can communicate with inverters of brand Sol-ark, Goodwe, Growatt, Infinisolar, Luxpower, Deye, Victron, EAST, Sermatec, Sofar, Solax, Kstar, Solis, Sungrow, etc and we are still debugging with more inverters.
2. Specification of 10kwh Power Wall
|Electrical Characteristics||Nominal Voltage||51.2V|
|Cycle Life||>6000 Cycles @ 0.2C Charge/Discharge|
|Months Self Discharge||≤3% per month at 25℃|
|Standard Charge||Charge Voltage||58.4±0.2V|
|Charge Mode(CC/CV)||At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then, changed continuously with constant voltage of 58.4V until the current was not more than 0.02C.|
|Standard Discharge||Discharge Current||20A|
|Max. Continuous Current||100A|
|Disxcharge Cut-off Voltage||40-42.6V|
|Environmental||Charge Temperature||0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity|
|Disxcharge Temperature||-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity|
|Storage Temperature||0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity|
|Water Dust Resistance||IP54|
|Mechanical||Cell & Method||16S4P|
|Communication interface||RS485, RS232|
3. Before connecting of 10kWh commercial energy storage battery
4. Parallel use of 10kwh power wall
When the battery needs to be used in parallel, the maximum connection is 10units, but we recommend to use 2-4 units according to application. The application needs power and communication connections as below, choose suitable accessories.
5. Power wall connection
Let’s take 2 batteries for example, use an additional junction box (not included in the standard pack) to combine the power flow of both batteries:
6. Communication connection of 10kWh wall type lithium battery
There needs to be cascade communication with master level and slave level settings. The master level and slave level has different address.
7. Power Wall Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
8. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
