| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/ODM |
| Certification: | IEC62133, UN38.3, MSDS, CE, etc |
| Model Number: | 12.8V 66Ah |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | White inner box, standard export carton, wooden case, pallet. |
| Delivery Time: | 15-20 days for samples, 20-25 days for mass production |
| Payment Terms: | T/T |
| Supply Ability: | 2,000pcs/day |
| Type: | Deep Cycle LiFePO4 Battery | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Nominal Capacity: | 66Ah | Connector: | Anderson PP30, M8 |
| Application: | SLA Replacement, TV, CCTV | Protection: | Built-in PCM |
| Standard Discharge Current: | 0.2C | Standard Charge Current: | 0.2C |
| Cycle: | 2000 Times | Warranty: | 1 Year |

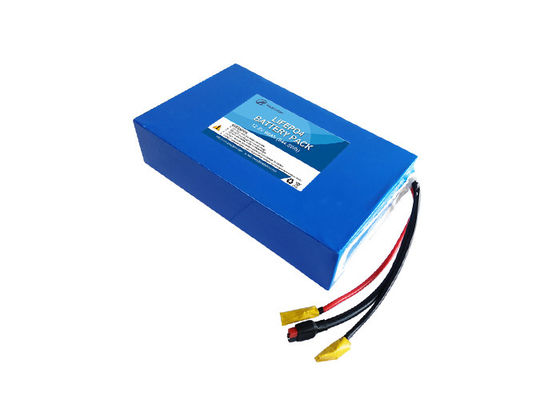

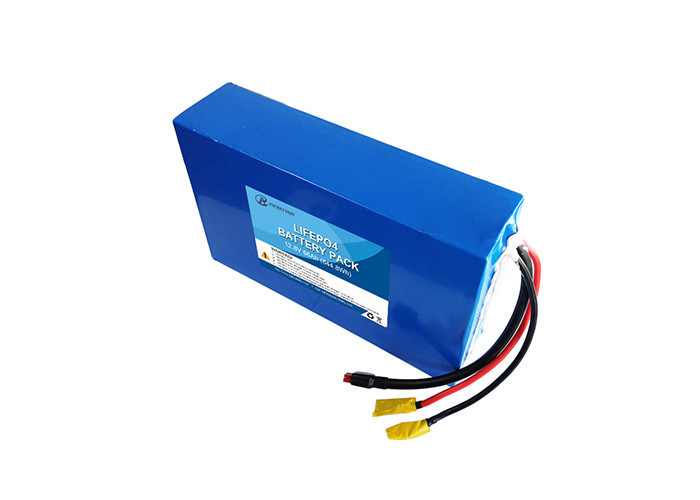

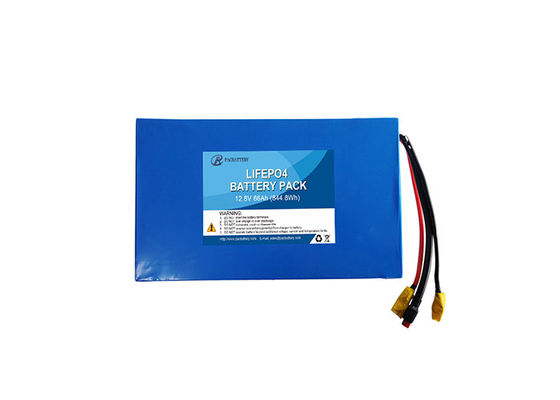

Deep cycle LiFePO4 Battery pack 12.8v 66Ah with Anderson PP30 connector
1. Features of 12.8v 66Ah deep cycle LiFePO4 battery:
2.Specification of 12V 66Ah Deep Cycle Battery:
| No. | Item | General Parameter |
| 1.1 | Description | Deep cycle LiFePO4 Battery pack 12.8v 66Ah with Anderson PP30 connector |
| 1.2 | Battery Type | long lifespan lifepo4 battery |
| 1.3 | Typical Capacity | 66Ah |
| 1.4 | Typical Voltage | 12.8V |
| 1.5 | End of Charge Voltage | 14.6V |
| 1.6 | Charge Current | 0.2C |
| 1.7 | Charging time | 5-6 Hours |
| 1.8 | Over-Charge Voltage Protection cell | 3.65V |
| 1.9 | Max continuous charge current | 30A |
| 2.0 | Maximum Continuous Discharging Current | 66A |
| 2.1 | Over-discharge Voltage Protection cell | 2.5V |
| 2.2 | Over-Current Discharge Protection | 120A |
| 2.3 | Short circuit protection | With protection |
| 2.4 | Dimension | 300*200*75mm |
| 2.5 | Weight | 6.5kgs |
| 2.6 | Operation Temperature Range | Charge 0~55 C, Discharge -10~60 C |
3. Application of 12v deep cycle 66Ah battery:
4. PAC Company provides Battery Packs for:
> Wind-Solar Energy Storage system > Solar street lights > Off-grid energy storage
> Household energy storage > Telecom backup system > Mobile base stations
> Emergency backup energy sources > Uninterruptible power system > Grid load shifters
> Electric Golf Car > Electric vehicles > Electric motorcycles
> Electric forklifts > Electric boats, etc...
5. Measurement Apparatus of 12v lifepo4 battery pack
(1) Dimension Measuring Instrument
The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.01mm.
(2)Voltmeter
Standard class specified in the national standard or more sensitive class having inner impedance not less than 10 KΩ/V.
(3)Ammeter
Standard class specified in the national standard or more sensitive class. Total external resistance including ammeter and wire is less than 0.01Ω.
(4)Impedance Meter
Impedance shall be measured by a sinusoidal alternating current method(AC 1kHz LCR meter).
7. PAC Battery Advantages:
We are reliable and professional rechargeable battery manufacturer. We have R&D team.
*Abundant products
Professional manufacturer of li-ion, Li-polymer, Lifepo4 rechargeable batteries. Also battery packs, portable electric powers, other accessories consumer and industrial applications.
*Best service
1.Provide OEM service, customized design is available.
2.Service on time, response your email within 24 hours.
3.Delivery on time.
4.Trial order or sample order is available.
24 hours customer service, waiting for your inquiry!
