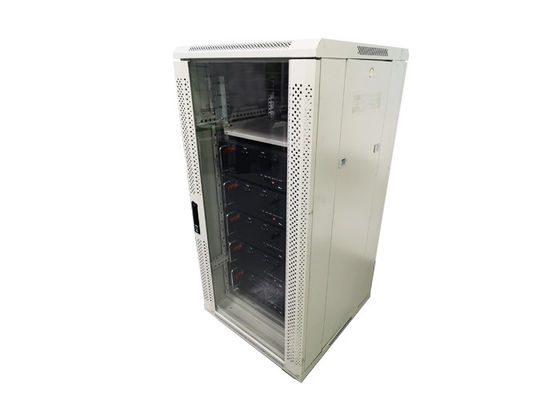

48v Telecom battery systems

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	OEM/PAC
Certification:	ISO9001, ISO14001, FCC, CE, etc.
Model Number:	48v 250Ah

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Standard export carton, wooden case, pallet.
Delivery Time:	4weeks for samples; 6~8weeks for mass production
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	3Gwh per year

Contact Now

Detailed Product Description

Typical Voltage:	48V	Typical Capacity:	250Ah
Battery Combination:	16S1P	Weight:	About 135kgs
Battery Application:	Telecom Base Station, Data Center	Standard Discharge Current:	0.2C
Communication:	CANBus, RS485, RS232, Modbus	Standard Charge Current:	0.2C
High Light:	lithium ion battery for telecom application , long life lithium battery

48v Telecom lithium battery 250Ah work with inverter 5 modules in parallel

1. Quick Detail of 48v 250Ah Telecom battery:

Prismatic 50Ah LiFePO4 cells inside
Compact in size and light in weight
BMS manages to each cell for high reliability
Each module connected in parallel to get 250Ah capacity.
Extra long cycle life - 5 times life of lead acid battery and 2 times of NiMH battery
Extremely safe: No explosion, no fire under collision, over charge or short circuit

2. Features of lifepo4 battery pack:

1)High energy density, 170mAh/g
2)Light weight, about 1/3 the weight of lead-acid batteries
3)Environment-frendly, green battery: do not contain any heavy metal, rare metal, non-toxic, no pollution, accord with European ROHS standard, it is a green battery.
4)superior in safety: non-explosive in short circuit, over charged, outside damage etc.
5)No memory effect: can charge and discharge in any condition, no need to completely discharged or charged, do not effect it's quality.
6)Long cycle life: 2000 times cycles life (1C, ≥80% capacity) which is 7 times of lead acid battery
7)low self discharge : ≤3% of norminal capacity /month.

3. 12kwh LiFePO4 battery system Application

Solar ESS
Residential ESS
UPS power battery
Data center Backup system
Telecom 5G base station backup system
Smart hybrid on-off grid solar system
Smart AC-couple solar system
Smart hybrid off grid solar system

48v Telecom battery systems 0
3. 48V 250Ah LiFePO4 Telecom battery Specification(@Battery initial Temp25±5℃)

No.	Item	General Parameter	Remark
1.1	Description	48v Telecom lithium battery 250Ah work with inverter 5 modules in parallel
1.2	Cell Type	prismatic LiFePO4 battery with 50Ah capacity
1.3	Typical Capacity	250Ah
1.4	Typical Voltage	48V
1.5	Typical power	12kWh
1.6	Communication	It has CANbus and RS485 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current, environment temperature, and charging/discharging current.
1.7	Battery combination	15S5P
1.8	Charging voltage	54.75V
1.9	End voltage	30~37.5V
2.0	Standard charge current	50A
2.1	Internal Impedance	≤200mΩ
2.2	Max. continuous charge current	125A
2.3	Standard discharge current	50A
2.4	Max. continuous discharge current	250A
2.5	Cycle life	＞2000 times
2.6	Weight	135kgs
2.7	Dimension	customized
2.8	Operation Temperature Range	Charge 0~45℃, Discharge -20~55℃
2.9	Storage Temperature & Humidity Range	Less than 1 month:-20℃～45℃,45%RH～75％RH
		Less than 3 months:-10℃～35℃,45%RH～75％RH
		Recommended storage environment: 15℃～35℃,45%RH～75％RH
3.0	Long time storage: If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months.

We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!

4. BMS specification of LiFePO4 battery 48v 250Ah

The BMS is designed for 15/16 series lithium battery.

The BMS have all functions which are:

overcharge detection function
over discharge detection function
over current detection function
short detection function
Temperature detection function
balance function
communicate function
Alarm function
Total capacity function
Storage history function

5. Case Structure of 12kWh 48v 250Ah battery

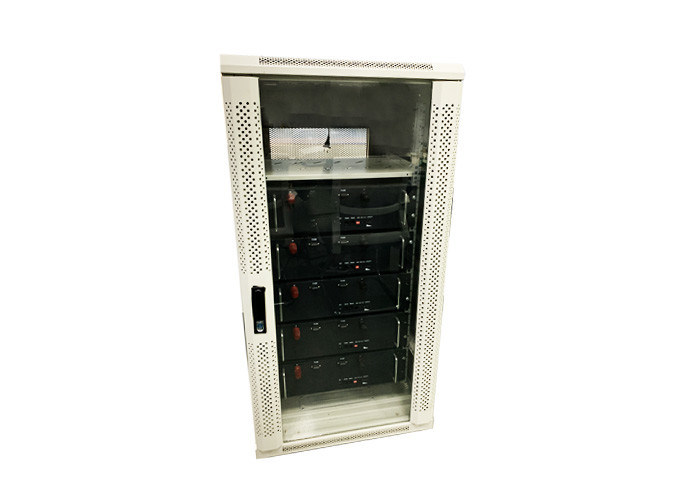

48v Telecom battery systems 1

No.	Description	Silk-screen Remark
1	connector	INPUT P+	Output terminal
2	connector	INPUT P-	Output terminal
3	LCD screen	LCD
4	CAN port	CAN
5	connector	OUTPUT P+
6	switch	ON/OFF
7	connector	OUTPUT P-	Set the address
8	Handle
9	Bracket

6. Delivery of 48v telecom batteries with inverter

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

48v Telecom battery systems 2

7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.

PAC Battery provides 24 hours customer service. Waiting for your inquiry!
