Lithium LiFePO4 Data Center Batteries 75kwh 750v 100ah Super High Voltage

Lithium LiFePO4 Data Center Batteries 75kwh 750v 100ah Super High Voltage

Lithium LiFePO4 Data Center Batteries 75kwh 750v 100ah Super High Voltage
Lithium LiFePO4 Data Center Batteries 75kwh 750v 100ah Super High Voltage
Lithium LiFePO4 Data Center Batteries 75kwh 750v 100ah Super High Voltage
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: UL, UN38.3, MSDS, ISO9001, ISO14001 etc.
Model Number: High Voltage Large battery 750V 100Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet.
Delivery Time: 4weeks for samples; 6~8weeks for mass production
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3Gwh per year
Contact Now
Detailed Product Description
Features: Super High Voltage Battery 750V Typical Voltage: 750V
Battery Type: Lithium LiFePO4 Battery Typical Capacity: 100Ah
Module Quantity: 16pcs 48V Battery Modules In Series Weight: About 850kgs
Battery Application: Data Center, Commercial ESS, 5G Base Station Battery Protection: Smart BMS
Keywords: High Voltage Lithium Battery, Long Lifespan LFP Battery, Super Large Battery 75kwh Standard Discharge Current: 0.2C
Communication: CANBus, RS485, RS232, Modbus Standard Charge Current: 0.2C
Logo: Can Be Customized On LiFePo4 Battery Module Battery Cycle: Up To 6000 Times
Warranty: Up To 10 Years Dimension: Customized
High Light:

high voltage lithium ion battery

,

commercial solar battery storage

Super high voltage Large Battery System 75kwh lithium LiFePO4 battery 750V 100Ah backup for data center

1. Battery System Instruction

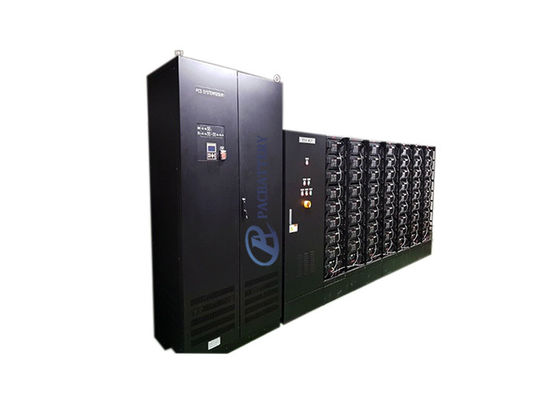

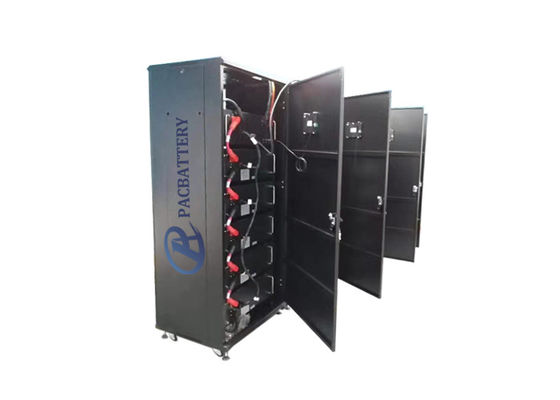

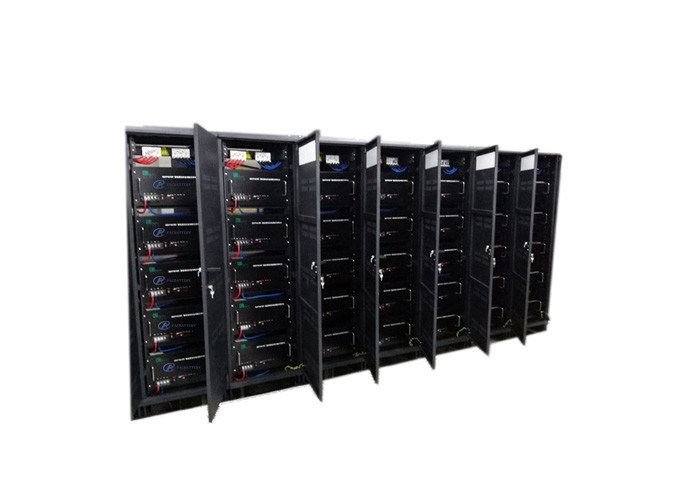

Supoer high voltage Large Battery system 75kWh is high power DC application backup power supply Battery manufactured by PAC Technology Co.,Ltd, using prismatic long lifespan lithium iron phosphate battery cell, 234S1P assembled, to provide 75kW emergency standby power. 750V 100ah system consists of 16 modules of 48V 100Ah batteries and 3 standard 19”cabinets, connected in series to form super high voltage battery system.



2. 75kwh LiFePO4 battery system Application

Long lifespan Lifepo4 Battery, widely use for

  • Solar ESS
  • Residential ESS
  • UPS power battery
  • Data center Backup system
  • Telecom 5G base station backup system
  • Smart hybrid on-off grid solar system
  • Smart AC-couple solar system
  • Smart hybrid off grid solar system

Lithium LiFePO4 Data Center Batteries 75kwh 750v 100ah Super High Voltage 0
3. 750V 100Ah 234S1P Lithium LiFePO4 Battery Pack Specification(@Battery initial Temp25±5)

No. Item General Parameter Remark
1.1 Description

Super high voltage Large Battery System 75kwh lithium LiFePO4 battery 750V 100Ah backup for data center


1.2 Cell Type prismatic long lifespanLiFePO4 battery cell
1.3 Typical Capacity 100Ah
1.4 Typical Voltage 750V
1.5 Typical power 75kWh
1.6 Communication It has CANbus and RS485 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage,
current, environment temperature, and charging/discharging current.

1.7 Battery combination 234S1P
1.8 Charging voltage 854.1V
1.9 End voltage 468~585V
2.0 Standard charge current 20A
2.1 Internal Impedance ≤200mΩ
2.2 Max. continuous charge current 100A
2.3 Standard discharge current 20A
2.4 Max. continuous discharge current 100A
2.5 Cycle life >2000 times
2.6 Weight 850kgs
2.7 Dimension customized
2.8 Operation Temperature Range Charge 0~45℃, Discharge -20~55℃
2.9 Storage Temperature & Humidity Range Less than 1 month:-20℃~45℃,45%RH~75%RH
Less than 3 months:-10℃~35℃,45%RH~75%RH

Recommended storage environment:

15℃~35℃,45%RH~75%RH

3.0

Long time storage:

If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months.

We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!


4. Lithium Battery Pack Operation Instruction

  1. Do not surpass the largest charging current that the specification stipulated.
  2. Do not surpass the highest limited voltage that the specification stipulated.
  3. Charging temperature: within temperature scope that specification stipulated.
  4. Charge with constant current, then with the constant voltage, no reverse charge, which is dangerous.
  5. Special note: Short time doesn't affect the use of the battery overcharge too, but for a long period of time over discharge or over charge can affect the function of the battery failure, or the battery can't use permanent, appear serious safety hazards, need a long time floating please use the recommended floating model specification.

5. Case Structure of High Voltage Battery Module

Lithium LiFePO4 Data Center Batteries 75kwh 750v 100ah Super High Voltage 1

No. Description Silk-screen Remark
1 connector INPUT P+ Output terminal
2 connector INPUT P- Output terminal
3 LCD screen LCD
4 CAN port CAN
5 connector OUTPUT P+
6 switch ON/OFF
7 connector OUTPUT P- Set the address
8 Handle
9 Bracket


6. Rechargeable Lithium ion LifePO4 Battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

Lithium LiFePO4 Data Center Batteries 75kwh 750v 100ah Super High Voltage 2
7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
