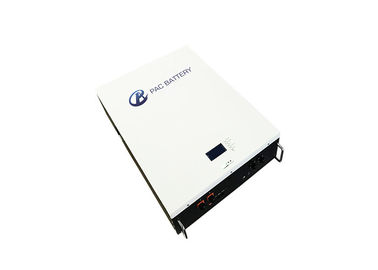

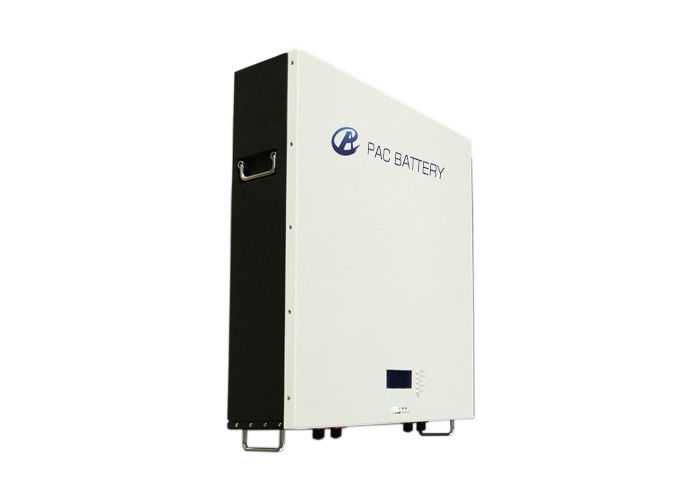

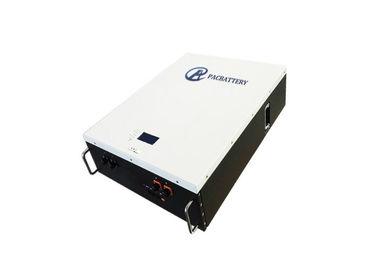

Powerwall Type Energy Storage Lithium Battery 5kwh 48v 100Ah For Home ESS

Powerwall Type Energy Storage Lithium Battery 5kwh 48v 100Ah For Home ESS

Powerwall Type Energy Storage Lithium Battery 5kwh 48v 100Ah For Home ESS
Powerwall Type Energy Storage Lithium Battery 5kwh 48v 100Ah For Home ESS
Powerwall Type Energy Storage Lithium Battery 5kwh 48v 100Ah For Home ESS
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: IEC62619, MSDS, UN38.3 etc
Model Number: Powerwall Battery 5kWh
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Typical Voltage: 48V Battery Type: Long Lifespan LiFePO4 Battery
Typical Capacity: 100Ah Weight: 58kgs
Battery Protection: Smart BMS Logo: Accept Customized Logo On Battery
Battery Power: 5kW Design: With LCD And LED Indicators
Warranty: 5 Years Dimension: 650*480*190mm
High Light:

home energy storage battery

,

energy storage system lithium ion battery

Powerwall Energy Storage Lithium Battery pack LiFePO4 5kWh 48V 100Ah for home ESS

1. Instruction of 5kWh Powerwall Lithium battery

This smart Powerwall Energy Storage Lithium Battery Pack is using Deep cycle LiFePO4 battery, 48V 100Ah 5kwh energy, manufactured by PAC Technology Co.,Ltd, provides emerency power to home ESS.



2. Specification of 48V 100Ah home ESS Powerwall Battery

No. Item General Parameter Remark
1.1 Description Powerwall Energy Storage Lithium Battery pack LiFePO4 5kWh 48V 100Ah for home ESS
1.2 Cell Type prismatic LiFePO4 battery cell
1.3 Typical Capacity 100Ah
1.4 Typical Voltage 48V
1.5 Typical power 5kWh
1.6 Inverter compatible with brand SolarEdge, Solax, Goodwe, Sungrow, Lantruan, Sofarsolar, GMDE etc.
1.7 Load power 5kva
1.8 Charging voltage 54.75V
1.9 End voltage 37.5~42V
2.0 Standard charge current 20A
2.1 Limiting current 20A
2.2 Max. continuous charge current 100A
2.3 Standard discharge current 20A
2.4 Max. continuous discharge current 100A
2.5 Cycle life >6000 times
2.6 Weight 53kgs
2.7 Dimension 650×480×190mm
2.8 Operation Temperature Range Charge 0~45℃, Discharge -20~55℃

We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!

3. Key features of Powerwall Energy Storage Battery 48V 100Ah

  • LiFePO4 composition – provides exceptional safety and longevity
  • 6,000 cycles/10 years service life
  • Wall-mounted, convenient installation
  • Integrated state-of-the-art BMS to manage and monitor battery information including voltage, current and temperature as well as balance cell charging/discharging rates


4. Front interface of 5kWh Lithium Battery Pack Powerwall ESSPowerwall Type Energy Storage Lithium Battery 5kwh 48v 100Ah For Home ESS 0

No. Description Silk-screen Remark
1-2 UES0600 P+ P+ Output terminal
3-4 UES0600 P- P- Output terminal
5 Dial switch ADS Set the address
6 RS232 RS232 RS232 communication port
7 RS485 port RS485 RS485 communication port
8 Port Reset button RST For reset the batter
9 Dial switch ADS Set the address
10 LED CAPACITY Capacity indicator
11 LED ALM Alarm indicator
12 LED RUN Operation indicator
13 LCD
14 LCD Key
15 Handle
16 Bracket


5. Rechargeable Lithium ion Battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

Powerwall Type Energy Storage Lithium Battery 5kwh 48v 100Ah For Home ESS 1

6. MAINTENANCE AND SECURITY

1. Use the unit properly to avoid electric shock.

2. Do not charge the unit with a charger that doesn’t match this product.

3. Do not dispose of it in fire.

4. Do not place or store the unit together with bulk metal objects.

5. Do not store the unit for a long time under power loss.

6. Do not cover the unit with towels, clothing and other items, so as not to affect heat dissipation.

7. Do not connect the unit with a charger for a long time.


7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
