Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | PAC/OEM |
Certification: | CE, PSE, ROHS, MSDS, UN38.3 etc |
Model Number: | Portable solar battery 200W |
Minimum Order Quantity: | 1pc |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export carton, wooden case, pallet etc. |
Delivery Time: | 5-7 days for samples, 20-30 days for bulk order |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 60,000kWh per month |
Weight: | 5.3Lbs, 2.4Kg | Battery Application: | Energy Storage System, Home Applications |
---|---|---|---|
Typical Voltage: | 11.1V | Keywords: | Light Weight Portable Solar Lithium Battery |
Inverter Power: | 200W | Dimension: | 230*139*123mm |
Color: | Green And Black | Battery Cycle: | ≥500 Times |
High Light: | lithium camping battery,portable battery power station |

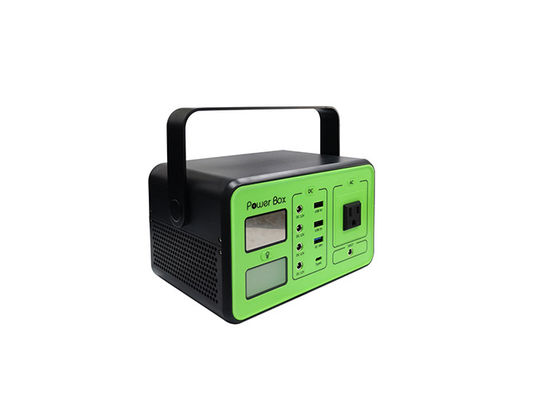

Light weight portable solar lithium ion battery 200W usb output for energy storage system
T200 User Manual-PAC Technology.pdf
1. Instruction of 200W Portable solar battery
The portable solar lithium battery is all-in-one system, made by PAC Technology Co.,Ltd. It is combing the solar inverter, rechargeable batteries and built-in BMS. It is developed for power shortage remote mountain area, agriculture and animal husbandry, scientific investigation etc. It is conveniently carried and operated simply. It could be used for rescue stations, home products including television, audio, lighting, fans etc.
2. Light weight lithium ion battery Specification(@Battery initial Temp25±5℃)
No. | Item | General Parameter | Remark |
1.1 | Description | Light weight portable solar lithium ion battery 200W usb output for energy storage system | |
1.2 | Battery Type | Rechargeable lithium ion battery | |
1.3 | Typical Capacity | 222Wh | |
1.4 | Typical Voltage | 11.1V | |
1.5 | LED light | 3W power, Flashlight/Blink/SOS | |
1.6 | Inverter | Modified Sine Wave-200W | |
1.7 | Charging time | 7-8 Hours | |
1.8 | Charge Controller | MPPT for Higher Efficiency Solar Charging | |
1.9 | Input Charging | DC15V 3A | |
2.0 | AC output |
AC Voltage: 100/110/120/220/230/240V Output Frequency: 50/60Hz ☆For actual voltage and frequency, please refer to the sticker at the bottom of the unit. |
|
2.1 | DC output | 9-12.6V/10A (15A Max)*4 | |
2.2 | USB output |
2×USB-A: 5V/2.4A 1×USB-A: QC3.0, 3-12V/18W 1×TYPE-C: QC3.0, 3-12V/18W |
|
2.3 | Weight | 2.32Kg | |
2.4 | Dimension | 210*139*123mm | |
2.5 | Operation Temperature Range | Charge 0~55 C, Discharge -10~60 C |
3. DC Output of 200W portable solar battery
This unit has 4x DC5521 outputs (voltage range: DC9V-12.6V and rated current is 10A (15A Max)).
To use, connect the power cable plug of the DC electric appliance to the DC outlet of the unit (as below). Switch on the “DC button”. The DC indicator on the LED display will light up, and the unit will start providing power to your DC12V appliance.
In addition, you can charge car accessories by connecting the Cigarette Lighter Adapter to the DC Outlet of the unit (as below). Switch on the “DC button” ,the DC indicator will light up, and start charging DC12V car accessories.
When there are no active charging sessions, the DC output will automatically switch off after 30 seconds, and the unit will enter a low power state.
*How to charge DC12V appliances with this unit?
*How to charge car accessories via DC to Cigarette Lighter Connector?
4. MAINTENANCE AND SECURITY of light weight portable battery
5. 200W lithium ion battery appearance
6. RECYCLING of portable 200W battery
This product is made of lead free materials, and it’s difficult to degrade naturally. In the process of degradation, it will cause a certain pollution to the environment, and produce precious metals and rare metals. To protect
the environment and make good use of natural resources, please return your used electronic products, batteries and packaging materials to dedicated collection points.
7. Light weight li ion battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
8. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
