600w Portable Solar Generator Super Output Power With 1000wh Lithium Battery 14.8v

600w Portable Solar Generator Super Output Power With 1000wh Lithium Battery 14.8v

  • 600w Portable Solar Generator Super Output Power With 1000wh Lithium Battery 14.8v
  • 600w Portable Solar Generator Super Output Power With 1000wh Lithium Battery 14.8v
600w Portable Solar Generator Super Output Power With 1000wh Lithium Battery 14.8v
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: MSDS, UN38.3 etc
Model Number: 1000wh portable lithium battery
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 5-7 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
AC Charging Power: 160w Battery Capacity: 1000wh 14.8v
DC Charging Power: 200w Dimension: 390*183*313mm
DC Output: 5V/12V AC Output Power: 600w
Net Weight: 12kgs Warranty: 1 Year
High Light:

portable emergency power station

,

portable battery power station

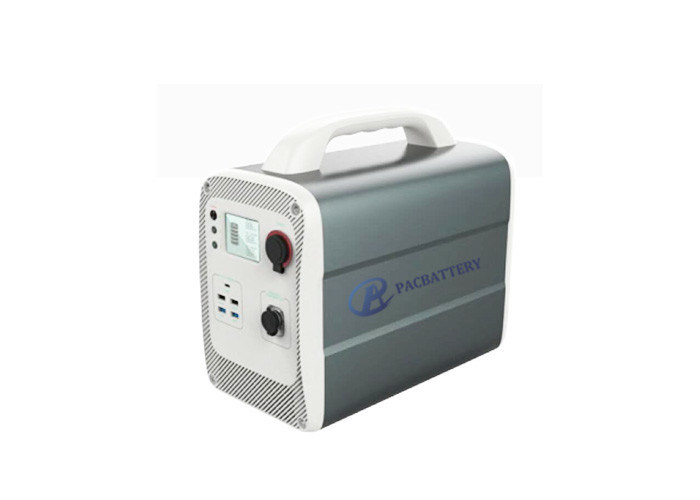

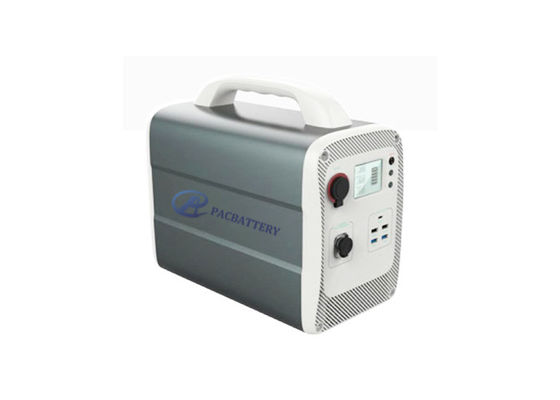

Super output power 600w portable solar generator with 1000wh lithium battery 14.8v


1. Instruction of 600w portable solar generator
With built-in 14.8v 1000Wh li ion battery pack, BMS and solar inverter, the portable generator can provide 600w AC output power for most home appliances. For input, the 1000wh lithium battery can be charged by 160w AC adapter and 200w solar panel. For output, it provides differents ports as AC wall outlet, USB, Type C and Car port. The 14.8v li ion battery can be charged and discharged at the same time and convenient to carry. The portable generator is developed for emergency backup, outdoor activities, caravan and daily power supply.



2. BMS management system of 1000wh 14.8v lithium battery
The battery management system provides below protection functions for the li ion battery pack:
over-charge protection, over-discharge protection, over current protection, short circuit protection, overload protection and over heating protection.

Over current protection: The BMS will cut-off protection circuit if it is over current.

Low-voltage protection: When the battery is low voltage, BMS automatically close all output function. You need to turn off the switch, and then turn on the switch to make the product recover to normal.

Over-voltage protection: When the battery is over voltage, BMS automatically close all input.

Overheating protection: When internal temperature is over 149℉ or 65℃, BMS automatically turn off the device. You need to turn off the switch, and then turn on the switch to make the product recover to normal.



3. 600w portable solar generator specification(@Battery initial Temp25±5℃)

Super output power 600w portable solar generator with 1000wh lithium battery 14.8v
Battery Battery Capacity 1000Wh
Battery Type Lithium ion battery
Max. Charging power 160w
Battery Voltage 14.8v
Charge PV Input 160w(16~40Vdc)
AC Input 160w
AC Output AC Output Power 600w
AC Output voltage 120Vac±5% OR 230Vac±5%
AC Output Frequency 50Hz/60Hz
Output Ports 2×AC Wall Outlet
DC Output USB Port 5V/3A
USB Type-C PD 3A (@5V/9V/12V/15V) / 2.25A(@20V)
Car Port 12V/9A
General Charge 0℃~40
Discharge -10℃~40℃
Humidity 10%~90%
Product Dimension 390*183*313mm
Net Weight 12kgs


4. Features of 600w portable power generator

  • High output of 600w
  • Advanced circuit design
  • Capacity display: LCD display
  • Solar panel charging and AC adapter charging
  • Creative appearance design
  • Aluminum alloy to achieve a rugged enclosure


5. Operation Instruction of 14.8v lithium battery

  • DO NOT incinerate, crush or disassemble.
  • DO NOT reverse connections(polarity) from charger to battery.
  • Do not charge the unit with a charger that doesn’t match this product.
  • Do not expose the unit to direct sunlight.
  • Do not store the unit for a long time under power loss.


6. Deliveryof 600w lithium battery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

600w Portable Solar Generator Super Output Power With 1000wh Lithium Battery 14.8v 0


7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
