| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | MSDS, UN38.3, FCC, CE etc |
| Model Number: | deep cycle LiFePO4 battery 25.6v 6Ah |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Features: | Deep Cycle LiFePO4 Battery | Battery Application: | Solar Lighting, Garden Lighting |
|---|---|---|---|
| Typical Energy: | 153.6Wh | Suggested Adapter: | 29.2V 1.2A~3A |
| Short Ciucuit Protection: | Yes | Weight: | About 1.6kgs |
| Pulse Current: | 20A(<3s) | Cell Model: | 32700 |
| Dimension: | 151*98*95mm | Material: | Lithium Iron Phosphate Battery |
| High Light: | lifepo4 battery pack,12v lifepo4 deep cycle battery |
||

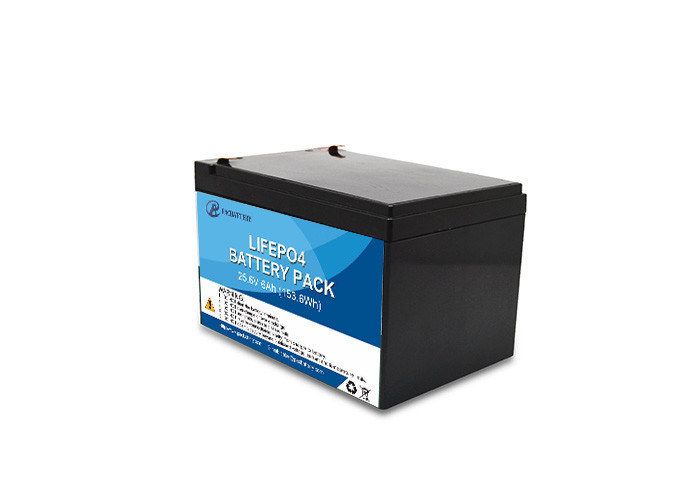

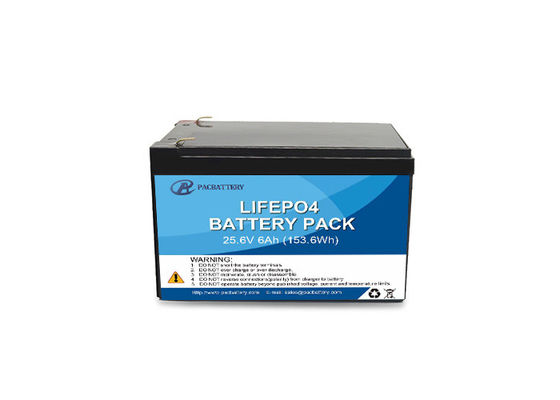

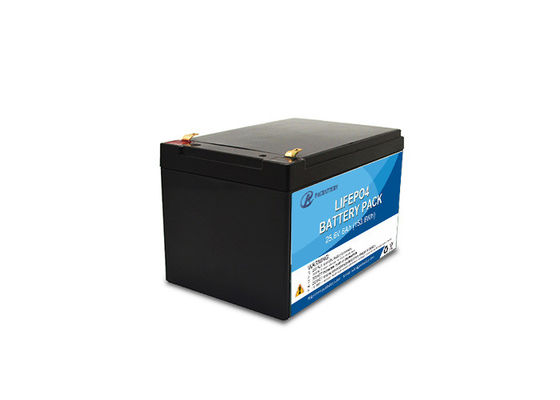

Deep cycle LiFePO4 battery pack 25.6V 6Ah 32700 8s1p for solar lighting
1. Quick detail
2. Storage tips of 25.6V 6Ah LiFePO4 battery
3. Test conditions of Free Fall test
The fully charged cell is dropped three times from a height of 1000 mm (the lowest point of the cell) onto a concrete floor. The cells or batteries are dropped so as to obtain impacts in random orientations. After the test, the cell shall be put on rest for a minimum of one hour and then a visual inspection shall be performed
4. Specification of 25.6V 6Ah solar lighting battery(@Battery initial Temp25±5℃)
| NO | Items | Description | |
| Normal Specification | |||
| 1 | Nominal Voltage | 25.6V (LFP-8S) | |
| 2 | Normal Capacity | 6Ah | |
| 3 | Internal Resistance | ≤70mΩ @1kHz AC | |
| Standard Charge | |||
| 4 | Battery operation temperature range @charging | 0~45℃ | |
| 5 | Normal charge voltage | 29.2±0.2V | |
| 6 | Recommended float charge voltage(for Standby use) | 27.2±0.2V | |
| 7 | Allowed MAX charge current | 3A@Battery initial Temp 25±5℃ | |
| 8 | Recommended charge current | ≤3A | |
| Standard Discharge | |||
| 9 | Battery operation temperature range @discharging | -20~60℃ | |
| 10 | Output voltage range | 20.0~29.2V | |
| 11 | Constant discharge current | 1.2A | |
| 12 | Pulse discharge current | 20A withstand 3s | |
| 13 | Discharge cut-off voltage | 18.4~22.4V | |
| Mechanical Characteristics | |||
| 14 | Dimension | Length 151±2mm | |
| Width 98±2mm | |||
| Height 95±2mm | |||
| 15 | Weight | About: 1.6Kg | |
| Storage | |||
| 16 | Storage Temperature & Humidity Range | Short: within one month | -20~+ 60℃, 5~75%RH |
| Long term: above one month | -10~+45℃, 5~75%RH | ||
| 17 | Self-discharge rate | Residual capacity | ≤3% per month; |
| Reversible capacity | ≤1.5%per month; | ||
5. Delivery of 32700 8s1p LiFePO4 battery pack
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
6. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
