| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/ODM |
| Certification: | IEC62133, UN38.3, MSDS |
| Model Number: | 18650 4S1P |
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 3pcs/plastic pallet, 60pcs/ctn, standard export carton |
| Delivery Time: | 15-20 days for samples, 25-35 days for mass production |
| Payment Terms: | T/T |
| Supply Ability: | 5,000pcs/day |
| Type: | Lithium Ion Battery | Cell Model: | 18650 4S1P |
|---|---|---|---|
| Nominal Voltage: | 14.8V | Nominal Capacity: | 2600mAh |
| Items: | 18650 Lithium Ion Battery Pack | Application: | Portable Devices |
| Keywords: | 18650 Rechargeable Battery Pack, 18650 14.8V 2600mAh | Protection: | Built-in PCM |
| Standard Discharge Current: | 0.5C | Standard Charge Current: | 0.5C |
| Certificate: | IEC62133, UN38.3, MSDS | Cycle: | 500 Times |
| High Light: | rechargeable lithium batteries,battery pack for led lights |
||

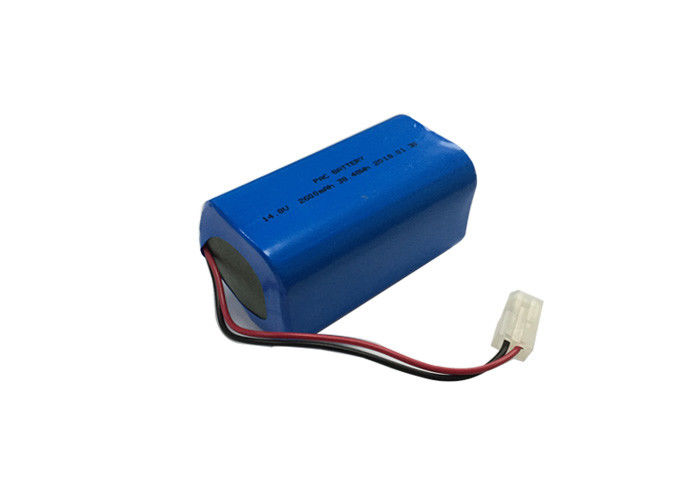

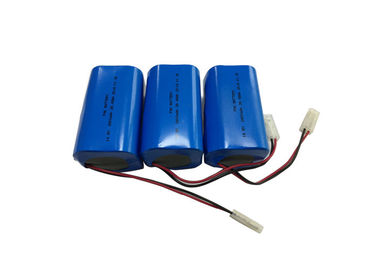

18650 Lithium ion Rechargeable Battery Pack 4S1P 14.8V 2600mAh for Portable Devices
14.8volt 2600mAh lithium ion battery pack, using 18650 cell, 4S1P assembly, widely use for
*Camping light
*Portable devices
*Emergency light
*golf cart, wheelchair
*LED light
Features of Rechargeable Battery Pack 14.8V 2600mAh
1. High Energy Density.
2. High Output Voltage.
3. Excellent Security.
4. Long Cycle Life: More than 500 repeated charge/discharge cycles.
5. Factory mastered technology and competitive price
Specification of 4S1P Rechargeable Battery Pack 14.8V 2600mAh
| No. | Item | General Parameter |
| 1.1 | Description | 18650 Lithium ion Rechargeable Battery Pack 4S1P 14.8V 2600mAh |
| 1.2 | Battery Type | Li ion 18650 cell |
| 1.3 | Typical Capacity | 2600mAh |
| 1.4 | Typical Voltage | 14.8V |
| 1.5 | End of Charge Voltage | 16.8V |
| 1.6 | Charge Current | 0.2C |
| 1.7 | Charging time | 5-6 Hours |
| 1.8 | Over-Charge Voltage Protection cell | 4.25V |
| 1.9 | Max continuous charge current | 2.2A |
| 2.0 | Maximum Continuous Discharging Current | 5A |
| 2.1 | Over-discharge Voltage Protection cell | 2.5V |
| 2.2 | Over-Current Discharge Protection | 7A |
| 2.3 | Short circuit protection | With protection |
| 2.4 | Dimension | Can be customized |
| 2.5 | Operation Temperature Range | Charge 0~55 C, Discharge -10~60 C |
