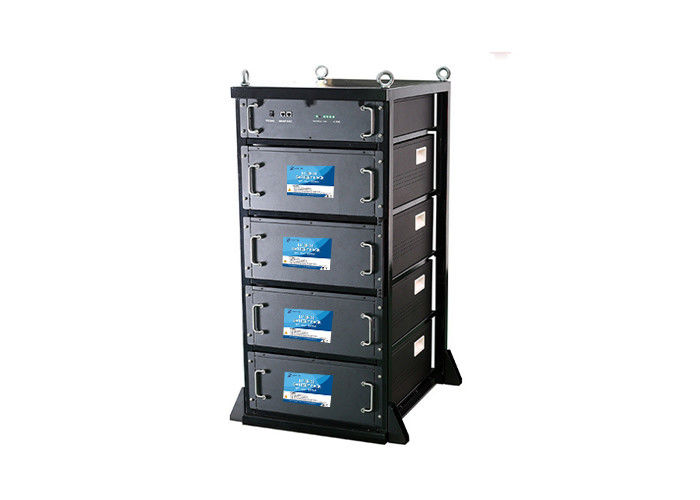

24kw High Voltage Lithium Battery 144v 166Ah For Solar ESS High Safety

24kw High Voltage Lithium Battery 144v 166Ah For Solar ESS High Safety

  • 24kw High Voltage Lithium Battery 144v 166Ah For Solar ESS High Safety
  • 24kw High Voltage Lithium Battery 144v 166Ah For Solar ESS High Safety
  • 24kw High Voltage Lithium Battery 144v 166Ah For Solar ESS High Safety
24kw High Voltage Lithium Battery 144v 166Ah For Solar ESS High Safety
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: ISO9001, ISO14001
Model Number: high power density battery 144V 166Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet.
Delivery Time: 4weeks for samples; 6~8weeks for mass production
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3Gwh per year
Contact Now
Detailed Product Description
Typical Voltage: 144V Typical Capacity: 166Ah
Weight: About 275kgs Battery Application: Solar ESS
Battery Energy: 24kwh Battery Cycle: Up To 6000 Times
Usage: Prismatic Lithium Battery Cell Housing Material: Metal
High Light:

high voltage lithium ion battery

,

commercial solar battery storage

High voltage 24kw lithium ion battery system 144v 166Ah for solar ESS

1. Quick details of 24kw lithium ion battery system

  • High voltage power up to 144V
  • 45S3P combination to achieve 24kw power
  • Used for solar ESS
  • Use high safety lithium iron phosphate battery
  • Long cycle life up to 6000 times
  • Environment friendly


2. BMS functions of LiFePO4 battery 144v 166Ah

Each 48V LiFePO4 battery module is built with Battery Management System.

The BMS have all functions which are:

  • overcharge detection function
  • over discharge detection function
  • over current detection function
  • short detection function
  • Temperature detection function
  • balance function
  • communicate function
  • Alarm function
  • Total capacity function
  • Storage history function


3. Specification of solar ESS 144V 166Ah lithium ion battery(@Battery initial Temp25±5℃)

NO Items Description
Normal Specification
1 Nominal Voltage 144V (LFP-45S)
2 Normal Capacity 166Ah
3 Internal Resistance ≤200mΩ @1kHz AC
4 Communication protocol It has RS485 and CANBus standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage,
current, environment temperature, and charging/discharging current.
Standard Charge
5 Battery operation temperature range @charging 0~45℃
6 Normal charge voltage 162V
7 Allowed MAX charge current 166A@Battery initial Temp 25±5℃
8 Recommended charge current ≤84A
Standard Discharge
9 Battery operation temperature range @discharging -20~60℃
10 Output voltage range 90~162V
11 Allowed discharge current 166A
12 Pulse discharge current 332A withstand 3s
13 Discharge cut-off voltage 90~112.5V
Mechanical Characteristics
14 Dimension Length 600mm
Width 600mm
Height: customized
15 Weight About: 275Kg
Storage
16 Storage Temperature & Humidity Range Short: within one month -20~+ 60℃, 5~75%RH
Long term: above one month -10~+45℃, 5~75%RH
17 Self-discharge rate Residual capacity ≤2% per month;
Reversible capacity ≤1%per month;


4. Other Chemical Reaction of lithium ion battery

Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time without being used. In addition, if the various usage conditions such as charge, discharge, ambient temperature, etc. are not maintained within the specified ranges, the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by electrolyte leakage. If the discharge time is much shorter than the normal after fully charged, even battery is charged correctly, and this may indicate it is time to change the battery.


5. 48V battery pack BMS module assembly
24kw High Voltage Lithium Battery 144v 166Ah For Solar ESS High Safety 0

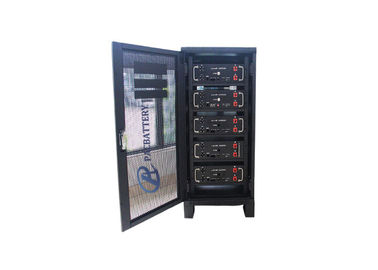

6. Overview of finished 48V LiFePO4 battery pack
24kw High Voltage Lithium Battery 144v 166Ah For Solar ESS High Safety 1

7. Delivery of 24kwh 144V battery system

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

24kw High Voltage Lithium Battery 144v 166Ah For Solar ESS High Safety 2

8. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
