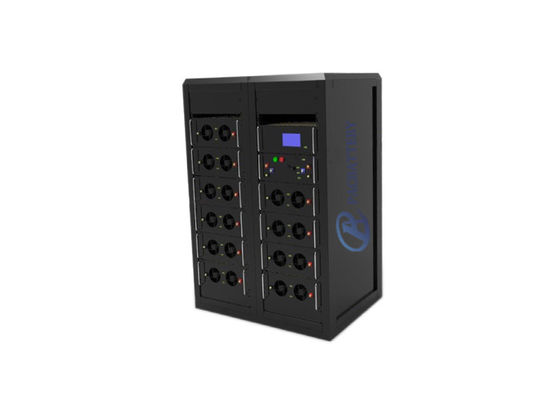

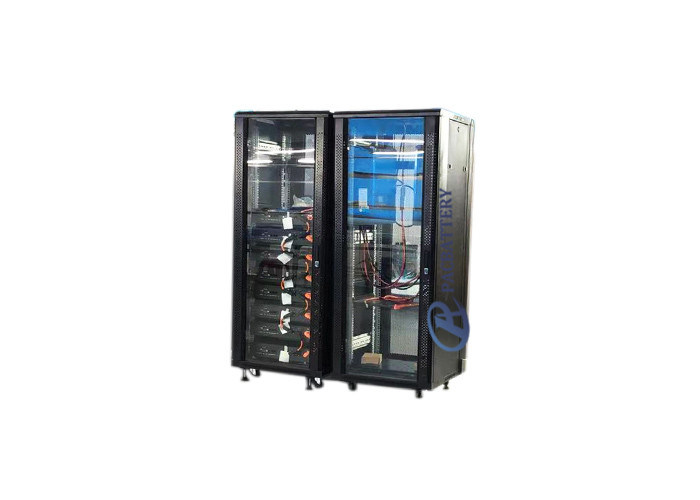

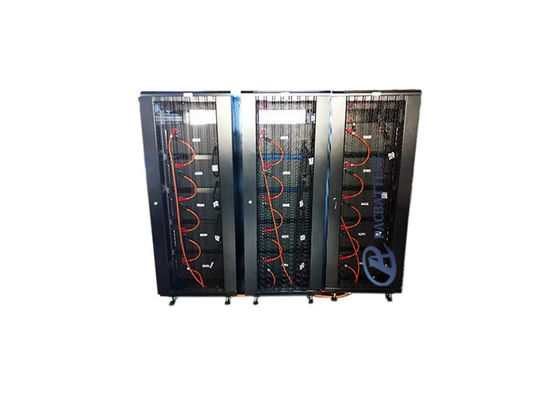

96v 500Ah High Voltage Llifepo4 Lithium Battery Storage Cabinets 48kwh For Solar ESS

96v 500Ah High Voltage Llifepo4 Lithium Battery Storage Cabinets 48kwh For Solar ESS

  • 96v 500Ah High Voltage Llifepo4 Lithium Battery Storage Cabinets 48kwh For Solar ESS
  • 96v 500Ah High Voltage Llifepo4 Lithium Battery Storage Cabinets 48kwh For Solar ESS
  • 96v 500Ah High Voltage Llifepo4 Lithium Battery Storage Cabinets 48kwh For Solar ESS
96v 500Ah High Voltage Llifepo4 Lithium Battery Storage Cabinets 48kwh For Solar ESS
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: ISO9001, ISO14001
Model Number: 96V 500Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet.
Delivery Time: 4weeks for samples; 6~8weeks for mass production
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3Gwh per year
Contact Now
Detailed Product Description
Typical Voltage: 96V Typical Capacity: 500Ah
Weight: About 540kgs Battery Application: Solar ESS
Battery Energy: 48kwh Battery Module: 96V 50Ah
Cabinet: 2 Cabinets Of 19'' Battery Protection: Smart Battery Management System
High Light:

high voltage lithium ion battery

,

commercial solar battery storage

96V 500Ah high voltage lithium LiFePO4 battery cabinet 48kWh for solar ESS

1. Quick details of 96V 500Ah lithium battery cabinet

  • Battery system with high voltage power up to 96V
  • Single battery module of 96V 50Ah
  • Provide 48kw power for solar ESS
  • Prismatic high safety LiFePO4 battery cells inside
  • Long cycle life up to 6000 times
  • Smart BMS provides comprehensive protection for the battery


2. Specification of 48kWh solar ESS battery(@Battery initial Temp25±5℃)

NOItemsDescription
Normal Specification
1Nominal Voltage96V (LFP-30S)
2Normal Capacity500Ah
3Internal Resistance≤50mΩ @1kHz AC
4Communication protocolIt has RS485 and RS232 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage,
current, environment temperature, and charging/discharging current.
Standard Charge
5Battery operation temperature range @charging0~45℃
6Normal charge voltage109.5V
7Allowed MAX charge current250A@Battery initial Temp 25±5℃
8Recommended charge current≤150A
Standard Discharge
9Battery operation temperature range @discharging-20~60℃
10Output voltage range75~109.5V
11Allowed discharge current250A
12Pulse discharge current300A withstand 3s
13Discharge cut-off voltage75~84V
Mechanical Characteristics
14DimensionSingle 96V module: 442*420*200mm
High pressure box size: 442*402*265mm
Cabinet size: 600*600*1200mm*2
15WeightAbout: 540Kg
Storage
16Storage Temperature & Humidity RangeShort: within one month-20~+ 60℃, 5~75%RH
Long term: above one month-10~+45℃, 5~75%RH
17Self-discharge rateResidual capacity≤2% per month;
Reversible capacity≤1%per month;


3. Installation Precautions of 96V 500Ah high voltage battery system
(1) Prior to installation, unpacking to check the quantity of the parts and battery appearance.
(2) Install the hanger and handle and measure the battery voltage with a multimeter. The general factory voltage of the battery is 97V-99V.
(3) Prior to wiring, check the anode and cathode of the battery and the anode and cathode terminals shall not be connected reversely.
(4) During battery connection, please wear the protective gloves. When using such metal tools as torque wrench, please perform insulating packaging for them and two end of the metal tools such as torque wrench shall not contact the positive and negative terminals of the battery at the same time to avoid battery short-circuit.
(5) Before the battery is connected with the externally connected equipment, make the equipment in a disconnected state, check whether the connecting polarity of the battery and total voltage are correct, connect the battery anode with the equipment anode and battery cathode with the equipment cathode and fix the connecting line.
(6) During handling and placement, the battery must be handled gently. No dropping or impacting. The battery shall not be thrown or beaten to avoid damaging the battery or resulting in potential safety hazard.
(7) Do not touch the surface of the battery box with the sharp part of the tool to scratch or damage the battery box.
(8) Do not disassemble the battery box without authorization.
(9) Do not put any article made of the metal conductive material together with the battery or assemble it into the battery box.
96v 500Ah High Voltage Llifepo4 Lithium Battery Storage Cabinets 48kwh For Solar ESS 0
4. Install it according to the selected installation mode:

  • Installation of standard cabinet (rack): Install the matching hanger for the battery pack and fix them in the standard cabinet and the tray protection is added for the battery box.
  • Installation of wall-mounted box: Prior to installation, please ensure that the wall complies with the wall-mounted requirements; according to the location in the design plan, install the special wall-mounted box of the lithium battery; the battery pack is fixed in the wall-mounted box in a hanger manner.
  • Installation of integrated indoor and outdoor cabinets (boxes): Install them according to the installation specification for the customized integrated cabinet (box).


5. Delivery of 48kwh 96V 500Ah battery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

96v 500Ah High Voltage Llifepo4 Lithium Battery Storage Cabinets 48kwh For Solar ESS 1
6. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
