| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/ODM |
| Certification: | IEC62133, UN38.3, MSDS |
| Model Number: | 3.7V 100Ah |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | White inner box, standard export carton |
| Delivery Time: | 15-20 days for samples, 25-35 days for mass production |
| Payment Terms: | T/T |
| Supply Ability: | 50,000pcs/day |
| Type: | Lithium Polymer | Cell Model: | PAC77101197 10000mAh |
|---|---|---|---|
| Nominal Voltage: | 3.7V | Nominal Capacity: | 100Ah |
| Items: | 3.7V 100Ah High Power Battery Pack | Application: | LED Light, Back Up Battery |
| Keywords: | 3.7V 100Ah High Power Battery Pack, Custom Size Lithium Battery Pack With PCM | Protection: | Built-in PCM |
| Pack Size: | 16.0mm (T)*99.0 Mm (W) *199.5mm (L) | Certificate: | IEC62133, UN38.3, MSDS |
| Cycle: | 500 Times | Warranty: | 1 Year |
| High Light: | soft battery pack,cylindrical lithium ion battery pack |
||

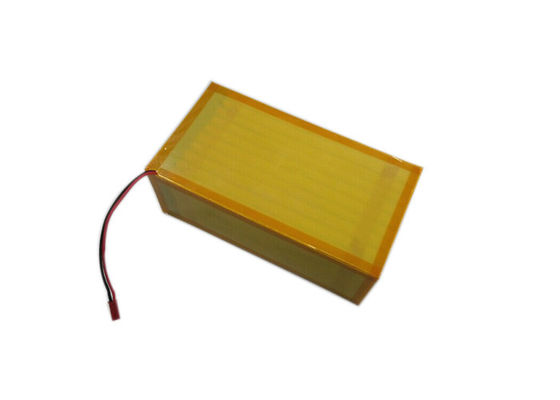

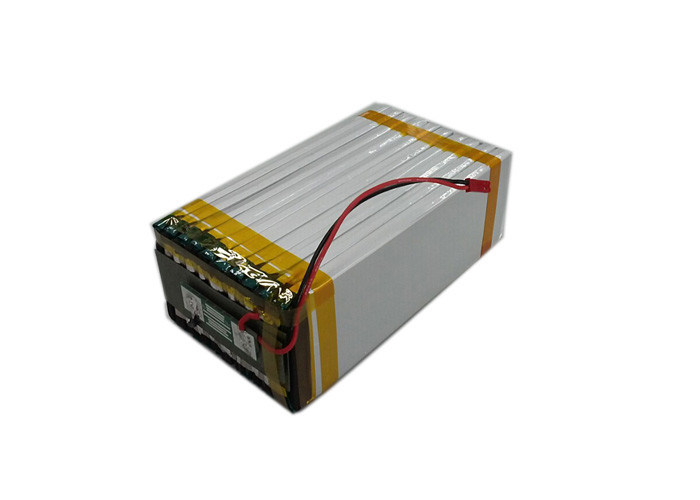

3.7V 100Ah High Power Battery Pack, Custom Size Lithium Battery Pack with PCM
3.7V 100Ah Lithium polymer Battery Pack, using prismatic battery cell, 1S10P assembly, widely use for solar street light, UPS/ power back up supply for LED light, golf cart, e-bike.
We have more than 1000 models for your choosing. And can also produce customized cells according to your requirement.
Features of Custom Size Lithium Battery Pack:
1.Long life cycle, large capacity and good shock resistance
2.Low self-discharge and good discharge performance at low temperature
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5. Environmental friendly
6. Lighter weight smaller size
7.Most safe no explosion no fire
Parameter of 3.7V 100Ah High Power Battery Pack
| No. | Item | General Parameter |
| 1.1 | Description | 3.7V 100Ah 1S10P Pounch cell Lithium ion Battery Pack |
| 1.2 | Cell Model | 40101197-20000mAh |
| 1.3 | Typical Capacity | 100Ah |
| 1.4 | Typical Voltage | 3.7V |
| 1.5 | End of Charge Voltage | 4.25V |
| 1.6 | Charge Current | 0.2C |
| 1.7 | Charging time | 5-6 Hours |
| 1.8 | Over-Charge Voltage Protection cell | 4.2V |
| 1.9 | Max continuous charge current | 10A |
| 2.0 | Maximum Continuous Discharging Current | 10A |
| 2.1 | Over-discharge Voltage Protection cell | 2.5V |
| 2.2 | Over-Current Discharge Protection | 18-25A |
| 2.3 | Short circuit protection | With protection |
| 2.4 | Dimension | 16.0mm (T)*99.0 mm (W)*199.5mm (L) |
| 2.5 | Weight | 700g |
| 2.6 | Operation Temperature Range | Charge 0~45 C, Discharge -20~60 C |
One-stop solution
Lithium battery cell manufacturing
Cylindrical Li ion battery cell manufacturing, 18650, 26650, 14500, 38120
Battery management system (BMS) design, PCM, PCB, production is done in-house
Plastic tooling, injection is done in-house
Battery packing is done in-house
• By Air Door to Door Service
• By Sea Door to Door Service
• By Express: EMS, TNT, UPS, FedEx
24 hours customer service, waiting for your inquiry!
Why Choose Us:
Reliable quality -- We have 10 years of battery industry experience. Automated production line and precise equipment. In strict accordance with international standards for production inspection, to ensure product quality and safety.
Positive service -- We give response for all inquiries/questions in 24 hours. We have a professional R&D team, we can provide professional customized and one-stop services.
Taking responsibility -- PAC members to proactively take responsibility, we always offer the best solution to our customers.
