100mW RS232 48v 450ah Lithium Ion Battery For Solar Storage

100mW RS232 48v 450ah Lithium Ion Battery For Solar Storage

100mW RS232 48v 450ah Lithium Ion Battery For Solar Storage
100mW RS232 48v 450ah Lithium Ion Battery For Solar Storage
100mW RS232 48v 450ah Lithium Ion Battery For Solar Storage
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: ROHS, UN38.3, MSDS etc
Model Number: 48V 450Ah lithium ion battery for solar storage
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Model: 48450 Battery Cell Type: Lithium Ion Battery For Solar Storage
Typical Capacity: 450Ah Battery Application: Solar Energy, Telecommunication
Battery Protection: Smart BMS Protocol: RS232, RS485, CAN
Second Protection: Air Switch Dimension: Customized
High Light:

48v 450ah Lithium Ion Battery

,

100mW Lithium Ion Battery

,

RS232 Solar Storage Lifepo4 Battery

Lifepo4 Battery 48v 450ah Lithium ion Battery for Solar Storage

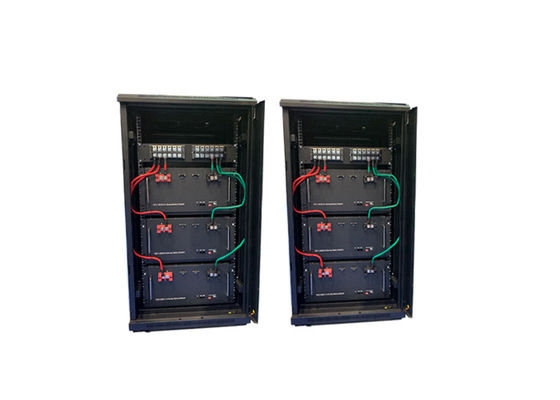

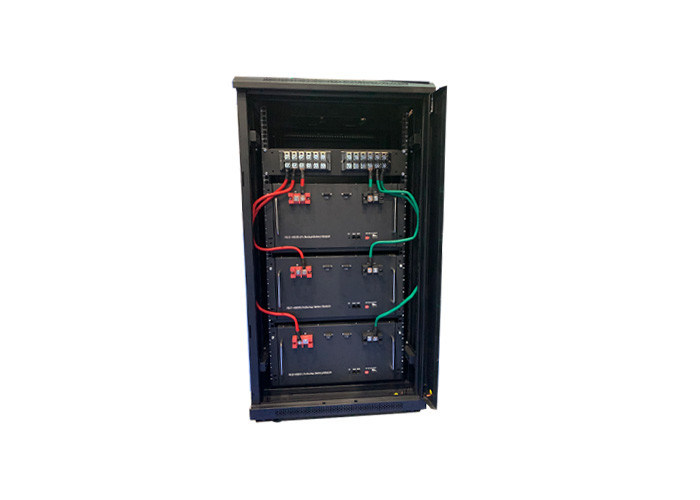

48V 450Ah battery, use 3pcs 48V 150Ah battery pack in parallel, assembled in cabinet.

1. Instruction of 48v 450ah Lithium ion Battery

The 48v lithium battery pack 10Ah is using high safety Lithium iron phosphate battery cell with capacity 450Ah, 15S3P assembled. The battery pack dimension is 482*44*360mm and aslo can be customized. Built with smart BMS and IO link protocol, the customer can check and monitor the battery pack status in real time. We can also make the battery pack with other protocols, such as RS485, RS232, SMBUS, CANBUS, I2C etc. Please contact us if you have any inquiries. We work at 24/7.



2. Application of 48v 450ah Lithium ion Battery

The application of 48v 10Ah battery with IO is very wide, such as Telecom base station, computer server center, business base center, 4G/5G base station etc. It is specially suitable for remote areas.




3. 15S1P 48V 10Ah Telecom battery Specification(@Battery initial Temp25±5℃)


Lithium ion phosphate battery

pack

Combination method 3pcs 48V 150Ah
Minimal capacity(0.5C) 450Ah
Nominal voltage 48V
Max. charge voltage 58.4V
Discharge cut-off voltage 40V
Max Charge current 50A
Max Working current 100A
Standard charge current 50A
Standard discharge current 100A
Pack Impedance standard ≤100mW
Weight (Approx.) ≈300Kg
Max. dimension(L×W×H)(mm) ≤ 1200*680*1350mm



Operating temperature

Charge temperature 0℃~45℃
Discharge temperature -20℃~55℃


5. 48V 10Ah 1U LiFePO4 Battery for Solar Energy, Communication, UPS, Network Power:
Energy Storage 25Ah Lithium Iron Phosphate Deep Cycle Battery 12V SLA Replacement

> Wind-Solar Energy Storage system > Solar street lights > Off-grid energy storage

> Household energy storage > Telecom backup system > Mobile base stations
> Emergency backup energy sources > Uninterruptible power system > Grid load shifters

> Electric Golf Car > Electric vehicles > Electric motorcycles

> Electric forklifts > Electric boats, etc...


5. Operation principle of 48v 10Ah Telecom battery pack

Input AC 220V, after rectification power module, output DC 48V. When the power grid normal, the battery will supply power according to system requirement, and to be charged at same time; when power off, the battery will supply energy, to make sure the DC power system working normally, to realize uninterruptible power supply. The power supply has second disconnection function, when the battery voltage is low, the battery output would be cut off to protect battery.


6. Package of 48V 10Ah battery pack
The 48V LiFePO4 battery pack is packed firmly inside the wooden case and no shake. Then 8 wooden cases are fixed in one pallet.
100mW RS232 48v 450ah Lithium Ion Battery For Solar Storage 1
100mW RS232 48v 450ah Lithium Ion Battery For Solar Storage 2


7. 48V 50Ah telecom lithium batteryDelivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

100mW RS232 48v 450ah Lithium Ion Battery For Solar Storage 3


8. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
