|Place of Origin:||Guangdong, China (Mainland)|
|Certification:||MSDS, UN38.3, UL1642, ISO9001 etc|
|Model Number:||400v 8kwh|
|Minimum Order Quantity:||4pcs|
|Packaging Details:||Standard export carton, wooden case, pallet etc.|
|Delivery Time:||15-20 days for samples, 20-30 days for bulk order|
|Payment Terms:||T/T, Western Union, Paypal|
|Supply Ability:||60,000kWh per month|
|Typical Voltage:||400V||Battery Type:||EV Grade Lifepo4 Battery|
|Typical Capacity:||20Ah||Battery Application:||ESS, Solar Energy Storage|
|Type:||Wall Mounted||Compatible With:||3 Phase Solar Inverter Of Huawei, Goodwe, Etc|
|Cycle Life:||More Than 4000 Times||Warranty:||5-15 Years|
ESS Wall Mounted Lithium Battery,
8kwh Wall Mounted Lithium Battery,
20Ah EV Lifepo4 Battery

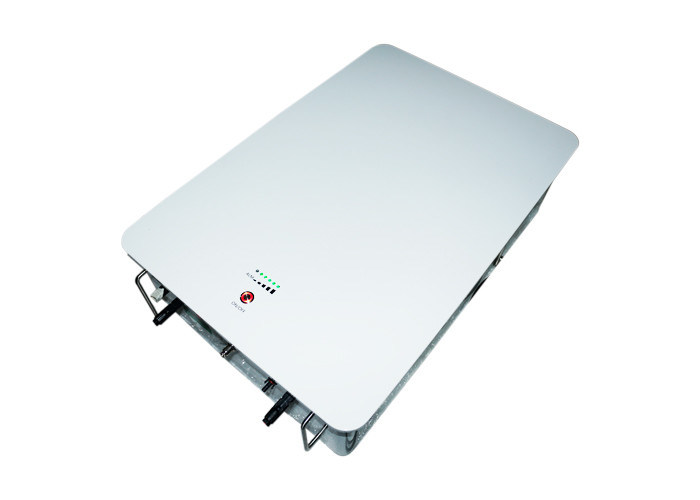

400V high voltage ESS wall mounted lithium battery 8kwh
1. Features of 400V high voltage wall mounted battery
2. System control of High voltage 400v wall mounted battery
2.1 Battery management system requirements
2.1.1 Battery management system function
(1) Single battery voltage detection;
Using special voltage measuring chip, including high precision A/D conversion module.Accurately and timely monitor the
status and changes of the battery during use.Effective to prevent improper use of the battery.
(2) Battery temperature detection;
NTC temperature detection scheme, with fault detection ability of broken wire and short circuit.
(3) Balanced management;
BMS can trigger passive equalization under certain conditions according to the capacity of individual cells in the battery
(4) Battery working current detection;
A 300A hall sensor current acquisition scheme is adopted.
(5) Insulation resistance detection;
The standards and recommendations are shown in the following table:
The fault level Insulation resistance advice
0 >500Ω/V normal
1 Between 100Ω/V and 500Ω/V Timely maintenance
(6) Estimation of battery SOC;
The hall sensor is used to sample the current, complete current measurement and SOC estimation, and conduct fault
classification alarm for high and low SOC according to the control parameters provided by the battery manufacturer.
(7) Battery failure analysis and online alarm;
BMS has the self-diagnosis function of the system. After the system is powered on, it will test the voltage, temperature,
communication, clock, storage, internal communication and other components. Meanwhile, it will judge and alarm the
battery failures such as over voltage, under voltage, over current, over temperature, SOC too low/high and consistency
according to the information provided by party a.
(8) Monitor communications;
BMS USES high-speed CAN communication to report the battery status timely and reliably, effectively preventing battery
3. 8kWh 12kwh tesla wall mounted 400v battery specification
|Dimensions (L x W x H)||810 x585 x195mm||810 x585 x195mm|
|Life time(25°C)||10 years|
|Life cycles(80% DOD, 25°C)||4000Cycles|
|Storage time / temperature||5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C|
|Operation temperature||-20°C to 60°C @60+/-25% Relative Humidity|
|Storage temperature||0°C to 45°C @60+/-25% Relative Humidity|
|Lithium Battery Standard||IEC62619,UN38.3,ROHS,CE-EMC, UL1642|
|Enclosure protection rating||IP21|
|Operation voltage||312-456 Vdc||312-456 Vdc|
|Max. charging voltage||456 Vdc||456 Vdc|
|Max. charging and discharging current||20A||30A|
4. Case structure of 400V high voltage ESS battery
5. Internal structure of Solar wall 400V lithium battery
6. Energy storage battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
