| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | MSDS, UN38.3, UL1642, ISO9001 etc |
| Model Number: | 400v 8kwh |
| Minimum Order Quantity: | 4pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Typical Voltage: | 400V | Battery Type: | EV Grade Lifepo4 Battery |
|---|---|---|---|
| Typical Capacity: | 20Ah | Battery Application: | ESS, Solar Energy Storage |
| Type: | Wall Mounted | Compatible With: | 3 Phase Solar Inverter Of Huawei, Goodwe, Etc |
| Cycle Life: | More Than 4000 Times | Warranty: | 5-15 Years |
| High Light: | ESS Solar Wall Battery,8kwh Solar Wall Battery,20Ah Rechargeable Lithium Polymer Battery |
||

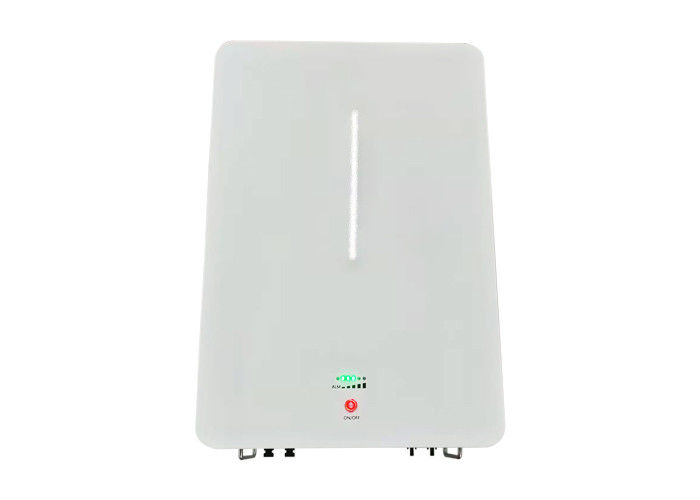

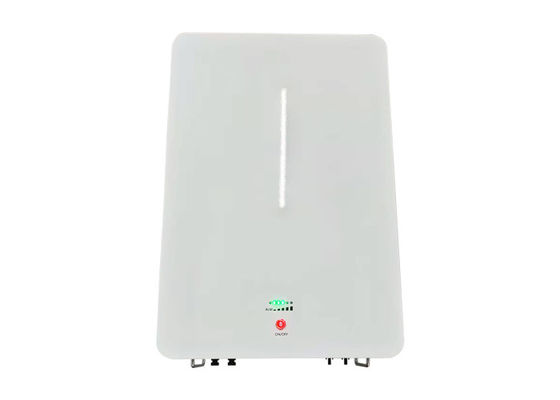

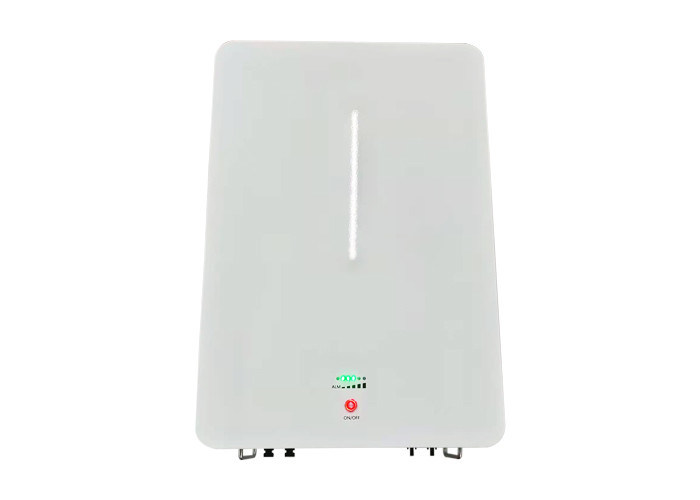

High voltage solar wall battery 400V 8kWh
1. Application of solar wall battery 400v 20Ah 8kWh
2. System control of High voltage 400v solar wall battery
2.1 Battery management system requirements
2.1.1 Battery management system function
(1) Single battery voltage detection;
Using special voltage measuring chip, including high precision A/D conversion module.Accurately and timely monitor the
status and changes of the battery during use.Effective to prevent improper use of the battery.
(2) Battery temperature detection;
NTC temperature detection scheme, with fault detection ability of broken wire and short circuit.
(3) Balanced management;
BMS can trigger passive equalization under certain conditions according to the capacity of individual cells in the battery
system.
(4) Battery working current detection;
A 300A hall sensor current acquisition scheme is adopted.
(5) Insulation resistance detection;
The standards and recommendations are shown in the following table:
The fault level Insulation resistance advice
0 >500Ω/V normal
1 Between 100Ω/V and 500Ω/V Timely maintenance
(6) Estimation of battery SOC;
The hall sensor is used to sample the current, complete current measurement and SOC estimation, and conduct fault
classification alarm for high and low SOC according to the control parameters provided by the battery manufacturer.
(7) Battery failure analysis and online alarm;
BMS has the self-diagnosis function of the system. After the system is powered on, it will test the voltage, temperature,
communication, clock, storage, internal communication and other components. Meanwhile, it will judge and alarm the
battery failures such as over voltage, under voltage, over current, over temperature, SOC too low/high and consistency
according to the information provided by party a.
(8) Monitor communications;
BMS USES high-speed CAN communication to report the battery status timely and reliably, effectively preventing battery
abuse.
3. 8kWh 12kwh tesla powerwall 400v battery specification
| Battery Specifications | ||
| Model No | 8kwh | 12kwh |
| Nominal Parameters | ||
| Voltage | 400V | 400V |
| Capacity | 20Ah | 30Ah |
| Energy | 8KwH | 12 KwH |
| Dimensions (L x W x H) | 810 x585 x195mm | 810 x585 x195mm |
| Weight | 80kg | 120kg |
| Basic Parameters | ||
| Life time(25°C) | 10 years | |
| Life cycles(80% DOD, 25°C) | 4000Cycles | |
| Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | |
| Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | |
| Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | |
| Lithium Battery Standard | IEC62619,UN38.3,ROHS,CE-EMC, UL1642 | |
| Enclosure protection rating | IP21 | |
| Electrical Parameters | ||
| Operation voltage | 312-456 Vdc | 312-456 Vdc |
| Max. charging voltage | 456 Vdc | 456 Vdc |
| Max. charging and discharging current | 20A | 30A |
| Max Power | 8000w | 8000W |
4. Description of 400V home solar power wall battery
The home solar battery is a 8kWh, 12kwh and 400V home battery designed for daily cycle use that re-charges with electricity generated from PV solar panels or utility grid. PAC Home Battery can provide safe power on-demand, or reliable backup if the power-grid goes down. PAC Home Battery is a wall mounted, rechargeable deep cycle LiFePO4 battery that is guaranteed for 5 years. PAC 400V high-voltage home storage battery is compatible with many AC inverters available today including Goodwe, Huawei, SolarEdge, Solax, etc.

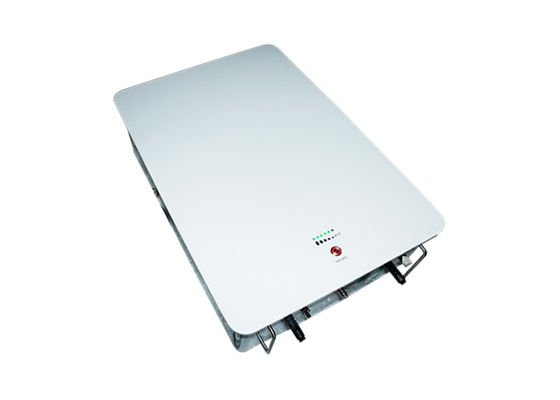

5. Case structure of 400V high voltage solar wall battery
6. Internal structure of Solar wall 400V lithium battery
7. Energy storage battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
8. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
