|Place of Origin:||Guangdong, China (Mainland)|
|Certification:||IEC62619, MSDS, UN38.3 etc|
|Model Number:||7KWH 24V 300Ah|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Standard export carton, wooden case, pallet etc.|
|Delivery Time:||15-20 days for samples, 20-30 days for bulk order|
|Payment Terms:||T/T, Western Union, Paypal|
|Supply Ability:||60,000kWh per month|
|Features:||Wall Type||Typical Capacity:||300Ah, 7KWH|
|Housing Material:||Metal Case||Battery Application:||Lithium Ion Solar Battery|
|Battery In Parallel:||Available||Nominal Voltage:||24V|
|Design:||With LCD And LED Indicators||Warranty:||10 Years|
300ah Lithium Ion Solar Battery,
7kwh Lithium Ion Solar Battery,
IP54 Lithium Battery Pack
7KWH 24V 300Ah lithium ion Solar Battery
7KWH Lithium battery pack for home solar energy storage, using long cycle life LiFeO4 battery cell, 15S/16S 6P assembly.
Voltronic, Sol-Ark, Schneider, outback
2. Specification of 7KWH 24V 300Ah lithium ion Solar Battery
|Electrical Characteristics||Nominal Voltage||25.6V|
|Cycle Life||>6000 Cycles @ 0.2C Charge/Discharge|
|Months Self Discharge||≤3% per month at 25℃|
|Standard Charge||Charge Voltage||28-29.2±0.2V|
|Charge Mode(CC/CV)||At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then, changed continuously with constant voltage of 58.4V until the current was not more than 0.02C.|
|Standard Discharge||Discharge Current||20A|
|Max. Continuous Current||100A|
|Disxcharge Cut-off Voltage||20-22V|
|Environmental||Charge Temperature||0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity|
|Disxcharge Temperature||-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity|
|Storage Temperature||0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity|
|Water Dust Resistance||IP54|
|Mechanical||Cell & Method||16S4P|
|Communication interface||RS485, RS232|

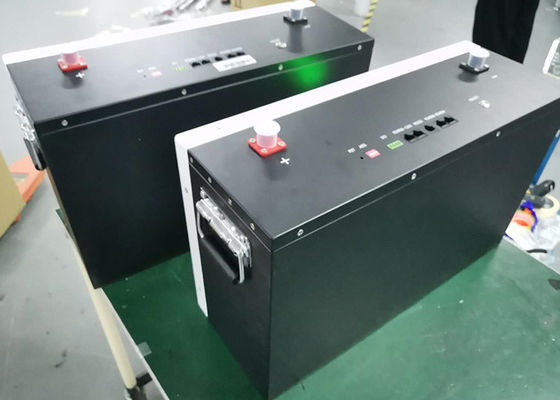

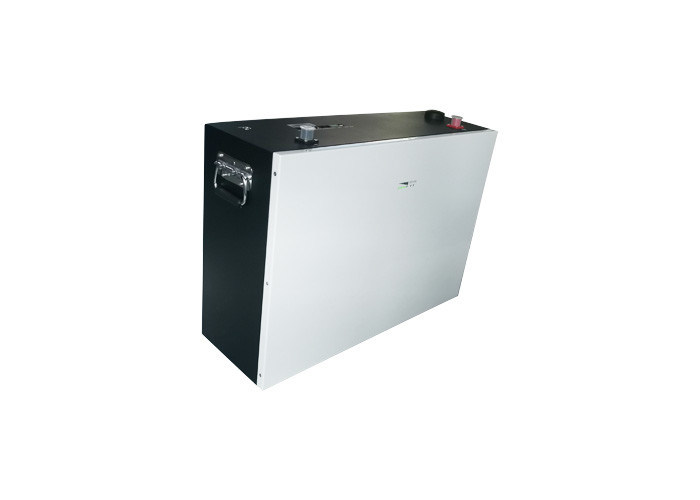

3. Appearane and Structure of 7KWH 24V 300Ah lithium ion Solar Battery
4. Parallel use of 7KWH 24V 300Ah lithium ion Solar Battery
When the battery needs to be used in parallel, the maximum connection is 10units, but we recommend to use 2-4 units according to application. The application needs power and communication connections as below, choose suitable accessories.
5. Communication connection of 7KWH 24V 300Ah lithium ion Solar Battery
There needs to be cascade communication with master level and slave level settings. The master level and slave level has different address.
6. Power Wall Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
