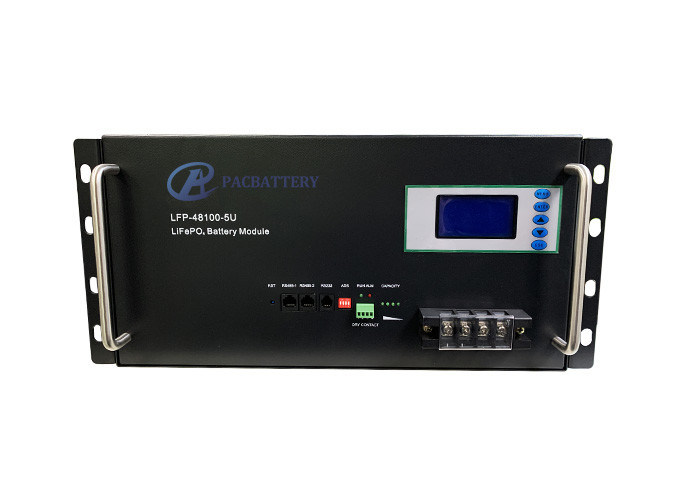

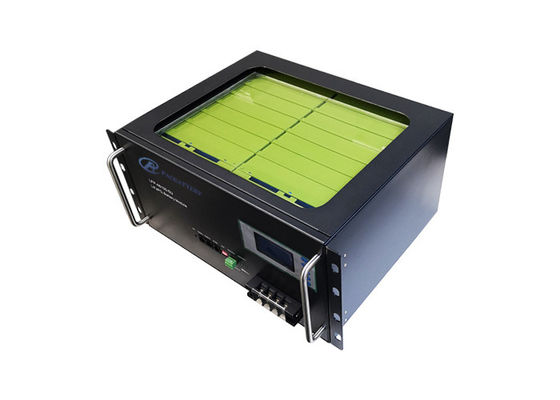

IP52 48v 100Ah 4800Wh Deep Cycle LiFePO4 Battery 5U

IP52 48v 100Ah 4800Wh Deep Cycle LiFePO4 Battery 5U

IP52 48v 100Ah 4800Wh Deep Cycle LiFePO4 Battery 5U
IP52 48v 100Ah 4800Wh Deep Cycle LiFePO4 Battery 5U
IP52 48v 100Ah 4800Wh Deep Cycle LiFePO4 Battery 5U
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: UN38.3, MSDS etc
Model Number: LiFePO4 48v 100Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Features: 5U Size, With LCD Size: 482*420*222mm
Application: Energy Storage System, Solar System, Telecom Nominal Voltage: 48v
Nominal Capacity: 100Ah Typical Energy: 4800Wh
Warranty: 5 Years Cycle Life: More Than 6000 Times
High Light:

4800Wh Deep Cycle LiFePO4 Battery

,

100Ah Deep Cycle LiFePO4 Battery

,

IP52 Lithium Ion Battery

48v 100Ah lithium ion battery 5U size


1. Warning for 5U size 48V 100Ah lithium ion battery

* The battery must be far away from heat source, high voltage, and avoid to be exposed in sunshine for long time;

* Do not put the battery in a charger or equipment with wrong terminals connected;

* Never connect the positive and negative of battery with metal;

* Avoid excessive physical shock or vibration; don't hit, fall, stamp on the battery;

* Without the permission of the manufacturer and guidance, forbidden to remove or to assemble the battery

* Do not mix the battery with different types or different models or from other manufacturers;

* Please far away from children or pets;

* Do not put disuse battery into a fire or water


2. BMS specification of deep cycle LiFePO4 battery 48v 100Ah

The BMS is designed for 15/16 series lithium battery.

The BMS have all functions which are:

  • overcharge detection function
  • over discharge detection function
  • over current detection function
  • short detection function
  • Temperature detection function
  • balance function
  • communicate function
  • Alarm function
  • Total capacity function
  • Storage history function



3. Specification of 48V 100Ah lithium battery(@Battery initial Temp25±5℃)

Electrical Characteristics Nominal Voltage 48V
Nominal Capacity 100Ah@0.2C
Energy 4800Wh
Internal Resistance ≤100mΩ
Cycle Life >6000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 80% Capacity.
Months Self Discharge ≤2% per month at 25℃
Standard Charge Charge Voltage 54.75±0.2V
Charge Mode(CC/CV) At 0℃~45℃ temperature, charged to 54.75V at a constant current of 0.2C, and then, changed continuously with constant voltage of 54.75V until the current was not more than 0.02C.
Charger Current 20A
Max.Charge Current 50A
Standard Discharge Discharge Current 20A
Max. Continuous Current 100A
Max.Pulse Current 200A(<3S)
Disxcharge Cut-off Voltage 37.5V
Environmental Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Disxcharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP52
Mechanical Cell & Method softpack cell, 15S1P
Case material metal
Dimension(L*W*H*TH) 482*420*222mm
Weight Approx. 56kgs
Terminal M8



4. Description of 48v 100Ah lithium ion battery

The 48v deep cycle lithium ion battery from PAC Technology is new environmentally friendly backup power system focus on energy storage and power backup fields. The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery. And the leader chemical technology, BMS technology and system design capabilities will bring excellent performance and reliability, and also provide the best solutions for industrial applications


5. 48V 100Ah 5U size battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

IP52 48v 100Ah 4800Wh Deep Cycle LiFePO4 Battery 5U 0


6. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
