|Place of Origin:||Guangdong, China (Mainland)|
|Certification:||UL1642, MSDS, ISO9001|
|Model Number:||400v 1000Ah|
|Minimum Order Quantity:||1set|
|Packaging Details:||Standard export carton, wooden case, pallet.|
|Delivery Time:||4weeks for samples; 6~8weeks for mass production|
|Payment Terms:||T/T, Western Union, Paypal|
|Supply Ability:||3Gwh per year|
|Typical Voltage:||400V||Battery Type:||EV-grade LiFePO4 Battery|
|Typical Capacity:||1000Ah||Cycle Life:||More Than 6000 Times|
|Weight:||About 4000kgs||Battery Application:||Factory, Hotel, Bank, School, Etc|
|Battery Protection:||Smart BMS, Breaker, High Pressure Box||Communication:||CANBus, RS485, RS232, Modbus|
|Depth Of Discharge:||90%||Battery Efficiency:||96%|
|Design Life:||More Than 10 Years||Dimension:||Customized|

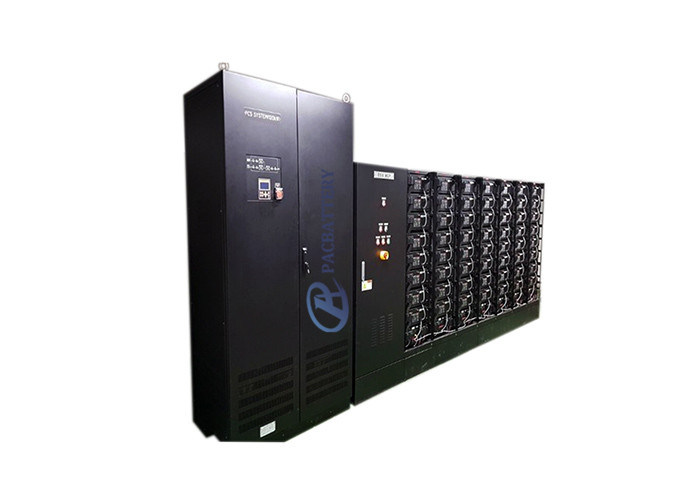

1000Ah High Voltage Lithium Battery,
ESS High Voltage Lithium Battery,
UL1642 Rack Mount Backup Battery

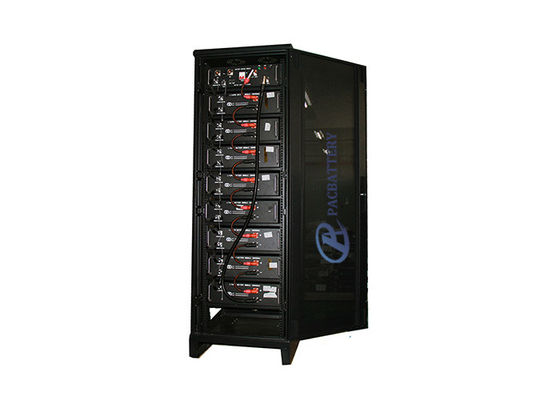

High voltage lithium ion battery rack mount backup
1. 400v high voltage lithium ion battery Operation Instruction
2. Key features of rack mount backup battery
3. 400V 1000Ah high voltage rack mount battery
Best consistency and long cycle life Lifepo4 Battery, widely use for
4. 400V 1000Ah 400kWh rack mount backkup LiFePO4 Battery Specification(@Battery initial Temp25±5℃)
High voltage lithium ion battery rack mount backup 400V 1000Ah
|1.2||Cell Type||EV-grade long cycle life lifepo4 battery cell|
|1.6||Communication||It has CANbus and RS485 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage,
current, environment temperature, and charging/discharging current.
|2.0||Standard charge current||200A|
|2.1||Depth of discharge||90%|
|2.2||Max. continuous charge current||500A|
|2.3||Standard discharge current||200A|
|2.4||Max. continuous discharge current||500A|
|2.5||Cycle life||＞4000 times|
|2.8||Operation Temperature Range||Charge 0~45℃, Discharge -20~55℃|
|2.9||Storage Temperature & Humidity Range||Less than 1 month:-20℃～45℃,45%RH～75％RH|
|Less than 3 months:-10℃～35℃,45%RH～75％RH|
Recommended storage environment:
Long time storage:
If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months.
We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!
5. Case Structure of High Voltage Battery Module
|1||connector||INPUT P+||Output terminal|
|2||connector||INPUT P-||Output terminal|
|7||connector||OUTPUT P-||Set the address|
6. Delivery of battery energy storage system
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
