| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | IEC62619, MSDS, UN38.3 etc |
| Model Number: | 48v 100Ah 150Ah 200Ah |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 5-7 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Features: | Good Consistency, Stable Performance | Typical Voltage: | 48V/51.2V |
|---|---|---|---|
| Battery Type: | EV-grade LiFePO4 Battery | Typical Capacity: | 100Ah 150Ah 200Ah |
| Battery Application: | On Grid/off Grid/hybrid Energy Storage System | Logo: | Accept Customized Logo On Battery |
| Design: | With LCD And LED Indicators | Warranty: | 5-10 Years |
| High Light: | 200Ah Home Energy Storage Battery,IP21 Home Energy Storage Battery,MSDS Rack Mounted Lithium Battery |
||

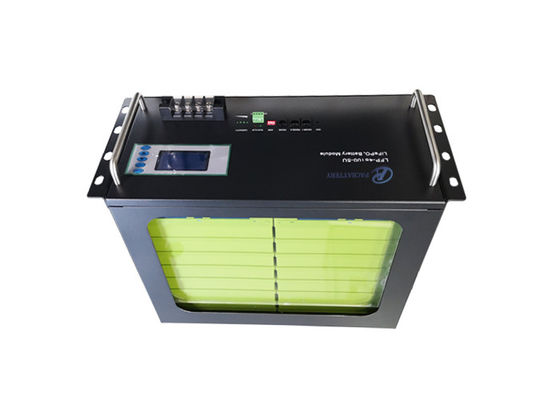

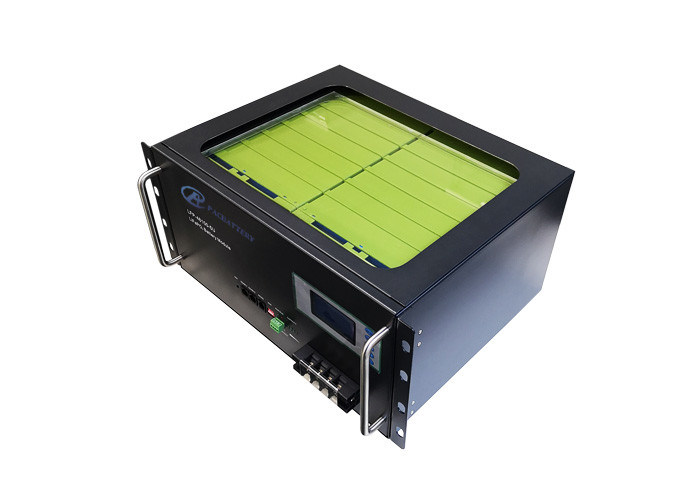

Home energy storage battery 48v 100Ah 200Ah rack mounted
1. Description of 48V energy storage battery rack mounted
2. Specification of 48v home energy storage battery
| Battery Specifications | |||
| Model No | 48V 100Ah | 48v 150Ah | 48v 200Ah |
| Nominal Parameters | |||
| Voltage | 48V | 48V | 48V |
| Capacity | 100Ah | 150Ah | 200Ah |
| Energy | 4.8KwH | 7.2 KwH | 9.6 KwH |
| Dimensions (L x W x H) | 442 x430 x222mm | 442 x480 x222mm | 442x680x222mm |
| Weight | 46kg | 72kg | 90kg |
| Basic Parameters | |||
| Life time(25°C) | 10 years | ||
| Life cycles(80% DOD, 25°C) | 6000Cycles | ||
| Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | ||
| Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | ||
| Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | ||
| Lithium Battery Standard | IEC62619,UN38.3,ROHS,CE-EMC | ||
| Enclosure protection rating | IP21 | ||
| Electrical Parameters | |||
| Operation voltage | 42-53.5 Vdc | 42-53.5 Vdc | 42-53.5 Vdc |
| Max. charging voltage | 53.5 Vdc | 53.5 Vdc | 53.5 Vdc |
| Max. charging and discharging current | 100A | 100A | 100A |
| Max Power | 4800w | 4800W | 4800W |
3. Application of Good consistency lithium battery
4. Key features of rack mounted 48v lithium battery
5. System running diagram of 48v Lifepo4 battery
6. Energy storage battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
Contact Person: Ada Wang
Tel: 0086 13652343280
