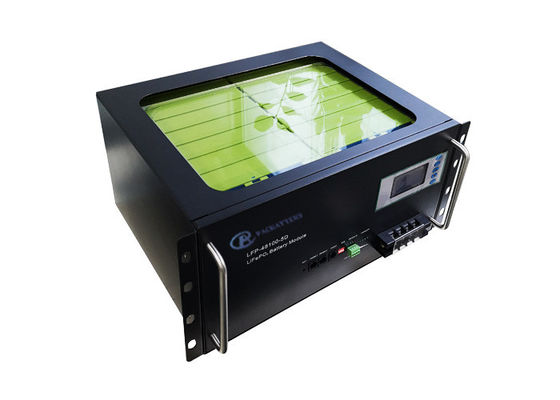

15S4P RS232 UPS Rechargeable Battery 48v 100Ah 150Ah 200Ah

15S4P RS232 UPS Rechargeable Battery 48v 100Ah 150Ah 200Ah

15S4P RS232 UPS Rechargeable Battery 48v 100Ah 150Ah 200Ah
15S4P RS232 UPS Rechargeable Battery 48v 100Ah 150Ah 200Ah
15S4P RS232 UPS Rechargeable Battery 48v 100Ah 150Ah 200Ah
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: ISO9001, ISO14001, UL, CE, ROHS, etc
Model Number: 48v 100Ah 150Ah 200Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet.
Delivery Time: 4weeks for samples; 6~8weeks for mass production
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3Gwh per year
Contact Now
Detailed Product Description
Features: Long Cycle Life Lithium Battery For Backup Typical Capacity: 100ah, 150ah, 200Ah
Weight: About 90kgs Protocol: RS232, RS485, CANbus, Modbus Etc
Battery Application: UPS Backup, 4G/5G Base Station Battery Cycle: Up To 6000 Times
Warranty: Up To 10 Years Battery Energy: 4.8kwh, 7.2kwh, 9.6kwh
High Light:

RS232 UPS Rechargeable Battery

,

15S4P UPS Rechargeable Battery

,

200Ah UPS Backup Battery

UPS rechargeable battery 48v 100Ah 150Ah 200Ah

1. Instruction of 48v UPS rechargeable battery

The ESS Lithium iron Phosphate battery pack, is using prismatic high safety LiFePO4 battery cell, with 100ah/150ah/200ah capacity, to provide 5kW emergency backup power. The battery pack is widely used in UPS and solar energy storage system, to ensure nomal supply of electric power in case the AC fail. The battery modules are installed in standard 19”cabinets and work with on grid/off grid hybrid inverter. The battery modules can be connected in parallel to achieve higher capacity.

2. Product circuit principle of 48v battery pack
The Product management system is made up of independent BMS.

Unit BMS refers to the built-in within 48v battery module, used for acquisition of monomer battery parameters, such as monomer voltage, total voltage, charge/discharge current, capacity, battery temperature etc, used for battery charging and discharging process management, and effective protection and alarm function of the circuit system (protection and alarm functions), by collecting and protection circuit, electrical and communication interface and thermal management devices and so on.


3. Specification of 48v 100Ah 150Ah 200Ah LiFePO4 battery(@Battery initial Temp25±5)

No. Item General Parameter Remark
1.1 Description

UPS rechargeable battery 48v 100Ah 150Ah 200Ah


1.2 Cell Type EV-grade 50Ah LiFePO4 battery cell
1.3 Typical Capacity 100Ah 150Ah 200Ah
1.4 Typical Voltage 48V
1.5 Typical power 4.8kWh/7.2kwh/9.6kwh
1.6 Communication It has CANbus and RS485 standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage,
current, environment temperature, and charging/discharging current.

1.7 Battery combination 15S2P/15S3P/15S4P
1.8 Charging voltage 54.75V
1.9 End voltage 30~37.5V
2.0 Standard charge current 50A
2.1 Internal Impedance ≤100mΩ
2.2 Max. continuous charge current 125A
2.3 Standard discharge current 50A
2.4 Max. continuous discharge current 150A
2.5 Cycle life >6000 times
2.6 Weight 90kgs
2.7 Dimension customized
2.8 Operation Temperature Range Charge 0~45℃, Discharge -20~55℃
2.9 Storage Temperature & Humidity Range Less than 1 month:-20℃~45℃,45%RH~75%RH
Less than 3 months:-10℃~35℃,45%RH~75%RH

Recommended storage environment:

15℃~35℃,45%RH~75%RH

3.0

Long time storage:

If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months.

We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!

4
. Application of 48V LiFePO4 battery
1. Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telecom Base / CATV system / Computer Server Center / Medical Instrument / Military Equipment


15S4P RS232 UPS Rechargeable Battery 48v 100Ah 150Ah 200Ah 0



5. BMS Protect parameter of 48V UPS battery

Items Details Standard
Cell overcharge protection Overcharge detection voltage 3.65±0.025V
Overcharge detection delay time Typical:1.0s
Overcharge release voltage 3.34±0.02V
Cell over-discharge protection Over-discharge detection voltage 2.7±0.02V
Over-discharge detection delay time Typical:1.0s
Over-discharge release voltage 2.9±0.02V or charge release
Over-current protection discharge Over-current protection current1 300±10A
discharge Over-current detection delay time 1 5S
discharge Over-current protection current 2 350±10A
discharge Over-current detection delay time 2 500ms
Charge OC protection current 150±10A
Short protection Short protection current 500±10A
Protection condition Load short
Detection delay time ≤300us
Protection release condition Charging release
Temperature(T) protection Charge high T protection 55±3℃
Charge high T recover 50±5℃
Discharge high T protection 65±5℃
Discharge high T recover 60±5℃
Charge low T protection ‘-5±2℃
Charge low T recover 0±5℃
Discharge low T protection -20±5℃
Discharge low T recover ’-20±5℃
Balance Balance threshold voltage 3.45V
Communication It has CANBus and RS485 standard communication interface, it can real-time
monitoring the capacity of battery bank, the voltage, current, environment
temperature, and charging/discharging current.
Alarm It has over-temperature, over charge, under-voltage, over-current, short circuit alarm function.


6. Delivery of rack type 48v battery pack

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

15S4P RS232 UPS Rechargeable Battery 48v 100Ah 150Ah 200Ah 1

7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
