| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | UL1642, MSDS, ISO9001 |
| Model Number: | 5kwh 25.6v powerwall battery |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Typical Energy: | 5kwh | Typical Capacity: | 200Ah @ 25.6Vdc |
|---|---|---|---|
| Cycle Life: | More Than 6000 Times | Battery Application: | Home Solar Battery, Home Energy Storage System |
| Logo: | Accept Customized Logo On Battery | Design: | On/Off Button, LED Capacity Indicators |
| Warranty: | 5 Years | Dimension: | 510*485*180mm |
| High Light: | 25.6v LiFePO4 Rechargeable Battery,5kWh LiFePO4 Rechargeable Battery,200Ah Powerwall Energy Storage Battery |
||
5kWh LiFePO4 rechargeable battery 25.6v powerwall home energy storage with inverter

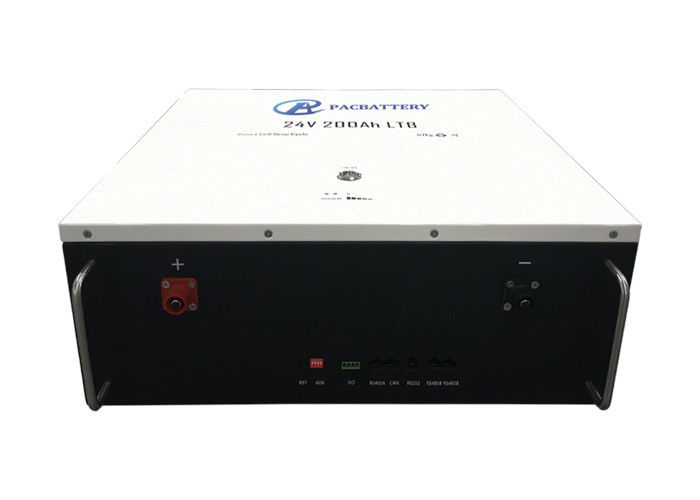

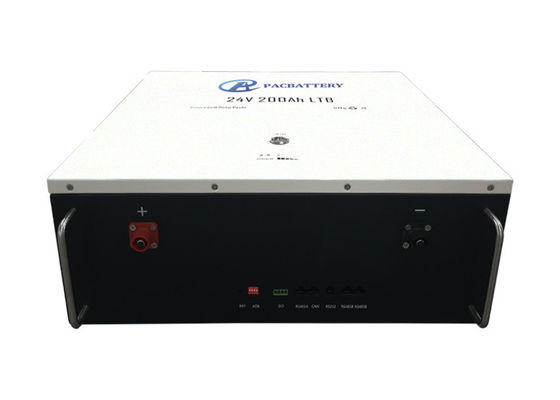

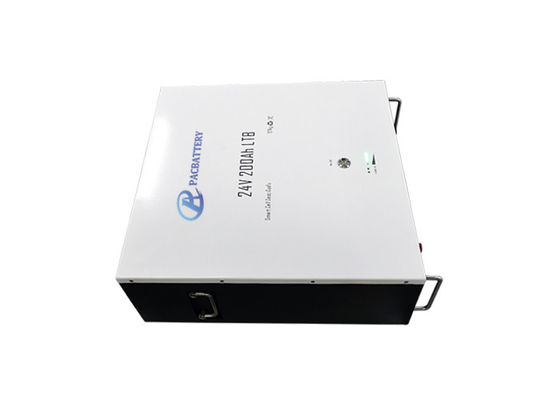

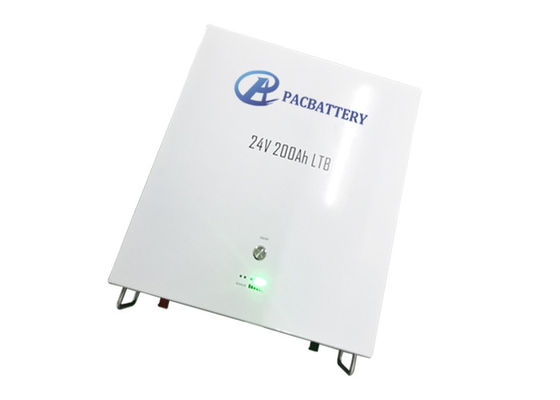

1. Appearance design of 5kWh powerwall battery with inverter
2. Advantages of 5kWh 24V home solar power wall battery in sofeware:
3. PAC Power wall battery is compatible with different brands of inverter: Goodwe, Growatt, InfiniSolar, Luxpower, Deye, Sol-ark, Solax, Victron, Schneider, EAST, SoFar, Kstar, Huawei, etc
4. Specification of 24V 200Ah 5kWh Home solar battery
| NO | Items | Description | |
| Normal Specification | |||
| 1 | Nominal Voltage | 25.6V (LFP-8S) | |
| 2 | Normal Capacity | 200Ah | |
| 3 | Internal Resistance | ≤50mΩ @1kHz AC | |
| Standard Charge | |||
| 4 | Battery operation temperature range @charging | 0~45℃ | |
| 5 | Normal charge voltage | 29.2±0.2V | |
| 6 | Recommended float charge voltage(for Standby use) | 28.8±0.2V | |
| 7 | Allowed MAX charge current | 100A@Battery initial Temp 25±5℃ | |
| 8 | Recommended charge current | ≤100A | |
| Standard Discharge | |||
| 9 | Battery operation temperature range @discharging | -20~55℃ | |
| 10 | Factory voltage | 25.8~26.4V(40%-60%) | |
| 11 | Allowed discharge current | 120A | |
| 12 | Pulse discharge current | 300A withstand 3s | |
| 13 | Discharge cut-off voltage | 20~21.5V | |
| Mechanical Characteristics | |||
| 14 | Dimension | Length 510±2mm | |
| Width 485±2mm | |||
| Height 180±2mm | |||
| 15 | Weight | About: 57±0.5Kg | |
| Storage | |||
| 16 | Storage Temperature & Humidity Range | Short: within one month | -20~+ 55℃, 5~75%RH |
| Long term: above one month | -10~+45℃, 5~75%RH | ||
| 17 | Self-discharge rate | Residual capacity | ≤2% per month; |
| Reversible capacity | ≤1%per month; | ||
5. Connectors of Home solar 5kWh Powerwall battery
6. Delivery of Home solar lithium battery
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
