|Place of Origin:||Guangdong, China (Mainland)|
|Certification:||IEC62133, ROHS, MSDS, UN38.3 etc|
|Model Number:||Deep cycle LiFePO4 battery 12.8v 9Ah|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Standard export carton, wooden case, pallet etc.|
|Delivery Time:||15-20 days for samples, 20-30 days for bulk order|
|Payment Terms:||T/T, Western Union, Paypal|
|Supply Ability:||60,000kWh per month|
|Suggested Adapter:||14.6V 1.8A~4.5A||House Material:||Plastic ABS|
|Weight:||About 1.34kgs||Pulse Current:||20A(<3s)|
|Battery Protection:||Built-in BMS||Dimension:||151*65*94*100mm|
12v lifepo4 deep cycle battery,
lithium iron phosphate deep cycle battery

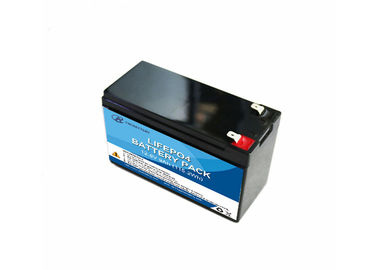

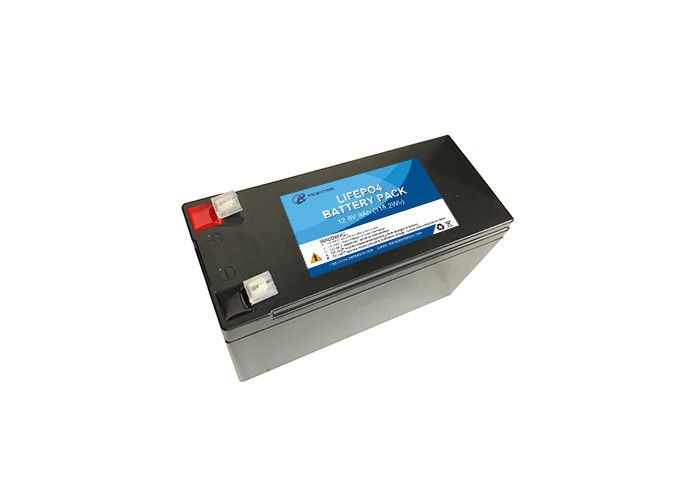

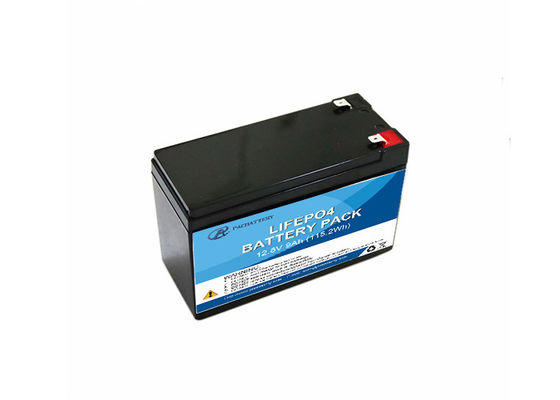

12 volt Deep cycle LiFePO4 battery pack 9Ah 26650 lithium cell 4S3P for golf trolley
1. General information
Our company specialized in producing:
• Cylindrical Lithium ion battery cell and LiFePO4 cell manufacturing and assembly, with model of 18650, 26650, 14250, 32650 etc.
• Battery assembly with International branded 18650 cells, like Samsung, LG, Panasonic, Sony, etc..
• Battery management system (BMS/PCM) design, production is done in-house.
2. Warning and Tips for deep cycle lifepo4 battery
* Never put the battery into water;
* Never connect the positive and negative of battery with metal;
* Avoid excessive physical shock or vibration; don't hit, fall, stamp on the battery;
* Do not mix the battery with different types or different models or from other manufacturers;
* Please use the matched or suggested charger for this battery;
* If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
* Please far away from children or pets;
3. Test conditions of temperature performance
The battery Cells shall be charged with constant current 0.2C to3.65V, then charging with constant voltage 3.65V to 0.01C under 20±5℃ and discharged at 0.2C to 2.0 V. Cells shall be stored for 4 hours at the test temperature prior to discharging and then shall be discharged at the test temperature, The percentage shall be calculated using discharging capacity compared to the minimum capacity.
4. Specification of 26650 4S3P 12V 9Ah battery(@Battery initial Temp25±5℃)
|1||Nominal Voltage||12.8V (LFP-4S)|
|3||Internal Resistance||≤80mΩ @1kHz AC|
|4||Battery operation temperature range @charging||0~45℃|
|5||Normal charge voltage||14.6±0.2V|
|6||Recommended float charge voltage(for Standby use)||13.8±0.2V|
|7||Allowed MAX charge current||4.5A@Battery initial Temp 25±5℃|
|8||Recommended charge current||≤4.5A|
|9||Battery operation temperature range @discharging||-20~60℃|
|10||Output voltage range||10.0~14.6V|
|11||Allowed discharge current||9A|
|12||Pulse discharge current||20A withstand 3s|
|13||Discharge cut-off voltage||9.2~11.2V|
|16||Storage Temperature & Humidity Range||Short: within one month||-20~+ 60℃, 5~75%RH|
|Long term: above one month||-10~+45℃, 5~75%RH|
|17||Self-discharge rate||Residual capacity||≤3% per month;|
|Reversible capacity||≤1.5%per month;|
5. Discharge performance of 12V LiFePO4 battery at different temperature
6. Delivery of 12v golf trolley battery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
