| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/ODM |
| Certification: | IEC61960, IEC62133, UN38.3, MSDS |
| Model Number: | 4S3P-26650-3000mAh |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | White inner box, standard export carton |
| Delivery Time: | 7-20 days for samples, 15-35 days for mass production |
| Payment Terms: | T/T |
| Supply Ability: | 100,000pcs/day |
| Type: | Lithium Iron Phosphate Battery | Cell Model: | 26650 |
|---|---|---|---|
| Nominal Voltage: | 12.8V | Nominal Capacity: | 9Ah |
| Items: | Lithium Iron Phosphate Deep Cycle Battery | Application: | Voting Machine |
| Keywords: | 12.8V 9Ah, Lithium Iron Phosphate Battery, Voting Machine Battery | Protection: | Built-in PCM |
| Standard Discharge Current: | 0.2C, 1.8A | Standard Charge Current: | 0.2C, 1.8A |
| Certificate: | IEC61960, IEC62133, UN38.3, MSDS | Cycle: | 2000 Times |
| High Light: | 12v lifepo4 deep cycle battery,lithium iron phosphate deep cycle battery |
||

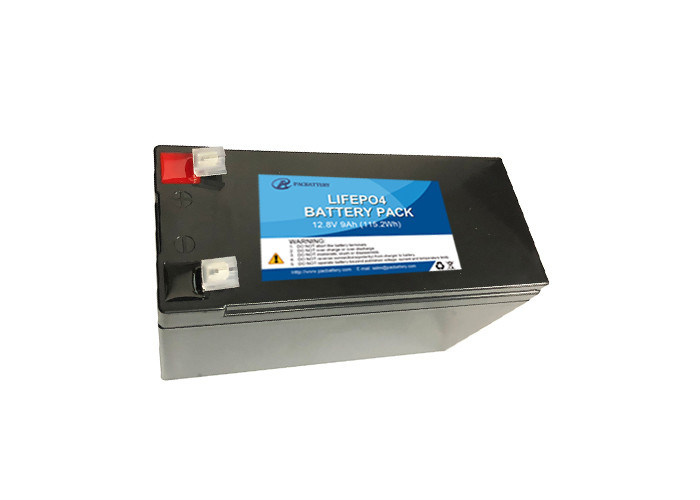

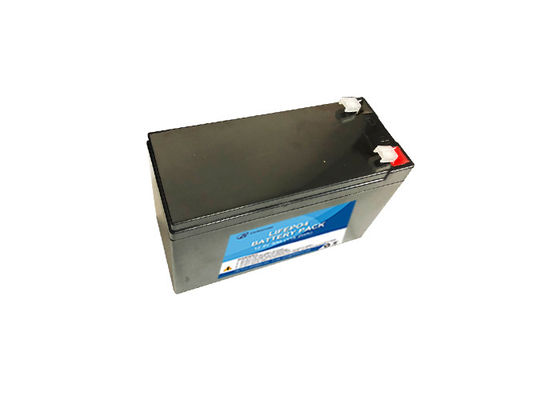

Lithium iron phosphate deep cycle battery 4S3P 12.8V 9Ah 115.2Wh, use 26650 cylindrical battery cell, long life cycle, high safety, light weight, standard size.
Applications:
UPS
Solar &Wind power system
Golf Cart
Electric vehicle , E-bike, E-rickshaw
Lighting
Voting machine
Features of Lithium iron phosphate deep cycle battery 4S3P 12.8V 9Ah 115.2Wh
|
No.
|
Item
|
General Parameter
|
|
1.1
|
Description
|
Lithium iron phosphate deep cycle battery 4S3P 12.8V 9Ah 115.2Wh
|
|
1.2
|
Cell Model
|
26650-3000mAh
|
|
1.3
|
Typical Capacity
|
9Ah |
|
1.4
|
Typical Voltage
|
12.8V
|
|
1.5
|
End of Charge Voltage
|
15.6V
|
|
1.6
|
Charge Current
|
0.2C
|
|
1.7
|
Charging time
|
5-6 Hours
|
|
1.8
|
End discharge Voltage
|
8.0V
|
|
1.9
|
Max continuous charge current
|
9A
|
|
2
|
Maximum Peak Discharging Current
|
20A (less than 3S)
|
|
2.1
|
Over-discharge Voltage Protection cell
|
2.5V
|
|
2.2
|
Over-Current Discharge Protection
|
18A
|
|
2.3
|
Short circuit protection
|
With protection
|
|
2.4
|
Dimension
|
100 mm (T)*65 mm (W) *151mm (L)
|
|
2.5
|
Weight
|
1.34kgs
|
|
2.6
|
Operation Temperature Range
|
Charge 0~45 C, Discharge -20~60 C
|
PAC BATTER advantage:
Safety is highly reliable, pass the IEC62133 test and IEC61960, UN38.3 test.
Low local action battery, the charge retention reached 92% after 1 year, 80% after 3 years and 75% after 6 years.
Working temperature range is from -40 degree to + 75 degree, can be operated in bad condition.
Hi-Capacity battery charge/discharge reached 30C in maximum.
The highly automated equipment is in the lead in China.
• By Air Door to Door Service
• By Sea Door to Door Service
• By Express: EMS, TNT, UPS, FedEx
PAC BATTERY provide One-stop solution:
Lithium battery cell manufacturing, prismatic shape and other special shap battery, curved battery.
Cylindrical Li ion battery cell manufacturing, 18650, 26650, 14500, 32650, 32700
Battery management system (BMS) design, PCM, PCB, production is done in-house
Plastic tooling, injection is done in-house
Battery packing is done in-house
Why Choose Us:
Reliable quality -- We have 10 years of battery industry experience. Automated production line and precise equipment. In strict accordance with international standards for production inspection, to ensure product quality and safety.
Positive service -- We give response for all inquiries/questions in 24 hours. We have a professional R&D team, we can provide professional customized and one-stop services.
Taking responsibility -- Pac members to proactively take responsibility, we always offer the best solution to our customers.
