| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | IEC62619, MSDS, UN38.3 etc |
| Model Number: | 48v 100Ah 150Ah 200Ah |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 5-7 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Features: | Good Consistency, Stable Performance | Typical Voltage: | 48V/51.2V |
|---|---|---|---|
| Battery Type: | EV LiFePO4 Battery Cells | Typical Capacity: | 100Ah 150Ah 200Ah |
| Battery Application: | On Grid/off Grid/hybrid Energy Storage System | Logo: | Accept Customized Logo On Battery |
| Design: | With LCD And LED Indicators | Warranty: | 5 Years |
| High Light: | 200Ah Energy Storage Lithium Battery,4800w Energy Storage Lithium Battery,EV LiFePO4 Cells |
||

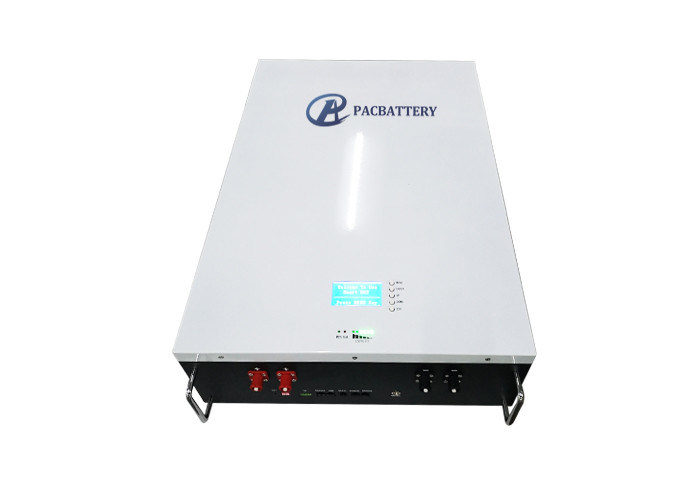

Good consistency 48V 100Ah 150Ah 200Ah Powerwall energy storage lithium battery with EV cells
1. Description of 48V powerwall energy storage lithium battery
2. Application of Good consistency Powerwall lithium battery
3. Key features of Powerwall battery with EV Lifepo4 cells
4. Powerwall energy storage lithium battery with EV cells
| Battery Specifications | |||
| Model No | 5KWH-A161 | 7KWH -A149 | 10KWH-A162 |
| Nominal Parameters | |||
| Voltage | 48V | 48V | 48V |
| Capacity | 100Ah | 150Ah | 200Ah |
| Energy | 4.8KwH | 7.2 KwH | 9.6 KwH |
| Dimensions (L x W x H) | 680 x480 x180(220)mm | 680 x480 x180(220)mm | 680x480x180(220)mm |
| Weight | 46kg | 72kg | 90kg |
| Basic Parameters | |||
| Life time(25°C) | 10 years | ||
| Life cycles(80% DOD, 25°C) | 6000Cycles | ||
| Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | ||
| Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | ||
| Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | ||
| Lithium Battery Standard | IEC62619,UN38.3,ROHS,CE-EMC | ||
| Enclosure protection rating | IP21 | ||
| Electrical Parameters | |||
| Operation voltage | 42-53.5 Vdc | 42-53.5 Vdc | 42-53.5 Vdc |
| Max. charging voltage | 53.5 Vdc | 53.5 Vdc | 53.5 Vdc |
| Max. charging and discharging current | 100A | 100A | 100A |
| Max Power | 4800w | 4800W | 4800W |
5. System running diagram of 48v Powerwall battery

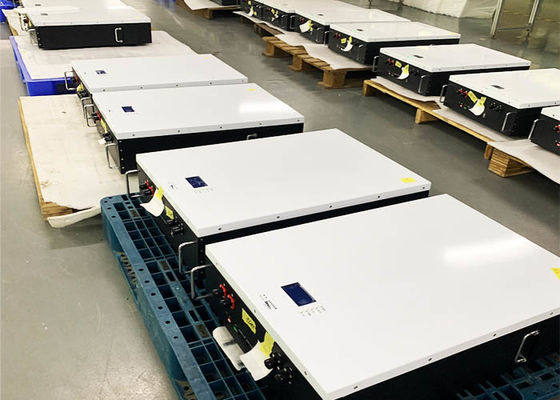

6. Energy storage battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
