| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | MSDS, UN38.3, UL1642, ISO9001 etc |
| Model Number: | 400v 8kwh 12kwh |
| Minimum Order Quantity: | 4pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 5-7 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Typical Voltage: | 400V | Battery Type: | EV Grade Lifepo4 Battery |
|---|---|---|---|
| Typical Capacity: | 20Ah | Battery Application: | Household Storage System, Home Solar System |
| Logo: | Accept Customized Logo On Battery | Compatible With: | 3 Phase Solar Inverter Of Huawei, Goodwe, Etc |
| Cycle Life: | More Than 4000 Times | Warranty: | 5-15 Years |
| High Light: | 400V Lithium Ion Home Battery,12kWh Lithium Ion Home Battery,8kWh Tesla Power Wall Battery |
||
400V Lithium Ion Home Battery 8kWh 12kWh tesla power wall
1. Features of 400V powerwall home battery 8kwh 12kwh
2. Description of 400V home solar power wall battery

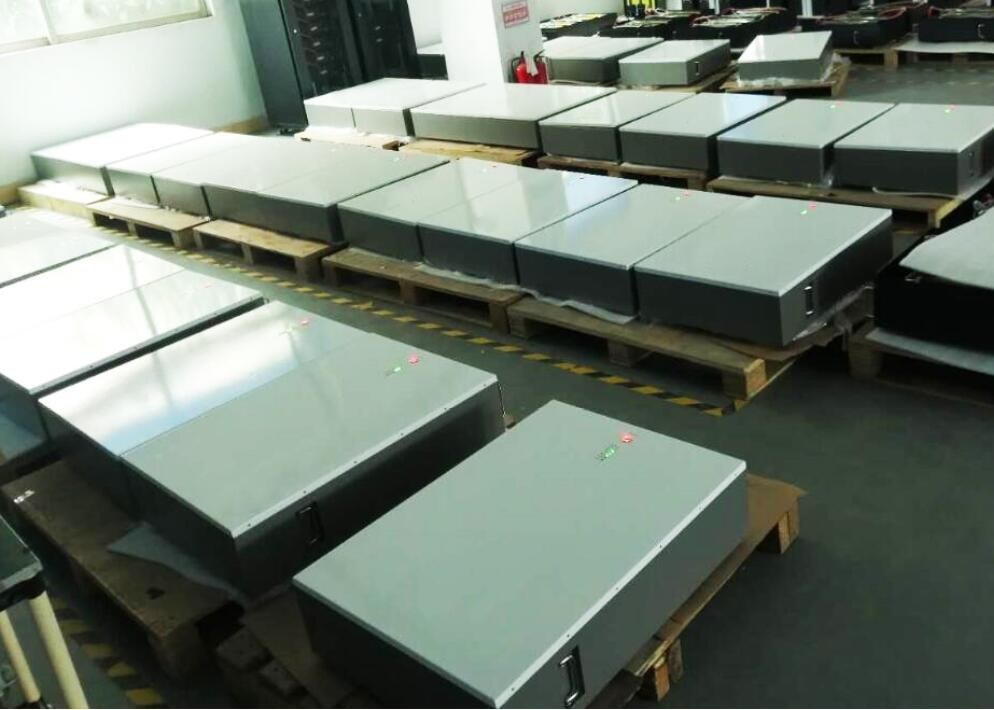

The home solar battery is a 8kWh, 12kwh and 400V home battery designed for daily cycle use that re-charges with electricity generated from PV solar panels or utility grid. PAC Home Battery can provide safe power on-demand, or reliable backup if the power-grid goes down. PAC Home Battery is a wall mounted, rechargeable deep cycle LiFePO4 battery that is guaranteed for 5 years. PAC 400V high-voltage home storage battery is compatible with many AC inverters available today including Goodwe, Huawei, SolarEdge, Solax, etc.
3. 8kWh 12kwh tesla powerwall 400v battery specification
| Battery Specifications | ||
| Model No | 8kwh | 12kwh |
| Nominal Parameters | ||
| Voltage | 400V | 400V |
| Capacity | 20Ah | 30Ah |
| Energy | 8KwH | 12 KwH |
| Dimensions (L x W x H) | 810 x585 x195mm | 810 x585 x195mm |
| Weight | 80kg | 120kg |
| Basic Parameters | ||
| Life time(25°C) | 10 years | |
| Life cycles(80% DOD, 25°C) | 4000Cycles | |
| Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | |
| Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | |
| Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | |
| Lithium Battery Standard | IEC62619,UN38.3,ROHS,CE-EMC, UL1642 | |
| Enclosure protection rating | IP21 | |
| Electrical Parameters | ||
| Operation voltage | 312-456 Vdc | 312-456 Vdc |
| Max. charging voltage | 456 Vdc | 456 Vdc |
| Max. charging and discharging current | 20A | 30A |
| Max Power | 8000w | 8000W |
4. Case structure of 400V high voltage home solar battery
5. Internal structure of Solar wall 400V lithium battery
6. Energy storage battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
