| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/PAC |
| Certification: | UL, ROHS, UN38.3, MSDS etc |
| Model Number: | 48100 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Battery Application: | Solar Storage | Spec.: | 48V 200Ah |
|---|---|---|---|
| Max Charge Current: | 100A | Energy: | 10KWh |
| Pulse Current: | 200A | Warranty: | 5 Years |
| Cycle Life: | 6000 Times | ||
| High Light: | 200Ah Energy Storage Lithium Battery,51.2V Energy Storage Lithium Battery,10KWH Solar Storage Lithium Battery |
||

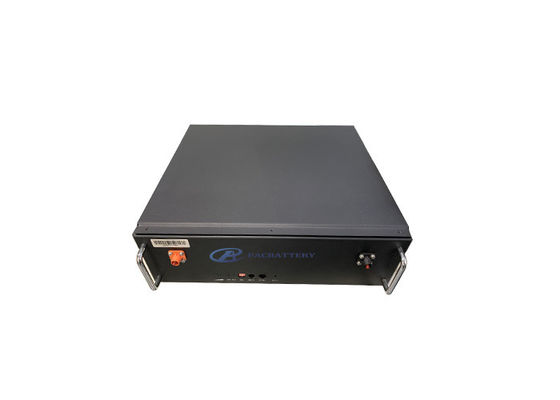

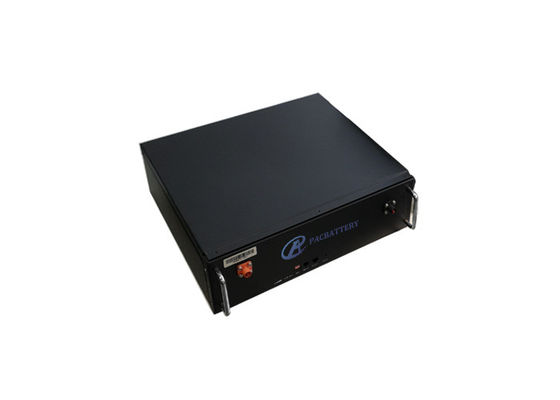

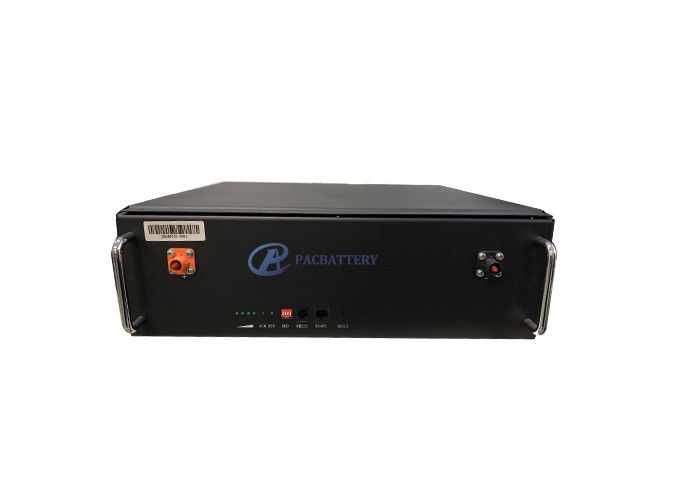

48V 51.2V 200Ah 10KWH Battery Storage for Solar
We use long cycle life LiFePO4 battery cell for this 48V 200Ah battery storage, auto industrial standard, it is safety and long cycle life more than 6000 times.
Specification of 48V/51.2V Battery Storage for Solar
| Electrical Characteristics | Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah@0.2C | |
| Energy | 10kWh | |
| Internal Resistance | ≤40mΩ | |
| Cycle Life | >6000 Cycles @ 0.2C Charge/Discharge | |
| Months Self Discharge | ≤3% per month at 25℃ | |
| Standard Charge | Charge Voltage | 58.4±0.2V |
| Charge Mode(CC/CV) | At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then, changed continuously with constant voltage of 58.4V until the current was not more than 0.02C. | |
| Charger Current | 20A | |
| Max.Charge Current | 100A | |
| Standard Discharge | Discharge Current | 20A |
| Max. Continuous Current | 100A | |
| Limiting current | 20A | |
| Disxcharge Cut-off Voltage | 40-42.6V | |
| Environmental | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP54 | |
| Mechanical | Cell & Method | 16S4P |
| Plastic Case | Metal | |
| Dimension(L*W*H*TH) | 650*485*180mm | |
| Weight | Approx. 98kgs | |
| Communication interface | RS485, RS232 |
Application:
> Wind-Solar Energy Storage system > Solar street lights > Off-grid energy storage
> Household energy storage > Telecom backup system > Mobile base stations
> Emergency backup energy sources > Uninterruptible power system > Grid load shifters
> Electric Golf Car > Electric vehicles > Electric motorcycles
> Electric forklifts > Electric boats, etc...
Delivery:
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
6. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
