Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | PAC/OEM |
Certification: | CE, RoHs, MSDS, UN38.3 |
Model Number: | 12.8V 30Ah |
Minimum Order Quantity: | 1pc |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export carton, wooden case, pallet etc. |
Delivery Time: | 3-20 days for samples, 10-30 days for bulk order |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 60,000kWh per month |
Nominal Voltage: | 12.8V | Keyword: | 12.8V 30Ah SLA Replacement Battery, 12V LiFePO4 Battery Pack |
---|---|---|---|
Nominal Capacity: | 60Ah | Weight: | 3.9kgs |
Battery Terminal: | M5 | Output Voltage: | 12Vdc |
Dimension: | 165*175*125*125mm | ||
High Light: | lithium battery pack,lead acid battery replacement |
For more SLA Replacement battery, please find below our battery model list:
SLA replacement battery model list-PAC Tech.pdf
Testing method of Battery cycle life
Discharge with the current of 0.33C until it can’t discharge, and then rest it for 1h. Charge the battery following CC (0.33C)/CV (14.6V) mode to full capacity, and then rest it for 1h. Repeat above process until full charged capacity is no more than 80% of normal value. Accumulated times is defined as cycle life.
Testing method of Battery rated capacity
Rest for 1 hour after fully charged, then discharge with 0.5C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 120 minutes, you can stop and define the Discharging current * time value (Ah) as battery capacity.
Specification of LiFePO4 battery cell 3270
Items | Specification | Remarks | |
Nominal Capacity | 6000mAh | 0.2 C Discharge | |
Nominal Voltage | 3.2V | Work voltage | |
Discharge Cut-off Voltage | 2.0V | 0.2 C Discharge | |
Charge Limited Voltage | 3.65±0.03V | 0℃~45℃ | |
Standard Charge Current | 0.2 C | 0℃~45℃ | |
Standard Discharge Current | 0.2 C | -10℃~60℃ | |
Rapid Charge Current | 0.5C | 0℃~45℃ | |
Rapid Discharge Current | 0.5C | -10℃~60℃ | |
Max. Discharge Current | 3C | Limited Voltage 2.0V | |
Max. Pulse Discharge Current | 5C | Pulse ms | |
Internal Impedance | ≤25mΩ | At AC 1kHz | |
Weight | About 140.0g | ±2g | |
Storage Temperature Range | ≤one month | -20℃ ~ 45℃ | Voltage of shipment |
≤three months | -20℃ ~ 35℃ | 2.9-3.32V | |
≤a year | -20℃ ~ 25℃ |

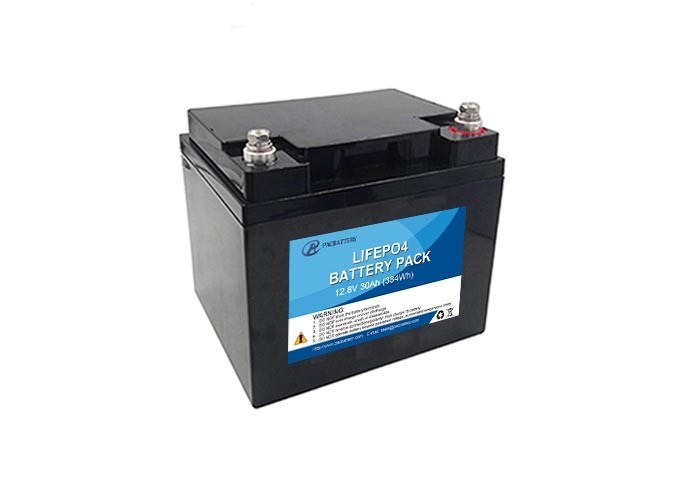

12.8V 30Ah SLA replacement battery Specification(@Battery initial Temp25±5℃)
No. | Item | General Parameter | Remark |
1.1 | Description | 12.8V 30Ah SLA replacement battery, 12V LiFePO4 battery pack | 4S5P |
1.2 | Battery Type | LiFePO4 32700 cell, 6000mAh, 3.2V | |
1.3 | Typical Capacity | 30Ah | |
1.4 | Typical Voltage | 12.8V | |
1.5 | End of Charge Voltage | 14.6V | |
1.6 | Charge Current | 0.2C | |
1.7 | Charging time | 5-6 Hours | |
1.8 | Over-Charge Voltage Protection cell | 3.65V | |
1.9 | Max continuous charge current | 15A | |
2.0 | Maximum Continuous Discharging Current | 30A | |
2.1 | Over-discharge Voltage Protection cell | 2.5V | |
2.2 | Max. Pulse current | 60A(<3s) | |
2.3 | Internal resistance | ≤55mΩ | |
2.4 | Dimension |
165*175*125*125mm (can be customized) |
|
2.5 | Weight | 3.9kgs | |
2.6 | Operation Temperature Range | Charge 0~55 C, Discharge -20~60 C | |
2.7 | Storage Temperature & Humidity Range | Less than 1 month:-20℃~45℃,45%RH~75%RH | |
Less than 3 months:-10℃~35℃,45%RH~75%RH | |||
Recommended storage environment: 15℃~35℃,45%RH~75%RH |
|||
2.8 |
Long time storage: If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months. |
BMS specification of 12.8V 30Ah SLA replacement battery:
Cell overcharge detection voltage: 3.90V±50mV
Cell overcharge recovery voltage: 3.80V±100mV
Cell over-discharge detection voltage: 2.00V±100mV
Cell over-discharge recovery voltage: 2.30V±100mV
Rated operational charge current: 30A
Over current detection: 100±30A
BMS impedance: ≤20mΩ
12.8V 30Ah SLA replacement battery Delivery:
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
