| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/PAC |
| Certification: | CE, UL, UN38.3, MSDS etc |
| Model Number: | 12.8v 22Ah |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Housing: | Fireproofing ABS | Typical Capacity: | 22Ah |
|---|---|---|---|
| Weight: | About 3kgs | Cell Type: | IFR26650-3.2V-3.2Ah |
| Standard Discharge Current: | 0.2C | Standard Charge Current: | 0.2C |
| Battery Application: | For Sealed Lead Acid Battery Replacement | Dimension: | 168*128*103mm |
For more SLA Replacement battery, please find below our battery model list:
SLA replacement battery model list-PAC Tech.pdf

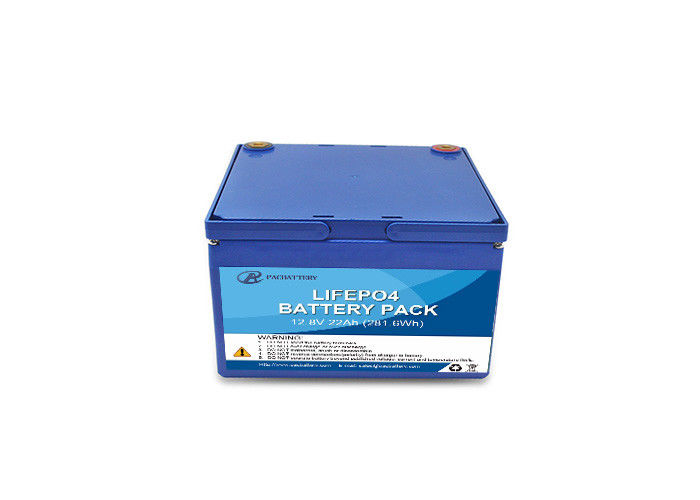

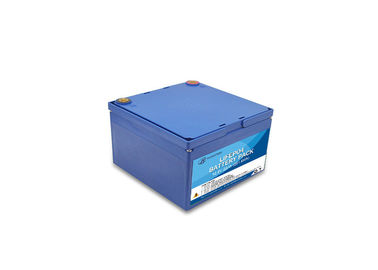

12.8V li ion battery pack 22Ah for SLA replacement , using 26650 cells blue color case
1. Quick details of 12.8V 22Ah SLA replacement battery
2. Cautions in use for 12v 22Ah li ion battery
To ensure proper use of the battery please read the manual carefully before using it.
2.1. Handling
2.2. Charge and discharge
2.3. Storage
2.4. Disposal
3. Specification of 12.8V 22Ah 26650 battery pack(@Battery initial Temp25±5℃)
| No. | Item | General Parameter | Remark |
| 1.1 | Description | 12.8V li ion battery pack 22Ah for SLA replacement , using 26650 cells blue color case | |
| 1.2 | Cell Type | Cylindrical LiFePO4 26650 Battery cell | |
| 1.3 | Typical Capacity | 22Ah | |
| 1.4 | Typical Voltage | 12.8V | |
| 1.5 | End of Charge Voltage | 14.6V | |
| 1.6 | Charge Current | 0.2C | |
| 1.7 | Charging time | 5-6 Hours | |
| 1.8 | Over-Charge Voltage Protection cell | 3.65V | |
| 1.9 | Max continuous charge current | 11A | |
| 2.0 | Maximum Continuous Discharging Current | 22A | |
| 2.1 | Over-discharge Voltage Protection cell | 2.5V | |
| 2.2 | Pulse current | 60A for 3s | |
| 2.3 | Terminal | M5 or T-Anderson connector | |
| 2.4 | Dimension | 168*128*103mm | |
| 2.5 | Weight | about 3.0kgs | |
| 2.6 | Operation Temperature Range | Charge 0~60 C, Discharge -20~60 C | |
| 2.7 | Storage Temperature & Humidity Range | Less than 1 month:-20℃～45℃,45%RH～75％RH | |
| Less than 3 months:-10℃～35℃,45%RH～75％RH | |||
|
Recommended storage environment: 15℃～35℃,45%RH～75％RH |
|||
| 2.8 |
Long time storage: If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months. |
||
4. Application of 12.8V LiFePO4 22Ah battery
> Wind-Solar energy system
> Solar street lights
> Off-grid energy storage
> Household energy storage
> Telecom backup system
> Mobile base stations
> Emergency backup energy sources
> Uninterruptible power system
> Grid load shifters
5. 12.8V 22Ah lithium battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
6. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
Contact Person: Ada Wang
Tel: 0086 13652343280
