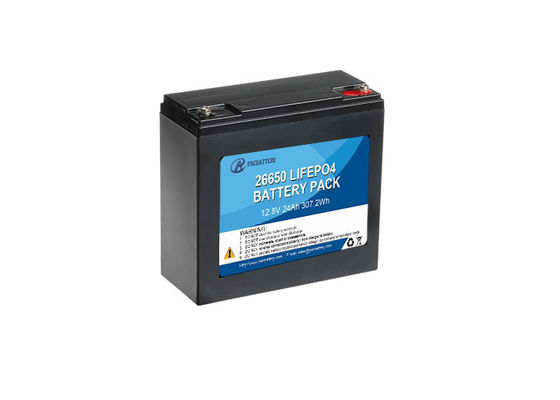

12V 24Ah Rechargeable LiFePo4 Battery Pack With ABS Case , LFP Lithium Battery

12V 24Ah Rechargeable LiFePo4 Battery Pack With ABS Case , LFP Lithium Battery

  • 12V 24Ah Rechargeable LiFePo4 Battery Pack With ABS Case , LFP Lithium Battery
  • 12V 24Ah Rechargeable LiFePo4 Battery Pack With ABS Case , LFP Lithium Battery
12V 24Ah Rechargeable LiFePo4 Battery Pack With ABS Case , LFP Lithium Battery
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/ODM
Certification: IEC62133, UN38.3, MSDS
Model Number: 26650 3.2V 33000mAh
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: 7-10 days for samples, 15-20 days for mass production
Payment Terms: T/T
Supply Ability: 5,000pcs/day
Contact Now
Detailed Product Description
Type: 26650 LiFePO4 Battery Cell Model: 26650 3.2V 3300mAh
Nominal Voltage: 12.8V Nominal Capacity: 24Ah
Application: SLA Replacement, UPS Keywords: Rechargeable Battery 26650, Lifepo4 12V 33Ah, 12V 33Ah Lithium Iron Phosphate Battery Pack
Cycle Life: 2000 Times Warranty: 24 Months
Weight: 2.9kg Model: PAC1224
High Light:

26650 lifepo4 battery

,

rechargeable lifepo4 battery pack

Lithium 26650 LFP Battery 12V 24Ah Rechargeable LiFePo4 Battery Pack with ABS Case

26650 4S8P 12.8V 24Ah LiFePO4 Battery Pack, widely use for

* solar street light,

* UPS/ power back up,

* solar LED light,

* electric scooter.



Advantage of LiFePO4 battery, comparing to Lead acid battery:

Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20 C~60 C.
Superior Safety: Lithium Iron Phosphate chemistry eliminates
the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.

Specifcations of 26650 LFP Battery 12V 24Ah Battery Pack:





Electrical Characteristics

Nominal Voltage 12.8v
Nominal Capacity 24Ah @ 0.2C
Energy 307.2Wh
Internal resistance ≤60mΩ
Cycle Life >2000 cycles @ 0.2c charge/ discharge at 100%DOD,End of life 70% capacity
Months Self discharge ≤3.5% per month at 25℃





Standard Charge

Charge voltage 14.6±0.2V



Charge Mode( CC/CV)

At 0℃~45℃ temperature, charged to 14.6v at constant current of 0.2C5A, and then, changed continuously with constant voltage of 14.6v until the current was not more than 0.02C5A
Charge current 4.8A
Max.Charge current 12A





Standard Discharge

Discharge current 4.8A
Max.continuous current 24A
Max. Pulse current 6A (<3S)
Discharge cut-off voltage 10.0V





Environmental

Charge Temperature 0℃ to 45 ℃
Discharge Temperature -20℃ to 60 ℃
Storage Temperature 0℃ to 45 ℃
Water Dust Resistance IP55





Mechanical

Cell & Method IFR26650 N60,4S8P
Plastic Case ABS
Dimension (L*W*H*TH) 181*77*167*167mm
Weight Approx. 2.9KG
Terminal M8
Customize Any of The Following Battery Packs as Required
Can be customized according to the requirements of 3.7V, 7.4V, 11.1V, 14.8V, 18.5V, 22.2V, 25.9V, 36V, 48V, 60V, 72V

Application of 26650 LiFePO4 Battery:

1.Light: headlamp, emergency light, sloar flashlight, searchlight, lanten,bicycle light, LED light, military
flashlight, high-end flashlight, high power flashlight, bright flashlight.
2.Outdoor sports products: camping light, mountain bike light, solor emergency light, self-defense flashlight,
3.Customer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player,
speaker, microphone, sound equipment, audio, Digital camera, vidican.
4. Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes,
electric blanket.


Lithium Battery Cylindrical Cell 18650, 26650, 32650, 32700 Manufaturing- Work Shop:
24V 30Ah LiFePO4 polymer battery With Built-in BMS, deep cycle battery pack

PAC Battery 26650 battery cell:

12V 24Ah Rechargeable LiFePo4 Battery Pack With ABS Case , LFP Lithium Battery 1

26650 Battery Pack Delivery

• By Air Door to Door Service

• By Sea Door to Door Service

• By Express: EMS, TNT, UPS, FedEx



12V 24Ah Rechargeable LiFePo4 Battery Pack With ABS Case , LFP Lithium Battery 2


Why Choose Us?

Reliable quality -- We have 10 years of battery industry experience. Automated production line and precise equipment. In strict accordance with international standards for production inspection, to ensure product quality and safety.
Positive service -- We give response for all inquiries/questions in 24 hours. We have a professional R&D team, we can provide professional customized and one-stop services.
Taking responsibility -- PAC members to proactively take responsibility, we always offer the best solution to our customers.


24 hours customer service, waiting for your inquiry!
