Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | PAC/OEM |
Certification: | CE, RoHs, MSDS, UN38.3 |
Model Number: | 12.8v 50Ah |
Minimum Order Quantity: | 1pc |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export carton, wooden case, pallet etc. |
Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 60,000kWh per month |
Nominal Voltage: | 12.8V | Case Material: | Plastic ABS |
---|---|---|---|
Nominal Capacity: | 50Ah | Weight: | 6.2kgs |
Battery Application: | Camping Air Conditioner, Solar Street Lighting | Battery Terminal: | M6 |
Output Voltage: | 12Vdc | Dimension: | 197*165*170mm |
High Light: | lithium battery pack,lead acid battery replacement |
For more SLA Replacement battery, please find below our battery model list:
SLA replacement battery model list-PAC Tech.pdf

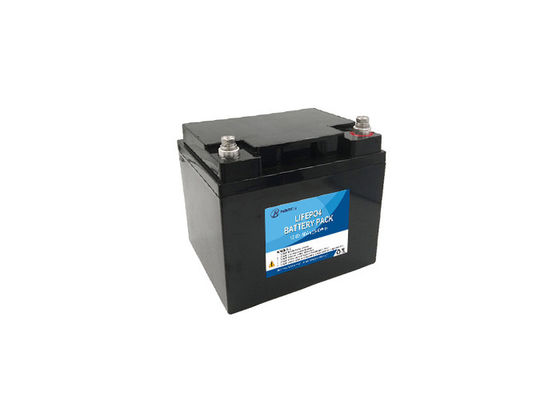

SLA replacement battery 12v 50Ah lithium ion pack for camping air conditioner
1. Standard charge of 12v 50Ah Battery
Charging shall consist of charging at a 0.2C5A constant current rate until the cell reaches 14.6V. The cell shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.02 C. Charge time: Approx 5.5h, The cell shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.
2. Standard discharge of 12V SLA replacement battery
Cells shall be discharged at a constant current of 0.2 C5A to 10.0 volts @ 23º ± 3C
3. Initial Performance Test of 12V 50Ah camping battery
Item | Test Method and Condition | Requirements |
(1) Open-Circuit Voltage | The open-circuit voltage shall be measured within 24 hours after standard charge. | ≥13.2V |
(2) Internal impedance | Internal resistance measured at AC 1KHz after 50% charge. | ≤120mΩ |
(3) Minimal Rated Capacity | The capacity on 0.2C5A discharge till the voltage tapered to 10.0V shall be measured after rested for 30min then finish standard charge. | Discharge Capacity |
≥49.4Ah |
4. 12.8V 50Ah SLA Replacement LiFePO4 battery Specification(@Battery initial Temp25±5℃)
No. | Item | General Parameter | Remark |
1.1 | Description | SLA replacement battery 12v 50Ah lithium ion pack for camping air conditioner | |
1.2 | Battery Type | LiFePO4 26650 cell, 3300mAh, 3.2V | |
1.3 | Typical Capacity | 50Ah | |
1.4 | Typical Voltage | 12.8V | |
1.5 | End of Charge Voltage | 14.6V | |
1.6 | Charge Current | 0.2C | |
1.7 | Charging time | 5-6 Hours | |
1.8 | Over-Charge Voltage Protection cell | 3.65V | |
1.9 | Max continuous charge current | 25A | |
2.0 | Maximum Continuous Discharging Current | 50A | |
2.1 | Over-discharge Voltage Protection cell | 2.5V | |
2.2 | Max. Pulse current | 120A(<3s) | |
2.3 | Internal resistance | ≤50mΩ | |
2.4 | Dimension | 197*165*170mm/can be customized | |
2.5 | Weight | 6.2kgs | |
2.6 | Operation Temperature Range | Charge 0~55 C, Discharge -20~60 C | |
2.7 | Storage Temperature & Humidity Range | Less than 1 month:-20℃~45℃,45%RH~75%RH | |
Less than 3 months:-10℃~35℃,45%RH~75%RH | |||
Recommended storage environment: 15℃~35℃,45%RH~75%RH |
|||
2.8 |
Long time storage: If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months. |
5. BMS specification of 12.8V 50Ah deep cycle battery
Cell overcharge detection voltage: 3.90V±50mV
Cell overcharge recovery voltage: 3.80V±100mV
Cell over-discharge detection voltage: 2.00V±100mV
Cell over-discharge recovery voltage: 2.30V±100mV
Rated operational charge current: 25A
Over current detection: 150±20A
BMS impedance: ≤40mΩ
6. 12V 50Ah LiFePO4 Battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
Contact Person: Ada Wang
Tel: 0086 13652343280
