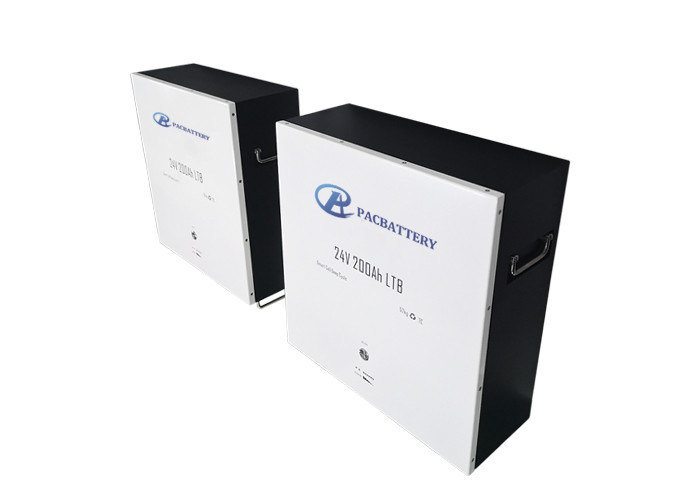

1kHz 5kwh 24v 200Ah UPS Rechargeable Battery With LCD

1kHz 5kwh 24v 200Ah UPS Rechargeable Battery With LCD

1kHz 5kwh 24v 200Ah UPS Rechargeable Battery With LCD
1kHz 5kwh 24v 200Ah UPS Rechargeable Battery With LCD
1kHz 5kwh 24v 200Ah UPS Rechargeable Battery With LCD
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: UL1642, MSDS, ISO9001
Model Number: power wall 24v 200Ah battery
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Typical Power: 5kwh Typical Capacity: 200Ah @ 25.6Vdc
Cycle Life: More Than 6000 Times Battery Application: Home Solar Battery, Home Energy Storage System
Logo: Accept Customized Logo On Battery Cell Type: EV-grade Battery Cells
Warranty: 5 Years Dimension: 510*485*180mm
High Light:

24v 200Ah UPS Rechargeable Battery


5kwh UPS Rechargeable Battery


1kHz Home Backup System Battery

UPS Rechargeable battery power wall 24v 200Ah with LCD for home backup system

1. Advantages of power wall 24v 200Ah in service:

  • We provide OEM service and can print your LOGO on the battery.
  • Standard working current of our battery is 100A, but we also have solution with higher current up to 200A, which can meet the higher load demand of customers.
  • Our battery is already IEC62619 approved and we are applying UL1973 certificate for it, which means higher safety standards.


2. Advantages of 24v 200Ah home solar power wall battery in hardware:

  • We use EV-grade battery cells, which have best consistency;
  • We use advanced laser welding technology for assembly;
  • We use Quick Connectors, which are usually used in EV and more safe and easier for connection;
  • We have CANBus, RS485 and RS232 interfaces for inverter communication.
  • We provide 24V, 48V, 400V models of powerwall battery with different dimensions, and also accept customized size.


3. ​Specification of UPS Rechargeable battery power wall 24v 200Ah

NO Items Description
Normal Specification
1 Nominal Voltage 25.6V (LFP-8S)
2 Normal Capacity 200Ah
3 Internal Resistance ≤50mΩ @1kHz AC
Standard Charge
4 Battery operation temperature range @charging 0~45℃
5 Normal charge voltage 29.2±0.2V
6 Recommended float charge voltage(for Standby use) 28.8±0.2V
7 Allowed MAX charge current 100A@Battery initial Temp 25±5℃
8 Recommended charge current ≤100A
Standard Discharge
9 Battery operation temperature range @discharging -20~55℃
10 Factory voltage 25.8~26.4V(40%-60%)
11 Allowed discharge current 120A
12 Pulse discharge current 300A withstand 3s
13 Discharge cut-off voltage 20~21.5V
Mechanical Characteristics
14 Dimension Length 510±2mm
Width 485±2mm
Height 180±2mm
15 Weight About: 57±0.5Kg
16 Storage Temperature & Humidity Range Short: within one month -20~+ 55℃, 5~75%RH
Long term: above one month -10~+45℃, 5~75%RH
17 Self-discharge rate Residual capacity ≤2% per month;
Reversible capacity ≤1%per month;

4. PAC Power wall battery is compatible with different brands of inverter: Goodwe, Growatt, InfiniSolar, Luxpower, Deye, Sol-ark, Solax, Victron, Schneider, EAST, SoFar, Kstar, Huawei, etc

1kHz 5kwh 24v 200Ah UPS Rechargeable Battery With LCD 0

5. Safety precautions during operation of 24v 200Ah UPS battery

  • If the battery system needs to be moved or repaired, the power must be cut off first and the battery is completely shutdown;
  • It is prohibited to connect the battery with different type of battery;
  • It is prohibited to put the batteries working with faulty or incompatible inverter;
  • In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited;
  • Please do not open, repair or disassemble the battery. We do not undertake any consequences or related responsibility due to violation of safety operation or violating of design, production and equipment safety standards.

6. Delivery of Home solar lithium battery

  • ​By Air with Door to Door Service
  • By Sea with Door to Door Service
  • By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

1kHz 5kwh 24v 200Ah UPS Rechargeable Battery With LCD 1

7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.

PAC Battery provides 24 hours customer service. Waiting for your inquiry!
