25.6Vdc 200Ah 5kwh Deep Cycle Lifepo4 Battery Wall Mounted

25.6Vdc 200Ah 5kwh Deep Cycle Lifepo4 Battery Wall Mounted

25.6Vdc 200Ah 5kwh Deep Cycle Lifepo4 Battery Wall Mounted
25.6Vdc 200Ah 5kwh Deep Cycle Lifepo4 Battery Wall Mounted
25.6Vdc 200Ah 5kwh Deep Cycle Lifepo4 Battery Wall Mounted
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: UL1642, MSDS, ISO9001
Model Number: Wall mounted type 24v 200Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Typical Energy: 5kwh Typical Capacity: 200Ah @ 25.6Vdc
Weight: 57kgs Battery Application: Home Solar Battery, Home Energy Storage System
Battery Type: Wall Mounted Type Compatible With: Goodwe, Growatt, Schneider, Victron, Etc
Warranty: 5 Years Dimension: 510*485*180mm
High Light:

5kwh Deep Cycle Lifepo4 Battery


200Ah Deep Cycle Lifepo4 Battery


25.6Vdc Wall Mounted LiFePO4 Battery

24V deep cycle lifepo4 battery 200Ah 5kwh wall mounted type for home solar system

1. Key features of wall mounted type 24v 5kwh battery

  • More than 6,000 cycles/10 years service life
  • Simple and elegant appearance design
  • Using EV-grade Lifepo4 cells to ensure the best consistency and longer cycle life
  • Wall-mounted, convenient installation
  • Integrated state-of-the-art BMS to manage and monitor battery information including voltage, current and temperature as well as balance cell charging/discharging rates
  • High safety and reliability

2. Specification of 24V deep cycle lifepo4 battery 200Ah

Normal Specification
1Nominal Voltage25.6V (LFP-8S)
2Normal Capacity200Ah
3Internal Resistance≤50mΩ @1kHz AC
Standard Charge
4Battery operation temperature range @charging0~45℃
5Normal charge voltage29.2±0.2V
6Recommended float charge voltage(for Standby use)28.8±0.2V
7Allowed MAX charge current100A@Battery initial Temp 25±5℃
8Recommended charge current≤100A
Standard Discharge
9Battery operation temperature range @discharging-20~55℃
10Factory voltage25.8~26.4V(40%-60%)
11Allowed discharge current120A
12Pulse discharge current300A withstand 3s
13Discharge cut-off voltage20~21.5V
Mechanical Characteristics
14DimensionLength 510±2mm
Width 485±2mm
Height 180±2mm
15WeightAbout: 57±0.5Kg
16Storage Temperature & Humidity RangeShort: within one month-20~+ 55℃, 5~75%RH
Long term: above one month-10~+45℃, 5~75%RH
17Self-discharge rateResidual capacity≤2% per month;
Reversible capacity≤1%per month;

3. Advantages of 5kWh 24V home solar power wall battery in hardware:

  • We use EV-grade battery cells, which have best consistency;
  • We use advanced laser welding technology for assembly;
  • We use Quick Connectors, which are usually used in EV and more safe and easier for connection;
  • We have CANBus, RS485 and RS232 interfaces for inverter communication.
  • We proide 24V, 48V, 400V models of powerwall battery with different dimensions, and also accept customized size.


4. Safety precautions during operation of 24v 200Ah powerwall lithium battery

  • If the battery system needs to be moved or repaired, the power must be cut off first and the battery is completely shutdown;
  • It is prohibited to connect the battery with different type of battery;
  • It is prohibited to put the batteries working with faulty or incompatible inverter;
  • In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited;
  • Please do not open, repair or disassemble the battery. We do not undertake any consequences or related responsibility due to violation of safety operation or violating of design, production and equipment safety standards.

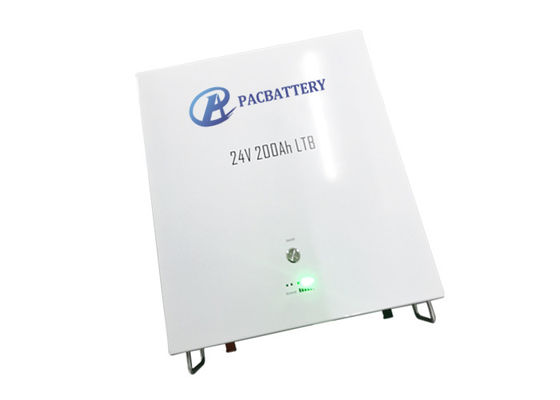

5. Appearance design of 24v 5kWh powerwall battery
25.6Vdc 200Ah 5kwh Deep Cycle Lifepo4 Battery Wall Mounted 0


6. Communication connection of home ESS 5Kwh Powerwall Battery
There needs to be cascade communication with master level and slave level settings. The master level and slave level has different address.
25.6Vdc 200Ah 5kwh Deep Cycle Lifepo4 Battery Wall Mounted 1

7. Delivery of Home solar lithium battery

  • ​By Air with Door to Door Service
  • By Sea with Door to Door Service
  • By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

25.6Vdc 200Ah 5kwh Deep Cycle Lifepo4 Battery Wall Mounted 2

8. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.

PAC Battery provides 24 hours customer service. Waiting for your inquiry!
