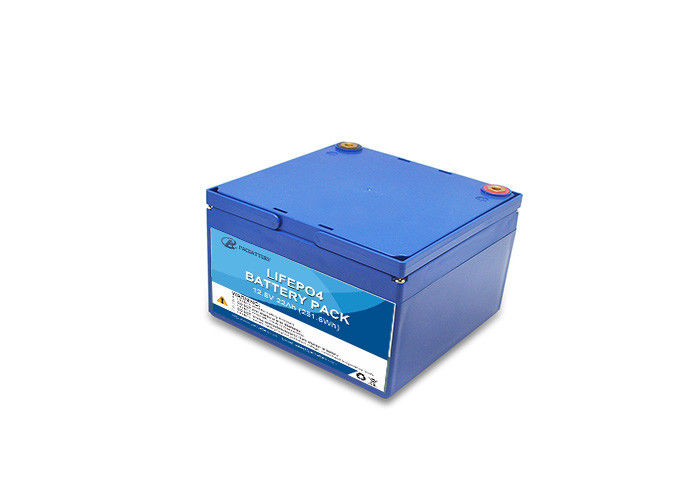

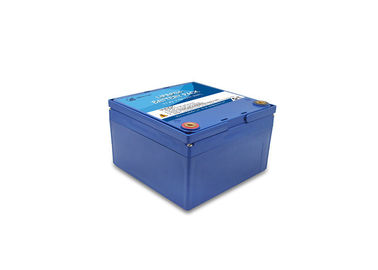

26650 Battery pack 4S7P

26650 Battery pack 4S7P

26650 Battery pack 4S7P
26650 Battery pack 4S7P
26650 Battery pack 4S7P
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: CE, IEC62133, UN38.3, MSDS
Model Number: 26650 battery 12.8v 22Ah
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Nominal Voltage: 12.8V Logo: Can Be Customized On Battery Case
Nominal Capacity: 22Ah IP Rate: IP56
Weight: 3kgs Max Working Current: 22A
Battery Protection: Built-in BMS Dimension: 168*128*103mm

26650 Battery pack LiFePO4 4S7P 12.8v 22Ah environment friendly
1. Instruction of LiFePO4 26650 battery pack 12.8V 22Ah
The LiFePO4 Solar Battery 12.8V 22Ah is using long time storage battery cell IFR26650-3200mAh and reliable battery protection circuit board, 4S7P assembled, to provide 281.6Wh power ESS system. There is fireproofing ABS plastic case outside the battery pack to protect it from impact. Compared to lead acid battery, this LiFePO4 battery is environment friendly, pollution-free and has up to 20 times longer cycle life.
2. Battery operation instruction

2.1 Charging

  • Charging current: Cannot surpass the biggest charging current which in this specification book stipulated.
  • Charging voltage: Does not have to surpass the highest amount which in this specification book stipulated to decide the voltage.
  • Charge temperature: The battery must carry on the charge in the ambient temperature scope which this specification book stipulated.
  • Uses the constant electric current and the constant voltage way charge, the prohibition reverse charges. If the battery positive electrode and the cathode meet instead, can damage the battery.

2.2 Discharging current

  • The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the oversized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.

2.3 Electric discharge temperature

  • The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.

2.4 Over-discharges

  • After the short time excessively discharges charges immediately cannot affect the use, but the long time excessively discharges can cause the battery the performance, battery function losing. The battery long-term has not used, has the possibility to be able to be at because of its automatic flashover characteristic certain excessively discharges the condition, for prevented excessively discharges the occurrence, the battery should maintain the certain electric quantity.

2.5 Storing the Batteries

  • The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, suggested you should carry on additional charge to the battery.

3. Specification of 26650 lithium ion battery pack(@Battery initial Temp25±5℃)

Electrical Characteristics Nominal Voltage 12.8V
Nominal Capacity 22Ah@0.2C
Energy 281.6Wh
Internal Resistance ≤60mΩ
Cycle Life >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
Months Self Discharge ≤3.5% per month at 25℃
Standard Charge Charge Voltage 14.6±0.2V
Charge Mode(CC/CV) At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then, changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A.
Charger Current 4.4A
Max.Charge Current 11A
Standard Discharge Discharge Current 4.4A
Max. Continuous Current 22A
Max.Pulse Current 60A(<3S)
Disxcharge Cut-off Voltage 10.0V
Environmental Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Disxcharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP56
Mechanical Cell & Method IFR26650 N32, 4S7P
Plastic Case ABS
Dimension(L*W*H*TH) 168*128*103mm
Weight Approx. 3kgs
Terminal M5 or T-Anderson connector

4. Cell manufacture of 12.8V 22Ah LiFePO4 battery pack
26650 Battery pack 4S7P 0

5. Battery cell testing and capacity grading
26650 Battery pack 4S7P 1

6. 12.8v 22Ah LiFePO4 Battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

26650 Battery pack 4S7P 2

7. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.

PAC Battery provides 24 hours customer service. Waiting for your inquiry!
