| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | MSDS, UN38.3, ISO9001, ISO14001 |
| Model Number: | 3000W solar generator |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Typical Power: | 3000W | Battery Energy: | 6.5kWh |
|---|---|---|---|
| Weight: | 160kgs | Feed Into Grid: | Yes |
| Solar Charge Power: | 2400w | AC Charge: | 2400w |
| Dimension: | 779*347*912mm | Application: | Home ESS |
| AC Output: | 3000w | MPPT Efficiency: | 99.5% |
| High Light: | home energy storage battery,energy storage system lithium ion battery |
||

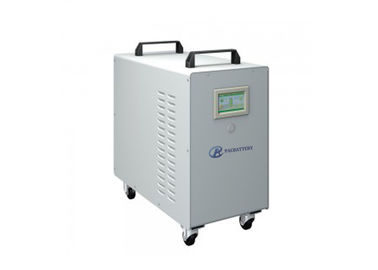

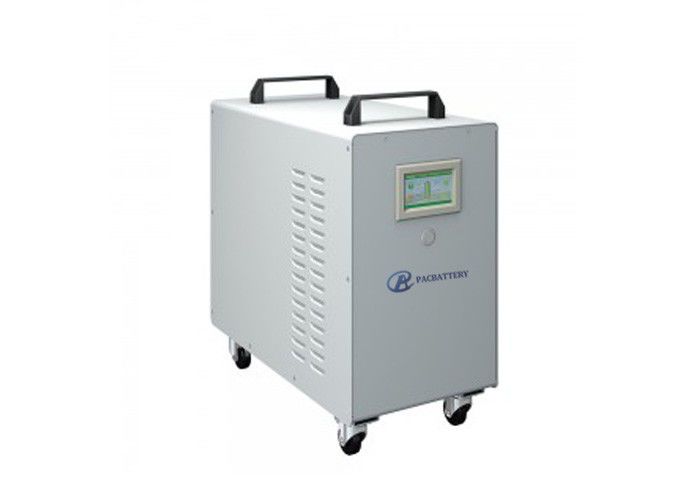

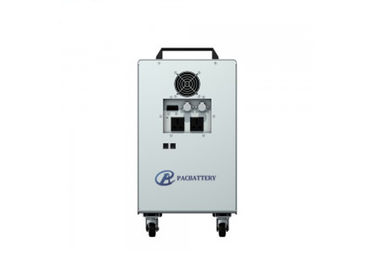

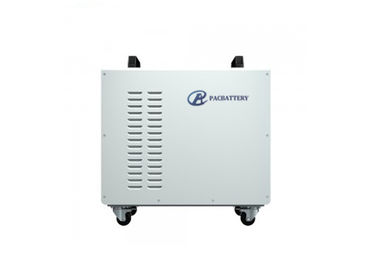

3000W solar generator with 6.5kwh Energy Storage lithium battery pack for home
1. Features of 3kw solar generator with 6.5kWh battery
*More specifics and detailed product features or other custom feature, pls contact with us, those specifications are subject to communication.
2. Specification of 3000w solar generator
| All-in-one ESS (Energy Storage System) | |
| Model No. | PS6530B |
| Battery | |
| Battery Capacity | 6.5KWh |
| Battery Type | Samsung Li-ion Battery |
| Output | |
| Rated Output Power | 3000W |
| Peak Output | 4000W |
| Output Voltage | 220/230/240V |
| Output Frequency | 50Hz/60Hz |
| Overload Ability | 120%<load<130% @10min; 130%<load<150% @10s |
| UPS Function | YES |
| On/off Grid | On & Off Grid |
| Max Efficiency | 92%(>70% Load) |
| AC Charge | |
| Input Voltage | 88～264Vac |
| Power Factor | ≥0.95(full load) |
| Input Frequency | 50/60Hz±5Hz |
| Max Charge Power | 2400W |
| Max Efficiency | >96% |
| PV Charge | |
| Max Input Power | 2400W |
| Start-up Voltage | 75Vdc |
| MPPT Amount | 2 |
| MPPT Input Voltage | 75~140 Vdc |
| Max Input Voltage | 150 Vdc |
| MPPT Efficiency | 99.5% |
| Max Efficiency | >96% |
| Solar Charing Model | MPPT |
| General | |
| Working Condition | Relative humidity: 5%~90% |
| Temperature: 0~45℃ | |
| Product Dimension | 779×347×912mm |
| Packing Dimension | 805×525×1080mm |
| Net Weight | 135Kg |
| Gross Weight | 160Kg |
3. Power network of 6.5kWh lithium battery solar generator
Conjunctive use of household power generation system, electric grid system and solar power generation system leads the family to exible use of energy. Connect important load to power storage system, at the time of emergency power outages, the system will supply uninterrupted power . In usual time, store the electricity in the night when the electricity price is low, and use the stored electricity in daytime, to save electricity cost. The time interval for power storage can be selected, every night the grid will automatically charge the power storage system The product is connected to electric grid system, at the time of peak load in the day, the system is switched to inverter output from power storage system, to reduce the consumption of electric power system power, and contribute to the alleviation of peak power consumption. Used as emergency power supply when there is power failure for family use. At the time of power outage, the product is switched automatically to power storage system to supply power to important loads such as TV, LED lighting, and computer. If the product is connected to solar power generation system, it will directly invert electricity generated from solar panel to AC electricity to supply household application, and the extra solar energy can be used to charge the power storage battery.
4. Flexible use during the daytime and multiplication effect by using the system in conjunction with solar energy
Combined utilization with solar panel electricity generation system can be more economical In the daytime use the electricity from solar panel and power storage battery inverter output, to reduce the use of Grid electricity and save electricity cost. When the solar panel is not able to generate power ,use the electricity form power storage battery output, to reduce the use of Grid electricity and save electricity cost.
Multiplication effect = Increase selling power
In the case that the power of the solar panel is big enough , household electricity can be supplied from solar energy only.
Storage battery and solar pannel supply power idependently or connect to Grid and supply power at the same time
5. Delivery of Home solar generator 6.5kWh battery pack
6. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
