| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | MSDS, UN38.3, CE, ROHS |
| Model Number: | 32650-4S6P, 12.8V 36Ah |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Features: | With SMBus Communication | OEM/ODM: | Acceptable |
|---|---|---|---|
| Cell Model: | 32650 Battery | Warranty: | 3 Years |
| House Material: | Plastic ABS | Weight: | About 5.3kgs |
| Pulse Current: | 60A(<3s) | Dimension: | 195*130*156mm |
| Battery Energy: | 460.8Wh | Battery Combination: | 4S6P |
| Highlight: | 32650 lifepo4 battery,12v battery pack |
||

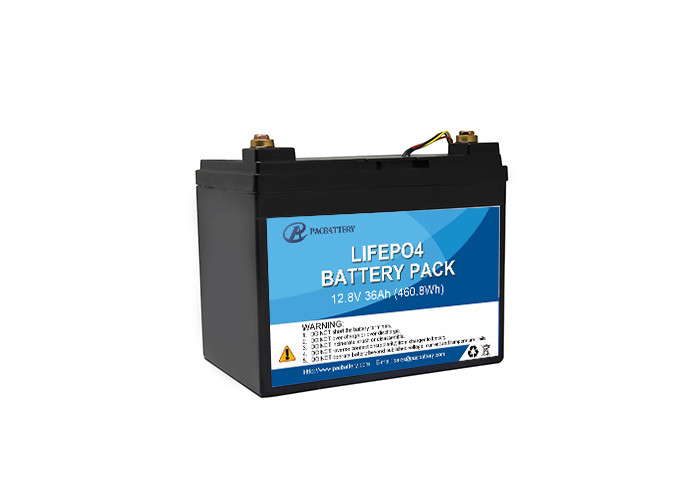

32650 Battery Pack 4S6P , 12.8v 36Ah li ion LiFePO4 batteries with SMBus communication
1. Instruction of 12.8V 36Ah li ion battery pack
The 12.8V 36Ah lithium iron phosphate battery is using cylindrical 32650 battery cell and 4s6p assembled with protection circuit and ABS plastic case. The batteries are supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single prismatic cell during battery charge & discharge, to prevent the 25.6V 6Ah battery pack from overcharge, over discharge, short circuit and over current. The protection circuit helps to ensure safe and accurate running of the lithium battery pack.
This battery is customized with SMBus communication protocol, through which the customer can read the battery information in real time, such as battery capacity, battery voltage, temperature, SOC, SOH, battery current, etc.
2. Customized service of PAC Technology Co.,Ltd
— 12V~48V Lithium battery for energy storage system;
— 12V Lithium battery for SLA replacement;
— 18650, 26650, 32650 customized battery pack.
The battery packs are built with standard BMS or smart BMS as per customers' requirements.
We can make them with different communication protocols, such as SMBus, I2C, RS232, RS485, ModBus, CANbus, UART, etc.
Any interest please feel free to contact us.
3. Test conditions of Vibration
A full-charged cell is to be subjected to simple harmonic motion with amplitude of 0.8mm total maximum excursion. The frequency is to be varied at the rate of 1 hertz per minute between 10 and 55 hertz. After the test is completed, And the cell returned to the starting position. The cell shall be vibrated for 90~100 minutes per axis of XYZ axes. The samples should be observed for 6 hours after the test,and also check the weight loss of cells before and after the test.
4. Specification of 4s6p LiFePO4 32650 battery pack(@Battery initial Temp25±5℃)
| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 36Ah@0.2C | |
| Energy | 460.8Wh | |
| Internal Resistance | ≤55mΩ | |
| Cycle Life | >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity. | |
| Months Self Discharge | ≤3.5% per month at 25℃ | |
| Communication protocol | SMBus | |
| Standard Charge | Charge Voltage | 14.6±0.2V |
| Charge Mode(CC/CV) | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then, changed continuously with constant voltage of 14.6V until the current was not more than 0.02C. | |
| Charger Current | 7.2A | |
| Max.Charge Current | 18A | |
| Standard Discharge | Discharge Current | 7.2A |
| Max. Continuous Current | 36A | |
| Max.Pulse Current | 60A(<3S) | |
| Disxcharge Cut-off Voltage | 10.0V | |
| Environmental | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
| Mechanical | Cell & Method | IFR32650 N60, 4S6P |
| Plastic Case | ABS | |
| Dimension(L*W*H*TH) | 195*130*156*167mm | |
| Weight | Approx. 5.3kgs | |
| Terminal | M6 |
5. Delivery of SMBus 12.8v 36Ah li ion battery pack
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
6. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
