Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | OEM/PAC |
Certification: | CE, IEC62133, UN38.3, MSDS etc |
Model Number: | UPS Battery 12v 844.8Wh |
Minimum Order Quantity: | 10pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export carton, wooden case, pallet etc. |
Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 60,000kWh per month |
Battery Energy: | 844.8Wh | Typical Capacity: | 66Ah |
---|---|---|---|
Typical Voltage: | 12.8v | Cell Type: | 32650 Lifepo4 Battery |
Standard Discharge Current: | 0.2C | Standard Charge Current: | 0.2C |
Battery Application: | UPS In Fire Fighting System | Dimension: | 300*200*75mm |
High Light: | 844.8Wh UPS Rechargeable Battery,66Ah UPS Rechargeable Battery,32650 Lifepo4 Rechargeable Lithium Battery |

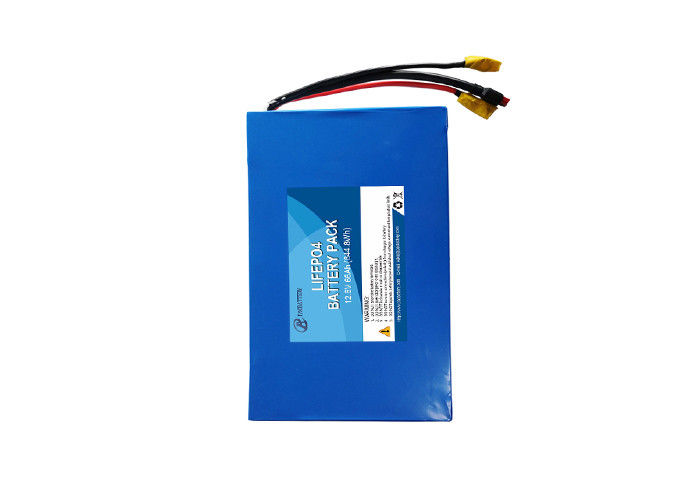

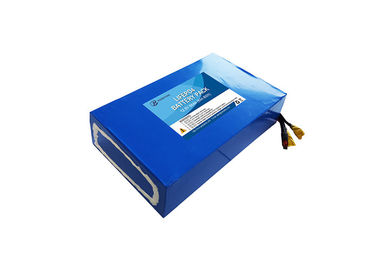

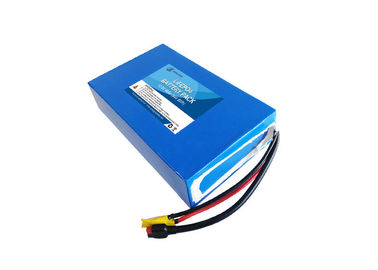

UPS rechargeable battery 12v 66Ah 844.8Wh lithium pack for fire fighting system
1. Quick details of 12.8V 66Ah UPS rechargeable battery
2. 12V UPS Battery operation instruction
2.1 Charging
2.2 Discharging current
2.3 Electric discharge temperature
2.4 Over-discharges
2.5 Storing the Batteries
3. Specification of 12.8V 844.8Wh UPS lithium battery(@Battery initial Temp25±5℃)
No. | Item | General Parameter | Remark |
1.1 | Description | UPS rechargeable battery 12v 66Ah 844.8Wh lithium pack for fire fighting system | 4S11P |
1.2 | Cell Type | Cylindrical 32700 3.2V LiFePO4 Battery cell | |
1.3 | Typical Capacity | 66Ah | |
1.4 | Typical Voltage | 12.8V | |
1.5 | End of Charge Voltage | 14.6V | |
1.6 | Charge Current | 0.2C | |
1.7 | Charging time | 5-6 Hours | |
1.8 | Over-Charge Voltage Protection cell | 3.65V | |
1.9 | Max continuous charge current | 33A | |
2.0 | Maximum Continuous Discharging Current | 66A | |
2.1 | Over-discharge Voltage Protection cell | 2.5V | |
2.2 | Pulse current | 120A for 3s | |
2.3 | Terminal | M8, Anderson PP30A | |
2.4 | Dimension | 300*200*75mm or customized | |
2.5 | Weight | about 6kgs | |
2.6 | Operation Temperature Range | Charge 0~60 C, Discharge -20~60 C | |
2.7 | Storage Temperature & Humidity Range | Less than 1 month:-20℃~45℃,45%RH~75%RH | |
Less than 3 months:-10℃~35℃,45%RH~75%RH | |||
Recommended storage environment: 15℃~35℃,45%RH~75%RH |
|||
2.8 |
Long time storage: If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months. |
4. Application of 12.8V lithium ion battery
> Wind-Solar energy system
> Solar street lights
> Off-grid energy storage
> Household energy storage
> Telecom backup system
> Mobile base stations
> Emergency backup energy sources
> Uninterruptible power system
> Grid load shifters
5. 12.8V 66Ah lithium battery Delivery
6. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
