| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/PAC |
| Certification: | ROHS, UN38.3, MSDS etc |
| Model Number: | 48V |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Typical Capacity: | 100Ah, 200Ah, 300Ah | Battery Application: | Home Solar |
|---|---|---|---|
| Battery Protection: | Smart BMS | Protocol: | CAN, RS485, RS232 |
| Second Protection: | Air Switch | Dimension: | Customized |
| High Light: | 300Ah LiFePO4 Energy Storage Battery,RS232 LiFePO4 Energy Storage Battery,200Ah Home Solar Battery |
||

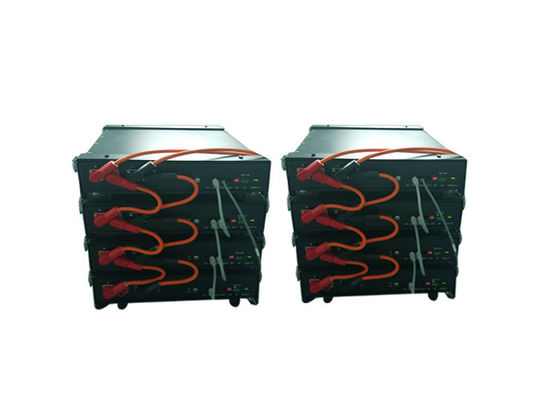

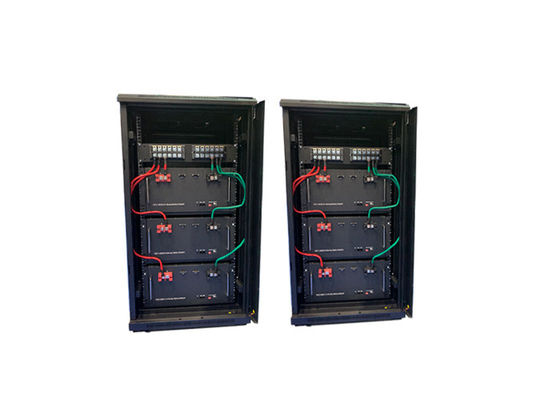

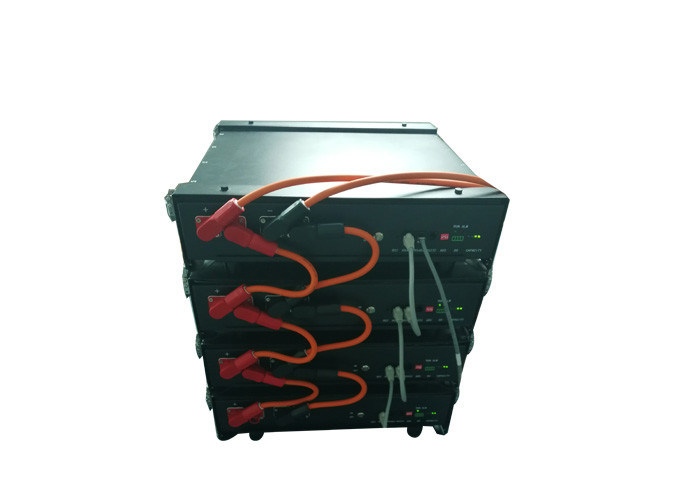

Home Solar Battery 48V 100Ah 200Ah 300Ah LiFePO4 Energy Storage Battery
We can provide One-Stop Solution globally in the field of renewable energy, from cell, BMS/PCM to battery pack assembling.
1. Instruction of Home Solar Battery 48V
We can make customized 48V home solar battery, capacity can be 100Ah, 200Ah, 300Ah. Wall mounted type and rack type.
2. Application of 48v 100Ah LiFePO4 Energy Storage Battery
The application of 48v 50Ah battery with IO is very wide, such as Telecom base station, computer server center, business base center, 4G/5G base station etc. It is specially suitable for remote areas.
3. 15S1P 48V 50Ah Telecom battery Specification(@Battery initial Temp25±5℃)
| NO | Items | Description | |
| Normal Specification | |||
| 1 | Nominal Voltage | 48V (LFP-15S) | |
| 2 | Normal Capacity | 100Ah, 200Ah, 300Ah | |
| 3 | Internal Resistance | ≤50mΩ @1kHz AC | |
| Standard Charge | |||
| 4 | Battery operation temperature range @charging | 0~45℃ | |
| 5 | Normal charge voltage | 54.75±0.3V | |
| 6 | Recommended float charge voltage(for Standby use) | 51.75±0.3V | |
| 7 | Allowed MAX charge current | 50A@Battery initial Temp 25±5℃ | |
| 8 | Recommended charge current | ≤25A | |
| Standard Discharge | |||
| 9 | Battery operation temperature range @discharging | -20~60℃ | |
| 10 | Output voltage range | 37.5~54.75V | |
| 11 | Allowed discharge current | 50A | |
| 12 | Pulse discharge current | 200A withstand 3s | |
| 13 | Discharge cut-off voltage | 37.5V | |
| Mechanical Characteristics | |||
| 14 | Dimension | Length 482±2mm | |
| Width 133±2mm | |||
| Height 360±2mm | |||
| 15 | Weight | About: 28±0.5Kg | |
| Storage | |||
| 16 | Storage Temperature & Humidity Range | Short: within one month | -20~+ 60℃, 5~75%RH |
| Long term: above one month | -10~+45℃, 5~75%RH | ||
| 17 | Self-discharge rate | Residual capacity | ≤2% per month; |
| Reversible capacity | ≤1%per month; | ||
4. Operation principle of Home Solar Battery 48V 100Ah 200Ah 300Ah
Input AC 220V, after rectification power module, output DC 48V. When the power grid normal, the battery will supply power according to system requirement, and to be charged at same time; when power off, the battery will supply energy, to make sure the DC power system working normally, to realize uninterruptible power supply. The power supply has second disconnection function, when the battery voltage is low, the battery output would be cut off to protect battery.
5. Package of Home Solar Battery 48V
The 48V LiFePO4 battery pack is packed firmly inside the wooden case and no shake. Then 8 wooden cases are fixed in one pallet.
6. 48V 50Ah telecom lithium batteryDelivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
