| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/PAC |
| Certification: | UL, ROHS, UN38.3, MSDS etc |
| Model Number: | 48v 100Ah |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Features: | Deep Cycle Softpack Lifepo4 Battery With LCD | Size: | 482*420*176mm |
|---|---|---|---|
| Color: | Black | Connector: | M8 Terminals |
| Typical Energy: | 4800Wh | Cell Capacity: | 50Ah |
| Warranty: | 3 Years | Cycle Life: | More Than 2000 Times |
| High Light: | soft battery pack,cylindrical lithium ion battery pack |
||

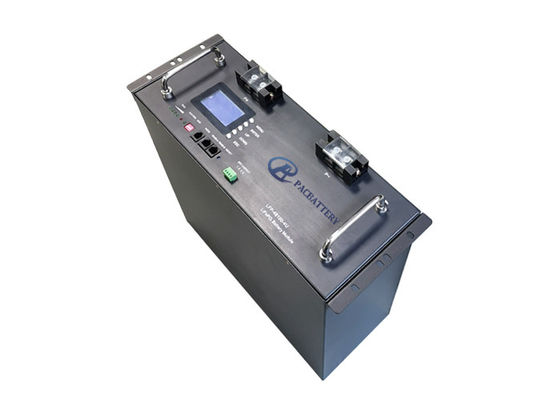

PAC Battery 48v 100Ah deep cycle softpack lifepo4 pack with 4U size with LCD
1. Quick details of 48V 100Ah softpack 4U size battery
2. Function of smart BMS of 48v 100Ah battery pack
Detect and protect the battery from over-charge, over-dicharge, over-current short-circuit, temperature detecting protection and auotmatically voltage balance function.
Build with high end electronic components (High End IC and MOSFET ) , simple structure design will let it have more stable quality working performance , Flexible application ( it can be used for less series battery by leaving some connection pins at empty status ), full set of protection measures let it works well without any infulence from external unexpected accidents.
3. Specification of 48v 100Ah 4ULiFePO4 battery(@Battery initial Temp25±5℃)
| Electrical Characteristics | Nominal Voltage | 48V |
| Nominal Capacity | 100Ah@0.2C | |
| Energy | 4800Wh | |
| Internal Resistance | ≤100mΩ | |
| Cycle Life | >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 80% Capacity. | |
| Months Self Discharge | ≤2% per month at 25℃ | |
| Standard Charge | Charge Voltage | 54.75±0.2V |
| Charge Mode(CC/CV) | At 0℃~45℃ temperature, charged to 54.75V at a constant current of 0.2C, and then, changed continuously with constant voltage of 54.75V until the current was not more than 0.02C. | |
| Charger Current | 20A | |
| Max.Charge Current | 50A | |
| Standard Discharge | Discharge Current | 20A |
| Max. Continuous Current | 100A | |
| Max.Pulse Current | 200A(<3S) | |
| Disxcharge Cut-off Voltage | 37.5V | |
| Environmental | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP52 | |
| Mechanical | Cell & Method | prismatic cell, 15S2P |
| Case material | metal | |
| Dimension(L*W*H*TH) | 482*420*176mm | |
| Weight | Approx. 56kgs | |
| Terminal | M8 |
4. Lithium Iron Phosphate Battery(LiFePO4) Modules
48V High power LiFePO4 Battery Module with compact designed metal housing, built-in smart BMS and LCD display as a key-turn and plug-and-play battery solution to direct drop in Replacement on lead-acid(AGM/GEL) battery applications. Providing twice the run-time at approximately half the weight of a comparatively sized lead-acid battery, excellent float and cycle life over 2000 times results in low operating costs with high investment returns for end user applications.
5. 48V 100Ah 4U size battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
6. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
