| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | OEM/PAC |
| Certification: | UL, IEC62133, UN38.3, MSDS, ISO9001 etc |
| Model Number: | 48V 50Ah |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 15-20 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Features: | Deep Cycle Battery, High Safety | Typical Voltage: | 48V |
|---|---|---|---|
| Battery Type: | High Safety LiFePO4 Battery | Typical Capacity: | 50Ah |
| Housing Material: | Metal Case | Weight: | About 32kgs |
| Battery Application: | Solar Energy Storage | Protocol: | RS232, RS485, CAN |
| Keywords: | Telecom Storage LiFePO4 Battery, 48V 50ah Battery, Battery For Base Station | Standard Discharge Current: | 0.2C |
| Battery Color: | Black | Standard Charge Current: | 0.2C |
| Logo: | Can Be Customized On Battery Case | Battery Cycle: | ≥4000 (100% DOD) |
| Warranty: | 3 Years | Dimension: | 133*482*420mm |

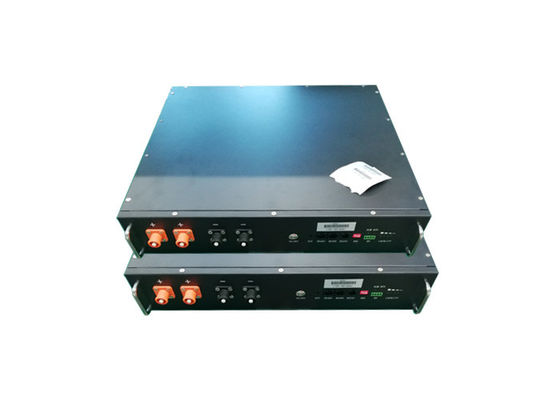

48V 50Ah LiFePO4 Battery Pack
1. 48V 50Ah LiFePO4 Battery Pack:
Telecom Storage LiFePO4 Battery is high energy density lithium iron phosphate battery pack manufactured by PAC Technology Co.,Ltd, using deep cycle prismatic battery cell, 15S1P assembled, to provide 2400Wh power.
2. 48V 50Ah LiFePO4 battery pack Application
Deep cycle lithium ion Battery, widely use for
3. 48V 50Ah LiFePO4 Battery Pack Specification(@Battery initial Temp25±5℃)
We warmly welcome OEM design inquiry! We can make customized battery pack specially for you!
| No. | Item | General Parameter |
| 1.1 | Description | 48V 50Ah LiFePO4 Battery Pack |
| 1.2 | Cell Type | prismatic cell |
| 1.3 | Typical Capacity | 50Ah |
| 1.4 | Typical Voltage | 48V |
| 1.5 | End of Charge Voltage | 54V |
| 1.6 | Charge Current | 0.2C |
| 1.7 | Charging time | 5-6 Hours |
| 1.8 | Over-Charge Voltage Protection cell | 3.6V |
| 1.9 | Max continuous charge current | 25A |
| 2.0 | Maximum Continuous Discharging Current | 50A |
| 2.1 | Over-discharge Voltage Protection cell | 2.5V |
| 2.2 | Over-Current Discharge Protection | 100A |
| 2.3 | Short circuit protection | With protection |
| 2.4 | Dimension | 442*385*132mm |
| 2.5 | Weight | about 32kgs |
| 2.6 | Operation Temperature Range | Charge 0~60 C, Discharge -20~60 C |
| 2.7 | Storage Temperature & Humidity Range | Less than 1 month:-20℃～45℃,45%RH～75％RH |
| Less than 3 months:-10℃～35℃,45%RH～75％RH | ||
|
Recommended storage environment: 15℃～35℃,45%RH～75％RH |
||
| 2.8 |
Long time storage: If the battery need be stored for a long time, the voltage should be at 50%SOC, and stored in the condition as storage proposal. It needs at least one charge & discharge cycle every six months. |
|
4. Advantage of LiFePO4 battery, comparing to Lead acid battery:
Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20℃~60℃.
Superior Safety: Lithium Iron Phosphate chemistry eliminates
the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.
5. Features of 48V 50Ah LiFePO4 Battery Pack
6. Warning of Lithium Telecom Storage LiFePO4 battery
1. DO NOT short the battery terminals.
2. DO NOT over charge or over discharge.
3. DO NOT incinerate, crush or disassemble.
4. DO NOT reverse connections(polarity) from charger to battery.
5. DO NOT operate battery beyond published voltage, current and temperature limits.
7. 48V 50Ah 5G Base Station LiFePO4 battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
8. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
