48v Telecom Lithium Battery With Quick Connector , 80ah LifePO4 Battery

48v Telecom Lithium Battery With Quick Connector , 80ah LifePO4 Battery

48v Telecom Lithium Battery With Quick Connector , 80ah LifePO4 Battery
48v Telecom Lithium Battery With Quick Connector , 80ah LifePO4 Battery
48v Telecom Lithium Battery With Quick Connector , 80ah LifePO4 Battery
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: MSDS, UL, CE, UN38.3
Model Number: Telecom lithium battery 48v 80Ah
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Features: Flexible Size Typical Energy: 3840Wh
Connector Type: Quick Connector Battery Type: LiFePO4 Battery
Battery Protection: Built-in BMS Capacity Display: LED Indicator
Second Protection: Air Switch Application: Telecom Backup Power
High Light:

lithium ion battery for telecom application


base station battery

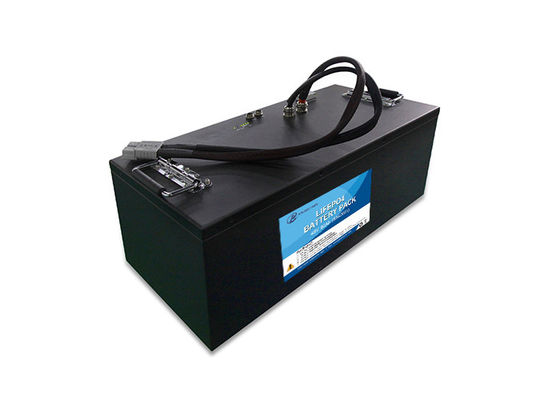

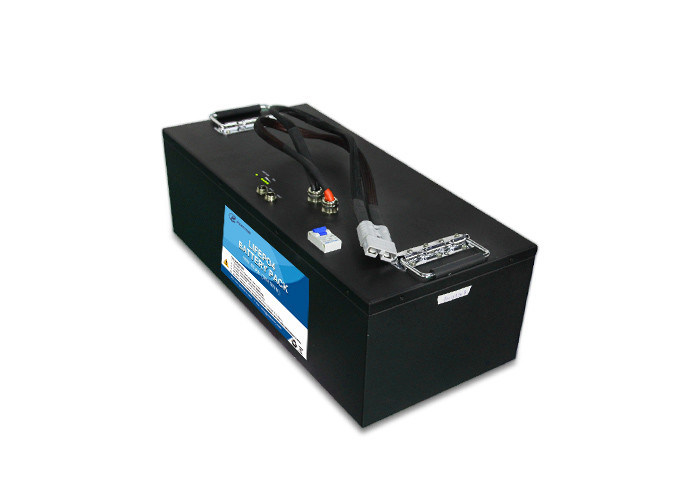

48V 80Ah LiFePO4 lithium battery for telecom backup power with quick connector

1. 48V 80Ah Telecom lithium battery Instruction
The specification shall be applied to Li-ion rechargeable battery pack of 48v 80Ah which is manufactured by PAC Technology Co.,LTd. The battery pack consists of LiFePO4 battery cell, battery holder, battery BMS and battery case. The BMS helps to ensure safe and accurate running of the lithium battery pack. Except BMS, the battery has dual protection of Air switch in case of short circuit. The LED indicators on battery case indicate the battery capacity, running status and the battery also has alarm functions.
2. BMS specification of LiFePO4 battery 48v 80Ah

The BMS is designed for 15/16 series lithium battery.

The BMS have all functions which are:

  • overcharge detection function
  • over discharge detection function
  • over current detection function
  • short detection function
  • Temperature detection function
  • balance function
  • communicate function
  • Alarm function
  • Total capacity function
  • Storage history function

3. Specification of 48V 80Ah Telecom battery(@Battery initial Temp25±5℃)

Battery pack

No.ItemGeneral ParameterRemark


Combination method




Rated Capacity

Typical80AhStandard discharge after Standard charge(package)
3Factory Voltage45.0V-48.0VMean Operation Voltage


Voltage at end of Discharge


Discharge Cut-off Voltage

5Charging Voltage54.75V


Internal Impedance


Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times


Standard charge

Constant Current 16A Constant Voltage see No.5 0.02CA cut-off

Charge time : Approx 6 h


Standard discharge

Constant current:16A end voltage see NO.4


Maximum Continuous Charge Current



Battery pack

No.ItemGeneral ParameterRemark


Maximum Continuous Discharge Current




Operation Temperature Range

Charge 0~45℃

Bare Cell

Discharge -20~55℃


Storage Temperature Range

Less than 12 months : -10~35℃

at the shipment state

less than 3 months: -10~45℃
Less than 7 day : -20~65℃
13DimensionscustomizedInclude case
14WeightAbout 48kgInclude case


4. Caution!
Do not use or store the battery where is exposed to extremely hot, such as under window of a car in direct sunlight in a hot day. Otherwise, the battery may be overheated. This can also reduce battery performance and/or shorten service life.
If the battery leaks and electrolyte gets in your eyes, do not rub them. Instead, rinse them with clean running water and immediately seek medical attention. If left as is, electrolyte can cause eye injury.
5. Delivery of 48V lithium battery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

48v Telecom Lithium Battery With Quick Connector , 80ah LifePO4 Battery 0

6. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.

PAC Battery provides 24 hours customer service. Waiting for your inquiry!
