|Place of Origin:||Guangdong, China (Mainland)|
|Certification:||MSDS, UN38.3, ISO9001, ISO14001|
|Model Number:||30kWh Energy storage battery|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Standard export carton, wooden case, pallet etc.|
|Delivery Time:||15-20 days for samples, 20-30 days for bulk order|
|Payment Terms:||T/T, Western Union, Paypal|
|Supply Ability:||60,000kWh per month|
|Typical Energy:||30kwh||Featurue:||UPS Functional|
|Weight:||360kgs||Feed Into Grid:||Yes|
|Solar Charge Power:||75-140V 16kW||AC Charge:||7.5Kw|
|AC Output:||15kw||Warranty:||2 Years|
home energy storage battery,
energy storage system lithium ion battery

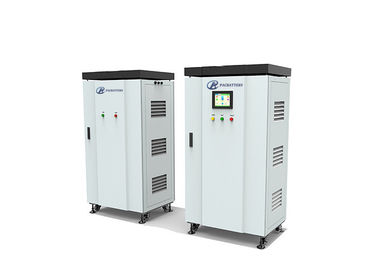

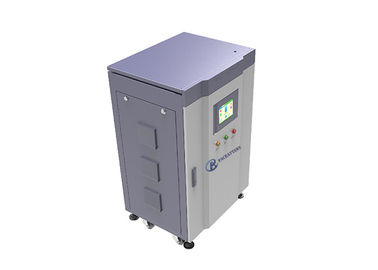

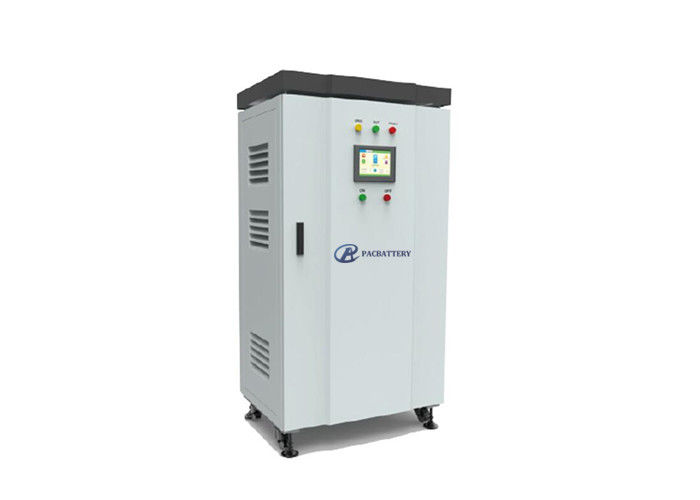

52V Energy Storage Lithium battery 30kwh UPS functional for three phase solar ESS
1. Features of 52V 30kwh Energy Storage Lithium Battery
* More specifics and detailed product features or other custom feature, pls contact with our R&D department, those specifications are subject to communication.
2. Specification of 15kw residential all-in-one lithium battery system
|Model Name MG3215K||Distributed On-off Micro Grid System|
|Continuous Rated Power||15KW|
|Rated Alternating Voltage||Grid Voltage||400VAC|
|Rated AC Frequency||50Hz|
|Total Harmonic Distortion||Grid Current||<4%|
|On/off Grid Switching Time||< 20ms|
|Maximum Inverter Efficency||93.80%|
|Referenced Certification Standard||CE,VDE 0126-1-1|
|Output Wave||Pure Sine Wave|
|Recommended Each line PV Input Power||4000W|
|PV Input||4 lines|
|Each PV Line Panels Start-up Maximum Voltage||145VDC(under definite lowest temperature condition)|
|MPPT Voltage Range||70～120VDC|
|PV Maximum Output Current||320A|
|Charger Maximum Efficiency||97.30%|
|Battery Voltage||Rated Value||52VDC|
|External Communications||RS485(RS232/USB/Internet Optional)|
|Working Environment Temperature||0oC～45oC|
|Working Environment Humidity||10%～90%|
3. How the 15kw UPS functional ESS works?
Installed in an array on your roof, solar panels convert sunlight into electricity.
Built-in Pure Sine Inverter
Built-in MPPT Solar Controller
Built-in Lithium Battery
Built-in BMS(Battery Management System)
4. On Grid Mode of 30kwh ESS battery
All loads’ power will be provided by our system, the unit will use battery storage to power the loads under
premise of normal capacity. If PV electricity is more than the loads need at the same time by charged fully, it will
feedback excess electricity to the Grid.
If the battery is low and the sunshine is bad, the system will firstly assure battery capacity is sufficient and use
the grid electricity to power loads.
5. Delivery of 15kw 3-phase solar battery
6. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
