| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | MSDS, UL1642, ISO9001 etc |
| Model Number: | 24v 200Ah 5kwh |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 5-7 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Features: | EV-grade Lifepo4 Cells, Best Consistency | Typical Voltage: | 25.6 |
|---|---|---|---|
| Compatible Inverter: | Goodwe, Growatt, Schneider, Victron, Etc | Typical Capacity: | 5kWh |
| Battery Application: | Home Solar Energy Storage, ESS | Logo: | Accept Customized Logo On Battery |
| Cycle Life: | More Than 6000 Times | Warranty: | 5-15 Years |
| High Light: | 5kWh PAC Power Wall Battery,ESS PAC Power Wall Battery,RS232 PAC Home Solar Battery |
||

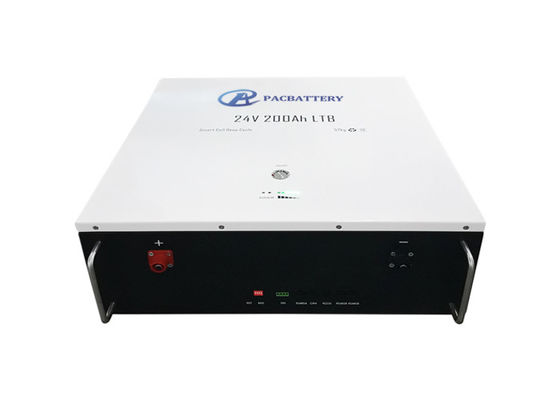

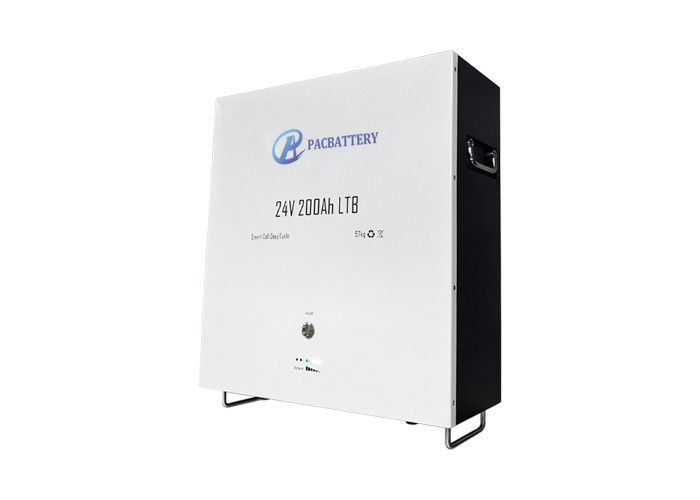

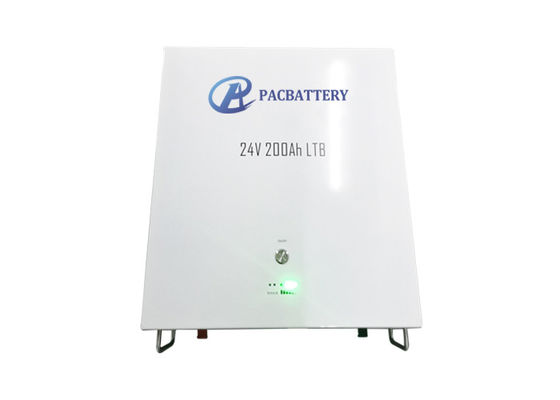

PAC Power wall battery 5kWh 24V for home solar system
1. Advantages of 5kWh 24V home solar power wall battery in hardware:
2. Application of LiFePO4 battery 24v 5kWh
3. PAC Power wall battery is compatible with different brands of inverter: Goodwe, Growatt, InfiniSolar, Luxpower, Deye, Sol-ark, Solax, Victron, Schneider, EAST, SoFar, Kstar, Huawei, etc
4. Key features of PAC Power wall battery 5kWh 24V
5. 5kWh home solar battery 24V 48V with EV-grade cells
| Battery Specifications | |||
| Model No | 5KWH-A161 | 7KWH -A149 | 10KWH-A162 |
| Nominal Parameters | |||
| Voltage | 24V/48V | 48V | 48V |
| Capacity | 200Ah/100Ah | 150Ah | 200Ah |
| Energy | 5.12KwH/4.8KwH | 7.2 KwH | 9.6 KwH |
| Dimensions (L x W x H) | 510 x480 x180mm | 680 x480 x180(220)mm | 680x480x180(220)mm |
| Weight | 57kg | 72kg | 90kg |
| Basic Parameters | |||
| Life time(25°C) | 10 years | ||
| Life cycles(80% DOD, 25°C) | 6000Cycles | ||
| Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | ||
| Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | ||
| Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | ||
| Lithium Battery Standard | IEC62619,UN38.3,ROHS,CE-EMC, UL1642 | ||
| Enclosure protection rating | IP21 | ||
| Electrical Parameters | |||
| Operation voltage | 22.4-28.5/42-53.5 Vdc | 42-53.5 Vdc | 42-53.5 Vdc |
| Max. charging voltage | 28.5V/53.5 Vdc | 53.5 Vdc | 53.5 Vdc |
| Max. charging and discharging current | 120A | 100A | 100A |
| Max Power | 3000w/4800w | 4800W | 4800W |
6. Energy storage battery Delivery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
Contact Person: Ada Wang
Tel: 0086 13652343280
