| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | PAC/OEM |
| Certification: | IEC62133, UL, MSDS, UN38.3 |
| Model Number: | 12v 9Ah backup battery |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton, wooden case, pallet etc. |
| Delivery Time: | 10-15 days for samples, 20-30 days for bulk order |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 60,000kWh per month |
| Nominal Voltage: | 12.8V | Battery Cell: | LiFePO4 26650 Battery |
|---|---|---|---|
| Nominal Capacity: | 9Ah | Weight: | 1.34kgs |
| Discharge Current: | 1C | Waterproof Rate: | IP56 |
| Battery Cycle: | More Than 2000 Times | Case Material: | Plastic |
| Cell Shape: | Cylindrical | Cell Capacity: | 3000mAh |
| High Light: | waterproof lithium battery,lithium battery pack |
||
For more SLA Replacement battery, please find below our battery model list:
SLA replacement battery model list-PAC Tech.pdf

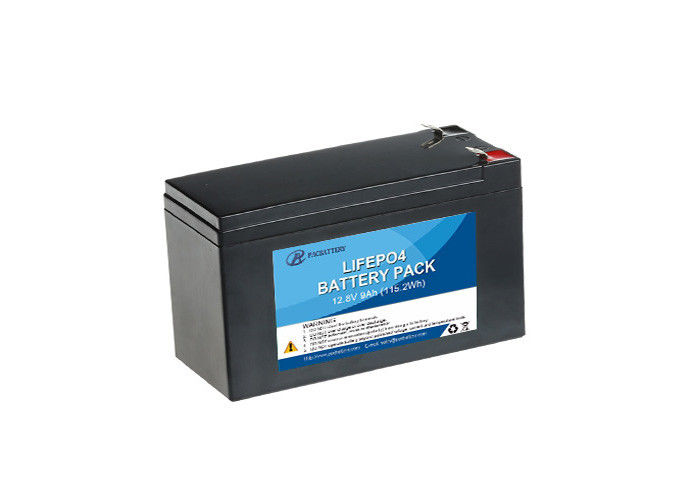

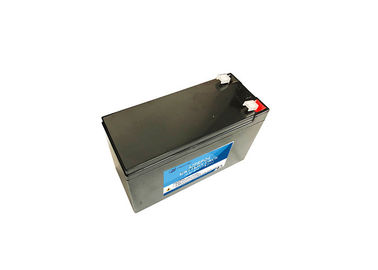

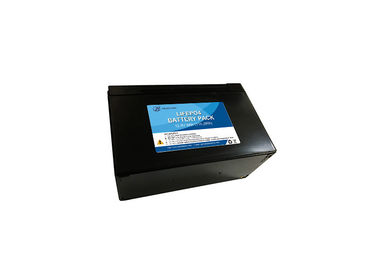

IEC62133 approved 12V lithium battery 9Ah SLA replacement black color for backup system
1. General information
— 12V~48V Lithium battery for energy storage, 12V Lithium battery for SLA replacement.
— Battery pack for Solar street light.
— 18650, 26650, 32650 customized battery pack.
2. Nominal capacity characteristics of 12v 9Ah deep cycle battery
The capacity means the discharge capacity of the cell, which is measured with discharge current 0.2C to cut-off voltage at 2.0V at 20±5℃ rest for 30minutes after the Standard Charge.
3. 4S3P 12.8V 9Ah backup lithium battery Specification(@Battery initial Temp25±5℃)
| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 9Ah@0.2C | |
| Energy | 115.2Wh | |
| Internal Resistance | ≤80mΩ | |
| Cycle Life | more than 2000 Cycles @ 0.2C Charge/Discharge at 100%DOD, End of Life 70% Capacity. | |
| Months Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charge | Charge Voltage | 14.6±0.2V |
| Charge Mode(CC/CV) | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A. | |
| Charger Current | 1.8A | |
| Max.Charge Current | 4.5A | |
| Standard Discharge | Discharge Current | 1.8A |
| Max. Continuous Current | 9A | |
| Max.Pulse Current | 20A(<3S) | |
| Disxcharge Cut-off Voltage | 10.0V | |
| Environmental | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Disxcharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
| Mechanical | Cell & Method | IFR26650 N30, 4S3P |
| Case Material | Plastic ABS | |
| Dimension(L*W*H*TH) | 151*65*94*100mm | |
| Weight | Approx. 1.34kgs | |
| Terminal | F2 |
4. Storage Characteristic of lithium iron phosphate battery
Test the cell initial capacity using 0.2C current at 23±2℃ and record,then charge the cells with 45% capacity, then storage for 3, 6, 12 months respectively at 20±5℃and relative humidity of 45%~75%, then the cell is cycled for 5 times with charge with 0.2Cand discharge with 0.2C at 23±2℃, The maximum discharge capacity (longest discharge time) is recorded.
5. Features of 12v lithium iron phosphate battery
6. Delivery of 12V 9Ah SLA replacement battery
• By Air with Door to Door Service
• By Sea with Door to Door Service
• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.
7. Why Choose PAC Technology Co., Ltd?
Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.
PAC Battery provides 24 hours customer service. Waiting for your inquiry!
