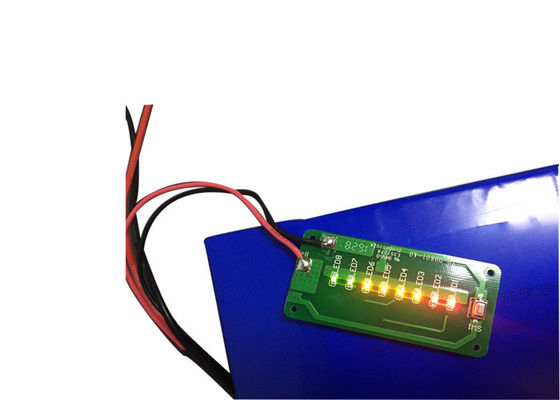

Custom 25.6V 10Ah 1S10P LiFePO4 Solar Street Light Battery with LED Fuel Gauge

Custom 25.6V 10Ah 1S10P LiFePO4 Solar Street Light Battery with LED Fuel Gauge

  • Custom 25.6V 10Ah 1S10P LiFePO4 Solar Street Light Battery with LED Fuel Gauge
  • Custom 25.6V 10Ah 1S10P LiFePO4 Solar Street Light Battery with LED Fuel Gauge
  • Custom 25.6V 10Ah 1S10P LiFePO4 Solar Street Light Battery with LED Fuel Gauge
Custom 25.6V 10Ah 1S10P LiFePO4 Solar Street Light Battery with LED Fuel Gauge
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/ODM
Certification: IEC62133, UN38.3, MSDS
Model Number: 25.6V 10Ah
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: Negotiable
Packaging Details: White inner box, standard export carton
Delivery Time: 15-20 days for samples, 20-25 days for mass production
Payment Terms: T/T
Supply Ability: 2,000pcs/day
Contact Now
Detailed Product Description
Type: Custom LiFePO4 Battery Cell Model: 1185135 8S1P
Nominal Voltage: 25.6V Nominal Capacity: 10Ah
Items: Custom 25.6V 10Ah LiFePO4 Battery Application: Solar Street Light
Keywords: Custom 25.6V 10Ah Battery, Street Light Battery With LED Fuel Gauge Protection: Built-in PCM
Standard Discharge Current: 0.2C Standard Charge Current: 0.2C
Cycle: 2000 Times Warranty: 1 Year

Custom 25.6V 10Ah 1S10P LiFePO4 Solar Street Light Battery with LED Fuel Gauge
25.6V 10Ah LiFePO4 Battery Pack, using prismatic battery cell, 8S1P assembly, widely use for solar street light, UPS/ power back up supply for LED light, golf cart, e-bike.


1.Features of 25.6V 10Ah LiFePO4 Solar Street Light Battery:

Output with high efficiency

Good performance under wide temperature -20-60℃.

Good safety performance

Long cycle life time, over 2000 cycle times(100%DOD).

Fast charging.

Low self-discharge.

Evironment Friendly.


2.Specification of LiFePO4 Solar Street Light Battery:

No. Item General Parameter
1.1 Description 25.6V 10Ah LiFePO4 Battery Pack for LED light energy storage with LED power indicator
1.2 Cell Model Fe11585135
1.3 Typical Capacity 10Ah
1.4 Typical Voltage 25.6V
1.5 End of Charge Voltage 29.2V
1.6 Charge Current 0.2C
1.7 Charging time 5-6 Hours
1.8 End discharge Voltage 16.0V
1.9 Max continuous charge current 5A
2.0 Maximum Continuous Discharging Current 5A
2.1 Over-discharge Voltage Protection cell 2V
2.2 Over-Current Discharge Protection 8-10A
2.3 Short circuit protection With protection
2.4 Dimension 92.0 mm (T)*85.0 mm (W) *160.0mm (L)
2.5 Weight 2000g
2.6 Operation Temperature Range Charge 0~45 C, Discharge -20~60 C


3.PAC Provides Battery Packs for:

Custom 25.6V 10Ah 1S10P LiFePO4 Solar Street Light Battery with LED Fuel Gauge 0

> Wind-Solar Energy Storage system         > Solar street lights                       > Off-grid energy storage

> Household energy storage                       > Telecom backup system            > Mobile base stations
> Emergency backup energy sources         > Uninterruptible power system    > Grid load shifters

> Electric Golf Car > Electric vehicles         > Electric motorcycles

> Electric forklifts > Electric boats, etc...


4.Solar Street Light and Solar Energy Storage System

Custom 25.6V 10Ah 1S10P LiFePO4 Solar Street Light Battery with LED Fuel Gauge 1


5. Solar Street Light Battery Charging mode: constant current, constant voltage

WARNING:
1. DO NOT short the battery terminals.
2. DO NOT over charge or over discharge.
3. DO NOT incinerate, crush or disassemble.
4. DO NOT reverse connections(polarity) from charger to battery.
5. DO NOT operate battery beyond published voltage, current and temperature limits.


6. 12.8V 16.5Ah LiFePO4 Solar Street Light Battery Delivery

• By Air Door to Door Service

• By Sea Door to Door Service

• By Express: EMS, TNT, UPS, FedEx

We can arrange shipment of 12.8V 50Ah LiFePO4 Solar Street Light Battery as your request.


Custom 25.6V 10Ah 1S10P LiFePO4 Solar Street Light Battery with LED Fuel Gauge 2
