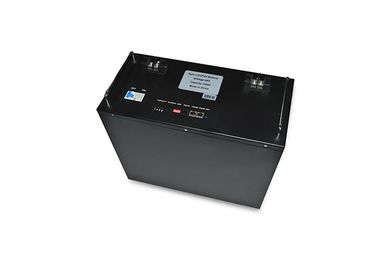

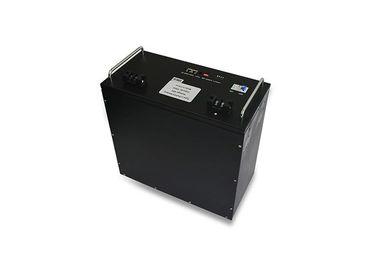

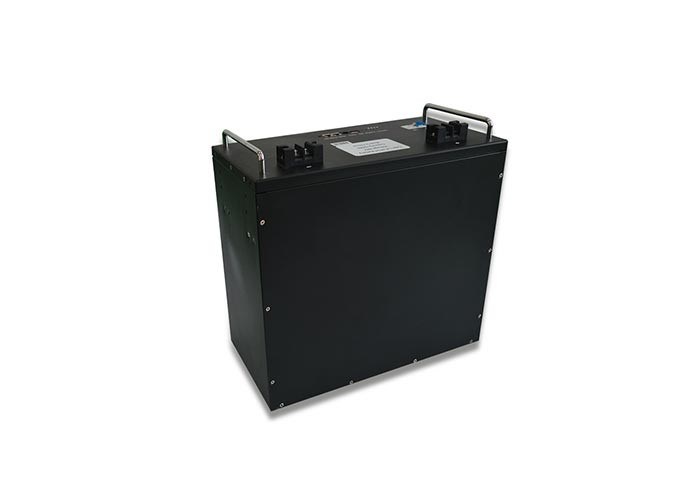

Deep Cycle Telecom Lithium Battery 100Ah 5U Rack 48V For Telecom Application

Deep Cycle Telecom Lithium Battery 100Ah 5U Rack 48V For Telecom Application

  • Deep Cycle Telecom Lithium Battery 100Ah 5U Rack 48V For Telecom Application
  • Deep Cycle Telecom Lithium Battery 100Ah 5U Rack 48V For Telecom Application
  • Deep Cycle Telecom Lithium Battery 100Ah 5U Rack 48V For Telecom Application
Deep Cycle Telecom Lithium Battery 100Ah 5U Rack 48V For Telecom Application
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM/PAC
Certification: CE, ROHS, UN38.3, MSDS etc
Model Number: 5U standard battery 48v 100Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 7-20 days for samples, 10-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Features: Deep Cycle Battery Dimension: 5U Standard Size
Battery Application: Telecom Application Battery Type: Lithium Ion Battery
Typical Voltage: 48V Typical Capacity: 100Ah
Charge Temperature: 0℃ To 45℃ Discharge Temperature: -20℃ To 60℃
High Light:

lithium ion battery for telecom application

,

base station battery

100Ah 5U Rack 48V Deep Cycle Battery , Lithium Ion Battery For Telecom Application:

1. Functions of 100Ah 5U Rack 48V Deep Cycle Battery BMS: Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit ,temperature detecting protection and auotmatically voltage balance function .

Build with high end electronic components (High End IC and MOSFET),simple structure design will let it have more stable quality working performance , Flexible application (it can be used for less series battery by leaving some connection pins at empty status), full set of protection measures let it works well without any infulence from external unexpected accidents.


2. Measurement Apparatus of 100Ah 5U Rack 48V Deep Cycle Battery:

(1) Dimension Measuring Instrument

The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.01mm.

(2)Voltmeter

Standard class specified in the national standard or more sensitive class having inner impedance not less than 10 KΩ/V.

(3)Ammeter

Standard class specified in the national standard or more sensitive class. Total external resistance including ammeter and wire is less than 0.01Ω.

(4)Impedance Meter

Impedance shall be measured by a sinusoidal alternating current method(AC 1kHz LCR meter).



3. Specification of 100Ah 5U Rack 48V Deep Cycle Battery(@Battery initial Temp25±5℃)











Lithium Battery pack








No. Item General Parameter Remark

1
Combination method
15S1P


2

Rated Capacity
Typical 100Ah Standard discharge after Standard charge(package)
Minimum 100Ah
3 Factory Voltage 45.0V-48.0V Mean Operation Voltage

4
Voltage at end of Discharge
37.5-42.0V
Discharge Cut-off Voltage
5 Charging Voltage 54.75V




6



Internal Impedance



≤35mΩ
Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times


7


Standard charge
Constant Current 20A Constant Voltage see No.5 0.02CA cut-off

Charge time : Approx 6 h

8

Standard discharge
Constant current:20A end voltage see NO.4


9
Maximum Continuous Charge Current

100A








Battery pack
No. Item General Parameter Remark


10
Maximum Continuous Discharge Current

100A


11
Operation Temperature Range Charge 0~45℃ 60±25%R.H.
Bare Cell
Discharge -20~55℃



12


Storage Temperature Range
Less than 12 months : -10~35℃

60±25%R.H.
at the shipment state
less than 3 months: -10~45℃
Less than 7 day : -20~65℃
13 Dimensions 442*400*220mm Include case
14 Weight About 55kg Include case



4. Different rate discharge curve of 100Ah 5U Rack 48V Deep Cycle Battery

Deep Cycle Telecom Lithium Battery 100Ah 5U Rack 48V For Telecom Application 0


5. 5U Rack 48V Deep Cycle Battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

Deep Cycle Telecom Lithium Battery 100Ah 5U Rack 48V For Telecom Application 1


6. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.


PAC Battery provides 24 hours customer service. Waiting for your inquiry!
