EV Lifepo4 400v 32Ah 12kwh Home Energy Lithium Battery

EV Lifepo4 400v 32Ah 12kwh Home Energy Lithium Battery

EV Lifepo4 400v 32Ah 12kwh Home Energy Lithium Battery
EV Lifepo4 400v 32Ah 12kwh Home Energy Lithium Battery
EV Lifepo4 400v 32Ah 12kwh Home Energy Lithium Battery
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: MSDS, UN38.3, UL1642, ISO9001 etc
Model Number: 400v 12kwh
Payment & Shipping Terms:
Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Typical Voltage: 400V Battery Type: EV Grade Lifepo4 Battery
Typical Capacity: 32Ah Battery Application: Home Energy Storage, Solar System
Type: Wall Mounted Compatible With: 3 Phase Solar Inverter Of Huawei, Goodwe, Etc
Cycle Life: More Than 4000 Times Warranty: 5-15 Years
High Light:

12kwh Home Energy Lithium Battery


32Ah Home Energy Lithium Battery


Lifepo4 Wall Mounted Lithium Battery

12kwh 400v lithium battery home energy storage

1. Application of solar wall battery 400v 20Ah 8kWh

  • Home solar energy storage system, hospital, school, office space...
  • Solar/wind energy storage system
  • UPS, backup power
  • Telecom

2. Key features of 12kwh 400v home solar battery

  1. Providing uninterrupted power to users. Can satisfy the requirement of users under the extreme environment, such like the power failure caused by earthquake and flood
  2. Wall mounted design with different density, suits all scenarios
  3. Saving electricity for users by peak-shift. Under the price of peak valley, if the power consumption is big in the rash hour, this system can help to save expenditure by storing electricity during the electricity troughs, and using in the peak time.
  4. Three levels management system design delivers highest reliablity
  5. Using EV-grade battery cells to ensure the best consistency

3. 8kWh 12kwh home energy storage lithium battery specification

Battery Specifications
Model No 8kwh 12kwh
Nominal Parameters
Voltage 400V 400V
Capacity 20Ah 30Ah
Energy 8KwH 12 KwH
Dimensions (L x W x H) 810 x585 x195mm  810 x585 x195mm
Weight 80kg 120kg
Basic Parameters
Life time(25°C) 10 years
Life cycles(80% DOD, 25°C) 4000Cycles
Storage time / temperature 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature -20°C to 60°C @60+/-25% Relative Humidity
Storage temperature 0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard IEC62619,UN38.3,ROHS,CE-EMC, UL1642
Enclosure protection rating IP21
Electrical Parameters
Operation voltage 312-456 Vdc 312-456 Vdc
Max. charging voltage 456 Vdc 456 Vdc
Max. charging and discharging current 20A 30A
Max Power 8000w 8000W


4. Description of 400V home solar power wall battery

The home solar battery is a 8kWh, 12kwh and 400V home battery designed for daily cycle use that re-charges with electricity generated from PV solar panels or utility grid. PAC Home Battery can provide safe power on-demand, or reliable backup if the power-grid goes down. PAC Home Battery is a wall mounted, rechargeable deep cycle LiFePO4 battery that is guaranteed for 5 years. PAC 400V high-voltage home storage battery is compatible with many AC inverters available today including Goodwe, Huawei, SolarEdge, Solax, etc.

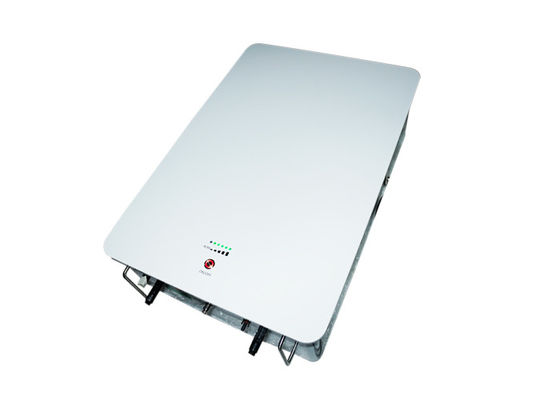

5. Case structure of 400V high voltage solar wall battery
EV Lifepo4 400v 32Ah 12kwh Home Energy Lithium Battery 0


6. Internal structure of Solar wall 400V lithium battery

EV Lifepo4 400v 32Ah 12kwh Home Energy Lithium Battery 1

7. Energy storage battery Delivery

• By Air with Door to Door Service

• By Sea with Door to Door Service

• By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

EV Lifepo4 400v 32Ah 12kwh Home Energy Lithium Battery 2

8. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.

PAC Battery provides 24 hours customer service. Waiting for your inquiry!
