Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: PAC/OEM
Certification: UL1642, MSDS, ISO9001
Model Number: Powerwall 24v 200Ah
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 15-20 days for samples, 20-30 days for bulk order
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 60,000kWh per month
Contact Now
Detailed Product Description
Typical Energy: 5kwh Typical Capacity: 200Ah @ 25.6Vdc
Weight: 57kgs Battery Application: Home Solar Battery, Home Energy Storage System
Logo: Accept Customized Logo On Battery Design: On/Off Button, LED Capacity Indicators
Warranty: 5 Years Dimension: 510*485*180mm

Home Solar Battery 24v 200Ah Lithium battery 5kWh LiFePO4 powerwall for energy storeage

1. Key features of 5kWh Home solar battery

  • More than 6,000 cycles/10 years service life
  • Simple and elegant appearance design
  • Using EV-grade Lifepo4 cells to ensure the best consistency and longer cycle life
  • Wall-mounted, convenient installation
  • Integrated state-of-the-art BMS to manage and monitor battery information including voltage, current and temperature as well as balance cell charging/discharging rates
  • High safety and reliability

2. Specification of 24V 200Ah 5kWh Home solar battery

NO Items Description
Normal Specification
1 Nominal Voltage 25.6V (LFP-8S)
2 Normal Capacity 200Ah
3 Internal Resistance ≤50mΩ @1kHz AC
Standard Charge
4 Battery operation temperature range @charging 0~45℃
5 Normal charge voltage 29.2±0.2V
6 Recommended float charge voltage(for Standby use) 28.8±0.2V
7 Allowed MAX charge current 100A@Battery initial Temp 25±5℃
8 Recommended charge current ≤100A
Standard Discharge
9 Battery operation temperature range @discharging -20~55℃
10 Factory voltage 25.8~26.4V(40%-60%)
11 Allowed discharge current 120A
12 Pulse discharge current 300A withstand 3s
13 Discharge cut-off voltage 20~21.5V
Mechanical Characteristics
14 Dimension Length 510±2mm
Width 485±2mm
Height 180±2mm
15 Weight About: 57±0.5Kg
16 Storage Temperature & Humidity Range Short: within one month -20~+ 55℃, 5~75%RH
Long term: above one month -10~+45℃, 5~75%RH
17 Self-discharge rate Residual capacity ≤2% per month;
Reversible capacity ≤1%per month;

3. Safety precautions during operation of 24v 200Ah powerwall lithium battery

  • If the battery system needs to be moved or repaired, the power must be cut off first and the battery is completely shutdown;
  • It is prohibited to connect the battery with different type of battery;
  • It is prohibited to put the batteries working with faulty or incompatible inverter;
  • In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited;
  • Please do not open, repair or disassemble the battery. We do not undertake any consequences or related responsibility due to violation of safety operation or violating of design, production and equipment safety standards.


4. Connectors of Home solar 5kWh Powerwall battery

  1. Charge/Discharge connectors: to connect the positive pole (+) and negative pole (-) from the battery to the inverter via DC isolator.
  2. RS485: Active communication portal between battery and inverter.
  3. USB To Rs232: to get dynamic monitoring data of the battery from upper computer.
  4. Address: Reserved Address portal for multiple parallel connections.

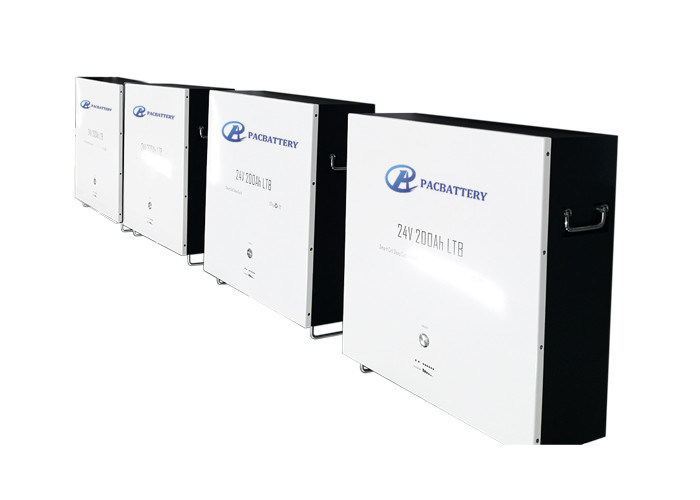

5. Appearance design of 24v 5kWh powerwall battery
Home Solar battery 24v 200Ah 0


6. Communication connection of home ESS 5Kwh Powerwall Battery
There needs to be cascade communication with master level and slave level settings. The master level and slave level has different address.
Home Solar battery 24v 200Ah 1

7. Delivery of Home solar lithium battery

  • ​By Air with Door to Door Service
  • By Sea with Door to Door Service
  • By Express with Door to Door Service: DHL, TNT, UPS, FedEx etc.

Home Solar battery 24v 200Ah 2


8. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- PAC Battery members to proactively take responsibility, we always offer the best Battery Solution to our customers.

PAC Battery provides 24 hours customer service. Waiting for your inquiry!
